选择器开关
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 电路 | 位置数量 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 安装类型 | 端接样式 | 面板开孔尺寸 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0033.4505SWITCH SELECT 2P SER 6.3A 250V |
98 | - |
|
数据表 |
SWA | Bulk | Active | Line Voltage Selector | Series, Parallel Connections | 2 | On-On | 6.3A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 12.70mm Dia | IP40 | Marking: 220-240 | -40°C ~ 85°C |
|
|
0033.4515SWITCH SELECT 2P SER 6.3A 250V |
92 | - |
|
数据表 |
SWA | Bulk | Active | Line Voltage Selector | Series, Parallel Connections | 2 | On-On | 6.3A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 12.70mm Dia | IP40 | Marking: 120-230 | -40°C ~ 85°C |
|

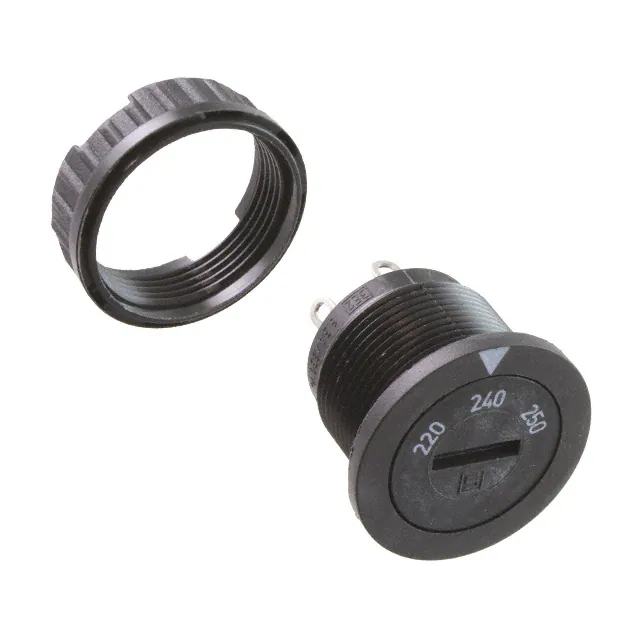

0033.4006SWITCH SELECT 3POS SP3T 10A 250V |
50 | - |
|
数据表 |
SWM | Bulk | Active | Line Voltage Selector | SP3T | 3 | On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 14.10mm Dia | IP40 | Marking: 220-240-250 | -40°C ~ 85°C |
|

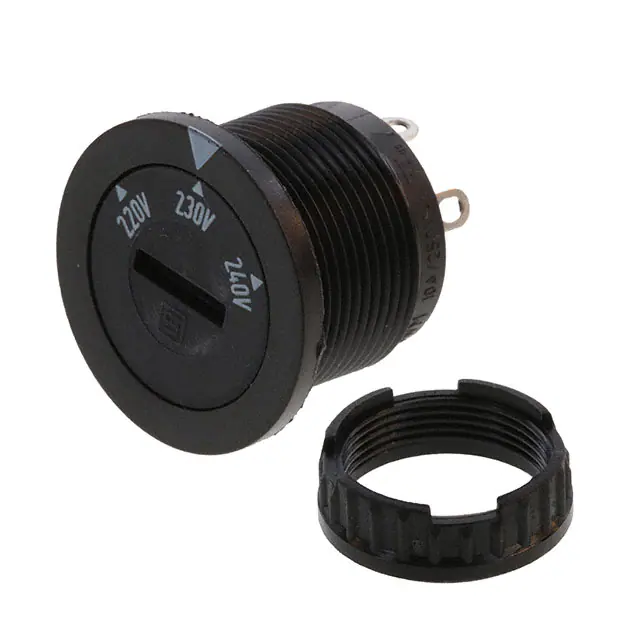

0033.4028SWITCH SELECT 3POS SP3T 10A 250V |
39 | - |
|
数据表 |
SWM | Bulk | Active | Line Voltage Selector | SP3T | 3 | On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 14.10mm Dia | IP40 | Marking: 220V-230V-240V | -40°C ~ 85°C |
|
0033.4001SWITCH SELECT 3POS SP3T 10A 250V |
23 | - |
|
数据表 |
SWM | Bulk | Active | Line Voltage Selector | SP3T | 3 | On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 14.10mm Dia | IP40 | Marking: 110-150-220 | -40°C ~ 85°C |
|

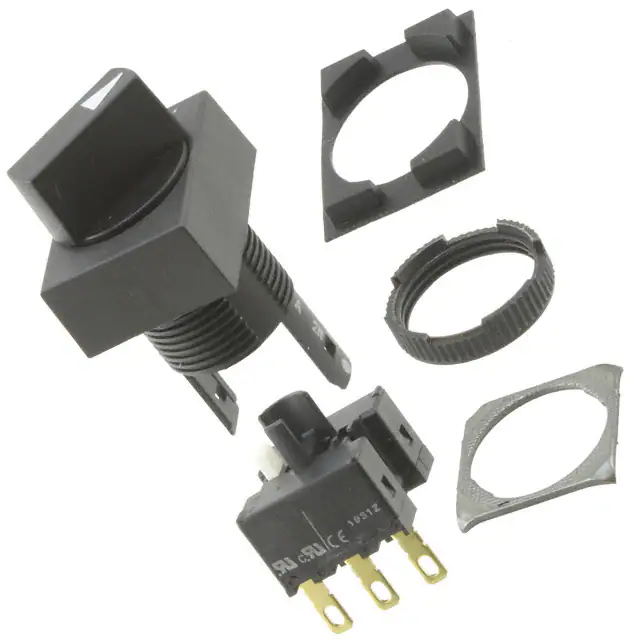

A165S-J2A-1SWITCH SELECT 2POS SPDT 5A 125V |
11 | - |
|
数据表 |
A165S | Bulk | Active | Standard | SPDT | 2 | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Non-Illuminated | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65 - Dust Tight, Oil and Water Resistant | Bezel - Rectangular | -10°C ~ 55°C |
|
0033.3805SWITCH SELECT 6P SERIES 10A 250V |
40 | - |
|
数据表 |
SWZ | Bulk | Active | Line Voltage Selector | Series, Parallel Connections | 6 | On-On-On-On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Through Hole | PC Pin | - | IP40 | Marking: 140-200-120-240-100-220 | -40°C ~ 85°C |
|
0033.3814SWITCH SELECT 6P SERIES 10A 250V |
25 | - |
|
数据表 |
SWZ | Bulk | Active | Line Voltage Selector | Series, Parallel Connections | 6 | On-On-On-On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Through Hole | PC Pin | - | IP40 | No Marking | -40°C ~ 85°C |
|
|
0033.3522SWITCH SELECT 6P SERIES 10A 250V |
25 | - |
|
数据表 |
SWZ | Bulk | Active | Line Voltage Selector | Series, Parallel Connections | 6 | On-On-On-On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 30.00mm Dia | IP40 | Marking: 110-220 | -40°C ~ 85°C |
|
|
PVK4S22B0SS-A11SWITCH SELECTOR 2POS DPDT 2A 24V |
33 | - |
|
数据表 |
PVK4 | Box | Active | Standard | DPDT | 2 | On-Mom | 2A (DC) | - | 24 V | Illuminated | LED, Red | - | Panel Mount | Solder Lug | Circular - 19.00mm Dia | IP40 | - | -20°C ~ 55°C |
|
0033.1134SWITCH SELECT 6POS SP6T 10A 250V |
67 | - |
|
数据表 |
SWP | Bulk | Active | Line Voltage Selector | SP6T | 6 | On-On-On-On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 30.00mm Dia | IP40 | Marking: 110V-220V-230V | -40°C ~ 85°C |
|
|
0033.1110SWITCH SELECT 6POS SP6T 10A 250V |
100 | - |
|
数据表 |
SWP | Bulk | Active | Line Voltage Selector | SP6T | 6 | On-On-On-On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 30.00mm Dia | IP40 | Marking: 100V-115V-200V-220V-230V-240V | -40°C ~ 85°C |
|
|
0033.1119SWITCH SELECT 6POS SP6T 10A 250V |
99 | - |
|
数据表 |
SWP | Bulk | Active | Line Voltage Selector | SP6T | 6 | On-On-On-On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 30.00mm Dia | IP40 | Marking: 100V-110V-120V-200V-220V-240V | -40°C ~ 85°C |
|
|
0033.1125SWITCH SELECT 6POS SP6T 10A 250V |
88 | - |
|
数据表 |
SWP | Bulk | Active | Line Voltage Selector | SP6T | 6 | On-On-On-On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 30.00mm Dia | IP40 | Marking: 110V-115V-130V-200V-230V | -40°C ~ 85°C |
|
0033.1118SWITCH SELECT 6POS SP6T 10A 250V |
70 | - |
|
数据表 |
SWP | Bulk | Active | Line Voltage Selector | SP6T | 6 | On-On-On-On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 30.00mm Dia | IP40 | Marking: 100V-115V-220V-240V | -40°C ~ 85°C |
|
08080300SWITCH SELECTOR 150A 24V |
30 | - |
|
数据表 |
- | Box | Active | Battery Disconnect | - | - | - | 150A (DC) | - | 24 V | Non-Illuminated | - | - | Panel Mount | Stud | - | IP65 - Dust Tight, Water Resistant | - | -30°C ~ 60°C |
|
A22NW-3BM-TAA-G101-ACSWITCH SELECT 3POS DPST 10A 120V |
11 | - |
|
数据表 |
A22NW | Bulk | Active | Standard | DPST-NO | 3 | On-Off-Off, Off-Off-On | 10A (AC), 8A (DC) | 120 V | 24 V | Illuminated | LED, Blue | 24 VAC/DC | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66 - Dust Tight, Water Resistant | Bezel - Round, Blue Knob | -25°C ~ 55°C |
|
|
08080400SWITCH SELECT 2POS SPST 150A 24V |
22 | - |
|
数据表 |
- | Box | Active | Battery Disconnect | SPST | 2 | On-Off | 150A (DC) | - | 24 V | Non-Illuminated | - | - | Panel Mount | Stud | - | IP65 - Dust Tight, Water Resistant | - | -40°C ~ 85°C |
|
08099100SWITCH SELECTOR SPST 250A 24V |
9 | - |
|
数据表 |
- | Box | Active | Battery Disconnect | SPST | - | - | 250A (DC) | - | 24 V | Non-Illuminated | - | - | Panel Mount | Stud | Circular - 30.50mm Dia | IP65 - Dust Tight, Water Resistant | - | -40°C ~ 85°C |
|
XB5FD41SWITCH SELECT 2POS SPST 6A 120V |
10 | - |
|
数据表 |
XB5F | Box | Active | Standard | SPST-NO | 2 | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 30.50mm Dia | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 70°C |
