选择器开关
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 电路 | 位置数量 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 安装类型 | 端接样式 | 面板开孔尺寸 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0033.4501SWITCH SELECT 2P SER 6.3A 250V |
886 | - |
|
数据表 |
SWA | Bulk | Active | Line Voltage Selector | Series, Parallel Connections | 2 | On-On | 6.3A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 12.70mm Dia | IP40 | Marking: 110-220 | -40°C ~ 85°C |
|
|
0033.4504SWITCH SELECT 2P SER 6.3A 250V |
476 | - |
|
数据表 |
SWA | Bulk | Active | Line Voltage Selector | Series, Parallel Connections | 2 | On-On | 6.3A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 12.70mm Dia | IP40 | Marking: 115-230 | -40°C ~ 85°C |
|
A22NS-2BM-NBA-G100-NNSWITCH SELECT 2POS SPST 10A 120V |
1,250 | - |
|
数据表 |
A22NS | Bulk | Active | Standard | SPST-NO | 2 | Off-On | 10A (AC/DC) | 120 V | 24 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66 - Dust Tight, Water Resistant | Bezel - Round, Black Knob | -25°C ~ 70°C |
|
700-A-BLSWITCH SELECT 4POS SP3T 4A 125V |
209 | - |
|
数据表 |
700 | Box | Active | Standard | SP3T | 4 | Off-On-On-On | 4A (AC), 1A (DC) | 125 V | 125 V | Non-Illuminated | - | - | Panel Mount | Quick Connect - 0.250" (6.3mm) | Circular - 11.88mm Dia | - | Bezel - Round, Long Lever | - |
|
BDA10-RASWITCH SELECTOR |
183 | - |
|
数据表 |
BD | Bulk | Active | Battery Disconnect | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
A165S-T2M-2SWITCH SELECT 2POS DPDT 5A 125V |
142 | - |
|
数据表 |
A165S | Bulk | Active | Standard | DPDT | 2 | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Non-Illuminated | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65 - Dust Tight, Oil and Water Resistant | Bezel - Round | -10°C ~ 55°C |
|
880064SWITCH SELECTOR |
49 | - |
|
数据表 |
SR | Bulk | Active | Battery Disconnect | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
75920SWITCH SELECTOR 2POS |
115 | - |
|
数据表 |
- | Bulk | Active | Battery Disconnect | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
880175-0001SWITCH SELECT 2POS DPST 500A 32V |
169 | - |
|
数据表 |
TR | Bulk | Active | Battery Disconnect | DPST | 2 | Off-On | 500A (DC) | - | 32 V | Non-Illuminated | - | - | Chassis Mount | Stud | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -50°C ~ 85°C |
|
880175SWITCH SELECT 2POS DPST 500A 32V |
101 | - |
|
数据表 |
TR | Bulk | Active | Battery Disconnect | DPST | 2 | Off-On | 500A (DC) | - | 32 V | Non-Illuminated | - | - | Chassis Mount | Stud | - | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -50°C ~ 85°C |
|
35-314-131-S-901SWITCH SELECT 2POS SPST 300A 20V |
80 | - |
|
数据表 |
35 | Box | Active | Battery Disconnect | SPST | 2 | On-Off | 300A (AC/DC) | 20 V | 32 V | Non-Illuminated | - | - | Panel Mount | Stud | - | IP67 - Dust Tight, Waterproof | Long Lever | -40°C ~ 85°C |
|
0033.4518SWITCH SELECT 2P SER 6.3A 250V |
492 | - |
|
数据表 |
SWA | Bulk | Active | Line Voltage Selector | Series, Parallel Connections | 2 | On-On | 6.3A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 12.70mm Dia | IP40 | Marking: 0-1 | -40°C ~ 85°C |
|

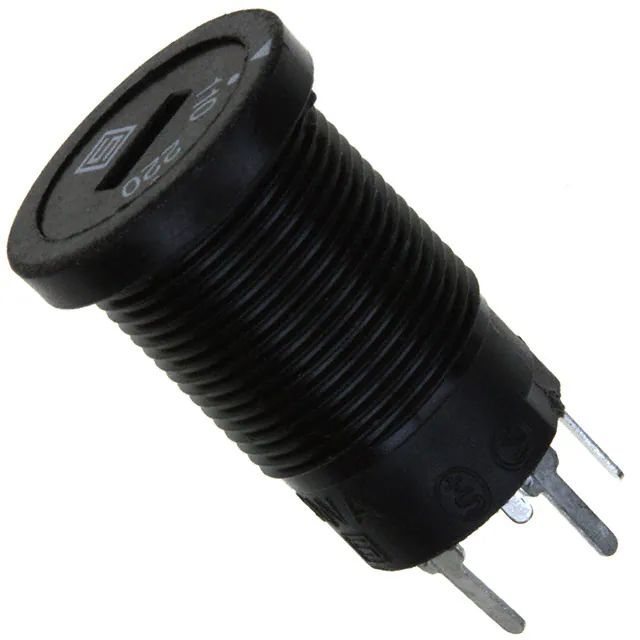

0033.4601SWITCH SELECT 2P SER 6.3A 250V |
489 | - |
|
数据表 |
SWA | Bulk | Active | Line Voltage Selector | Series, Parallel Connections | 2 | On-On | 6.3A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | PC Pin | - | IP40 | Marking: 110-220 | -40°C ~ 85°C |
|

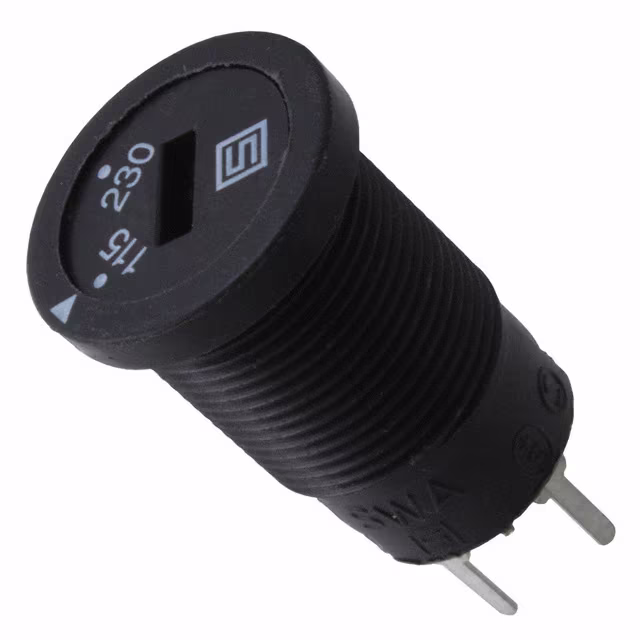

0033.4604SWITCH SELECT 2P SER 6.3A 250V |
188 | - |
|
数据表 |
SWA | Bulk | Active | Line Voltage Selector | Series, Parallel Connections | 2 | On-On | 6.3A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | PC Pin | - | IP40 | Marking: 115-230 | -40°C ~ 85°C |
|
0033.4032SWITCH SELECT 3POS SP3T 10A 250V |
269 | - |
|
数据表 |
SWM | Bulk | Active | Line Voltage Selector | SP3T | 3 | On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 14.10mm Dia | IP40 | Marking: 4-8-16 | -40°C ~ 85°C |
|
HW1S-2TF20SWITCH SELECT 2POS DPST 10A 110V |
191 | - |
|
数据表 |
HW | Bulk | Active | Standard | DPST-NO | 2 | Off-On | 10A (AC), 8A (DC) | 110 V | 24 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 50°C |
|
75226SWITCH SELECTOR 3POS 10A 12V |
120 | - |
|
数据表 |
- | Bulk | Active | Standard | - | 3 | Off-On-On | 10A (DC) | - | 12 V | Non-Illuminated | - | - | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | - | - | - |
|
95610SWITCH SELECTOR 3POS 20A 12V |
93 | - |
|
数据表 |
95 | Bulk | Active | Standard | - | 3 | Off-On-Mom | 20A (DC) | - | 12 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | - | - | - | - |
|

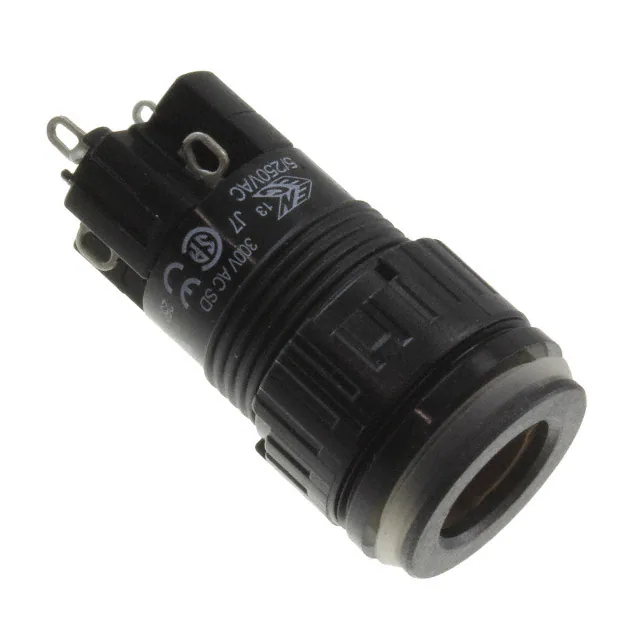

52-271.025SWITCH SELECT 2POS DPST 5A 250V |
38 | - |
|
数据表 |
51 | Bulk | Active | Standard | DPST-NO/NC | 2 | On-Off, Off-On | 5A (AC) | 250 V | - | Illuminated | - | - | Panel Mount | Solder Lug | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 55°C |
|

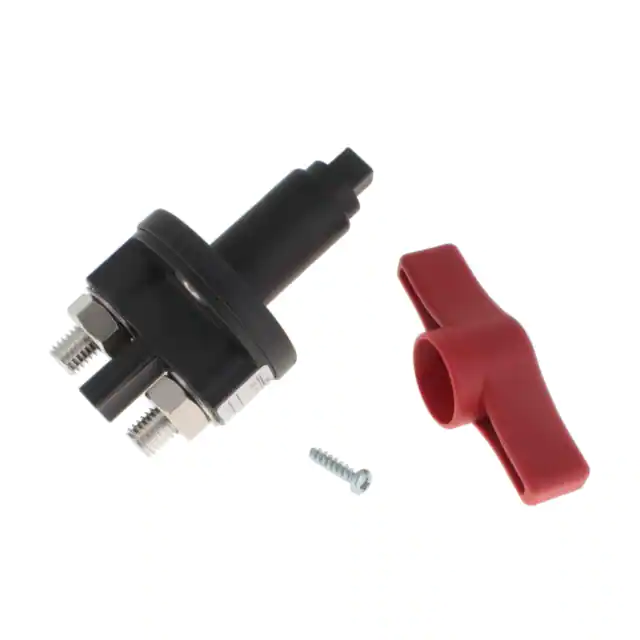

35-210-141-RSWITCH SELECT 2POS SPST 200A 20V |
60 | - |
|
数据表 |
35 | Box | Active | Battery Disconnect | SPST | 2 | On-Off | 200A (AC/DC) | 20 V | 32 V | Non-Illuminated | - | - | Panel Mount | Stud | - | IP67 - Dust Tight, Waterproof | Long Lever | -40°C ~ 85°C |
