选择器开关
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 电路 | 位置数量 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 安装类型 | 端接样式 | 面板开孔尺寸 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A165S-T3M-2SWITCH SELECT 3POS DPDT 5A 125V |
214 | - |
|
数据表 |
A165S | Bulk | Active | Standard | DPDT | 3 | On-On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Non-Illuminated | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65 - Dust Tight, Oil and Water Resistant | Bezel - Round | -10°C ~ 55°C |
|
880154SWITCH SELECTOR 1POS 600A 32V |
37 | - |
|
数据表 |
SR | Box | Active | Battery Disconnect | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
2484-06SWITCH SELECT 2POS SPST 175A 36V |
37 | - |
|
数据表 |
2484 | Bulk | Active | Battery Disconnect | SPST | 2 | Off-On | 175A (DC) | - | 36 V | Non-Illuminated | - | - | Panel Mount | Stud | - | - | - | - |
|
52-571.F22ASWITCH SELECT 3POS 4PST 5A 250V |
27 | - |
|
数据表 |
51 | Bulk | Active | Standard | 4PST-2NO/2NC | 3 | On-Off-On | 5A (AC) | 250 V | - | Illuminated | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 55°C |
|
3SU11502BM601LA0SWITCH SELECT 3POS 4PST 10A 500V |
55 | - |
|
数据表 |
3SU1 | Bulk | Active | Standard | 4PST-2NO/2NC | 3 | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -25°C ~ 70°C |
|
0033.4514SWITCH SELECT 2P SER 6.3A 250V |
831 | - |
|
数据表 |
SWA | Bulk | Active | Line Voltage Selector | Series, Parallel Connections | 2 | On-On | 6.3A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 12.70mm Dia | IP40 | No Marking | -40°C ~ 85°C |
|
0033.4503SWITCH SELECT 2P SER 6.3A 250V |
198 | - |
|
数据表 |
SWA | Bulk | Active | Line Voltage Selector | Series, Parallel Connections | 2 | On-On | 6.3A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 12.70mm Dia | IP40 | Marking: 120-240 | -40°C ~ 85°C |
|
0033.4008SWITCH SELECT 3POS SP3T 10A 250V |
710 | - |
|
数据表 |
SWM | Bulk | Active | Line Voltage Selector | SP3T | 3 | On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 14.10mm Dia | IP40 | Marking: 100-115-230 | -40°C ~ 85°C |
|

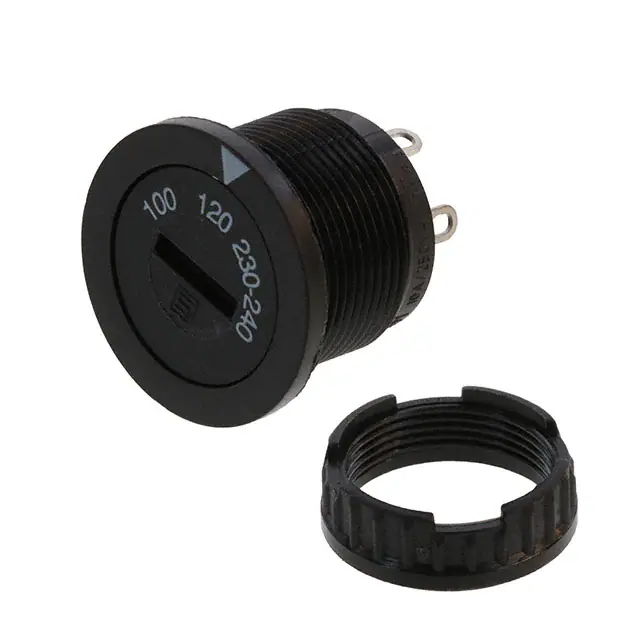

0033.4057SWITCH SELECT 3POS SP3T 10A 250V |
227 | - |
|
数据表 |
SWM | Bulk | Active | Line Voltage Selector | SP3T | 3 | On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 14.10mm Dia | IP40 | Marking: 100-120-230/240 | -40°C ~ 85°C |
|
0033.4208SWITCH SELECT 3POS SP3T 10A 250V |
186 | - |
|
数据表 |
SWM | Bulk | Active | Line Voltage Selector | SP3T | 3 | On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | PC Pin | - | IP40 | Marking: 100-115-230 | -40°C ~ 85°C |
|
0033.4029SWITCH SELECT 3POS SP3T 10A 250V |
175 | - |
|
数据表 |
SWM | Bulk | Active | Line Voltage Selector | SP3T | 3 | On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 14.10mm Dia | IP40 | - | -40°C ~ 85°C |
|
0033.3505SWITCH SELECT 6P SERIES 10A 250V |
154 | - |
|
数据表 |
SWZ | Bulk | Active | Line Voltage Selector | Series, Parallel Connections | 6 | On-On-On-On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 30.00mm Dia | IP40 | Marking: 140-200-120-240-100-220 | -40°C ~ 85°C |
|
08098780SWITCH SELECTOR |
118 | - |
|
数据表 |
- | Bulk | Active | Battery Disconnect | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
A165W-A2MG-24D-1SWITCH SELECT 2POS SPDT 5A 125V |
168 | - |
|
数据表 |
A165W | Bulk | Active | Standard | SPDT | 2 | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Illuminated | LED, Green | 24 VDC | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65 - Dust Tight, Oil and Water Resistant | Bezel - Square | -10°C ~ 55°C |
|
DS-221-RT1SWITCH SELECTOR 2POS DPDT 5A 20V |
59 | - |
|
数据表 |
DS | Box | Active | Standard | DPDT | 2 | On-On | 5A (AC/DC) | 20 V | 32 V | Non-Illuminated | - | - | Panel Mount | Connector | Circular - 30.50mm Dia | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | -40°C ~ 90°C |
|
A165S-A3M-2SWITCH SELECT 3POS DPDT 5A 125V |
47 | - |
|
数据表 |
A165S | Bulk | Active | Standard | DPDT | 3 | On-On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Non-Illuminated | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65 - Dust Tight, Oil and Water Resistant | Bezel - Square | -10°C ~ 55°C |
|
|
MC241A00SWITCH SELECT 4POS SPST 15A 12V |
27 | - |
|
数据表 |
MC2 | Bag | Active | Standard | SPST | 4 | Off-Mom | 15A (DC) | - | 12 V | Non-Illuminated | - | - | Panel Mount | Connector | Circular - 52.00mm Dia | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|

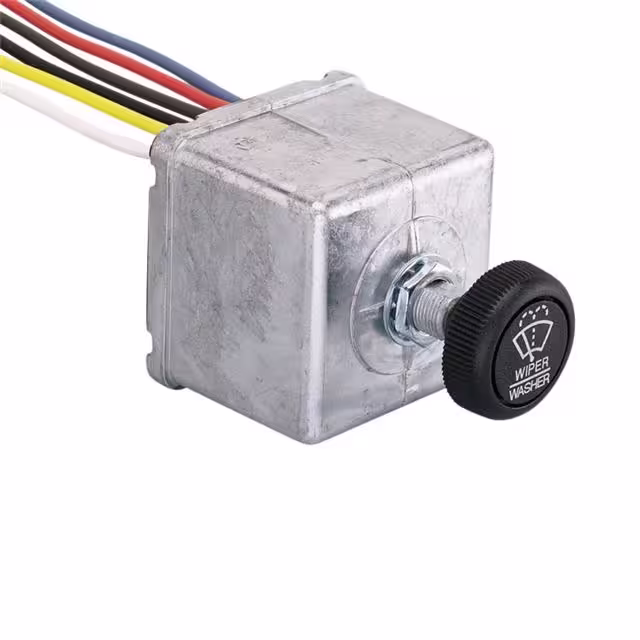

75600-04SWITCH SELECTOR 5POS 15A 16V |
32 | - |
|
数据表 |
- | Bulk | Active | Standard | - | 5 | Off-On-On-On-On | 15A (DC) | - | 16 V | Non-Illuminated | - | - | Panel Mount | Wire Leads | - | - | - | - |
|

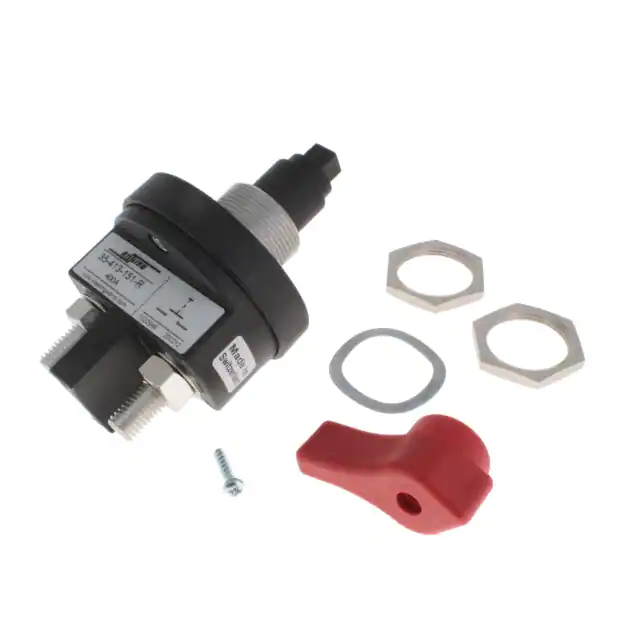

35-413-151-RSWITCH SELECT 2POS DPST 400A 20V |
171 | - |
|
数据表 |
35 | Box | Active | Battery Disconnect | DPST | 2 | On-Off | 400A (AC/DC) | 20 V | 32 V | Non-Illuminated | - | - | Panel Mount | Stud | - | IP67 - Dust Tight, Waterproof | Long Lever | -40°C ~ 85°C |
|
|
0033.4615SWITCH SELECT 2P SER 6.3A 250V |
130 | - |
|
数据表 |
SWA | Bulk | Active | Line Voltage Selector | Series, Parallel Connections | 2 | On-On | 6.3A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | PC Pin | - | IP40 | Marking: 120-230 | -40°C ~ 85°C |
