扬声器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 频率范围 | 频率 - 自谐振 | 阻抗 | 效率 - dBA | 效率 - 测试 | 效率 - 类型 | 额定功率 | 功率 - 最大值 | 端口位置 | 形状 | 材料 - 锥体 | 材料 - 磁体 | 防护等级 | 额定值 | 端接方式 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

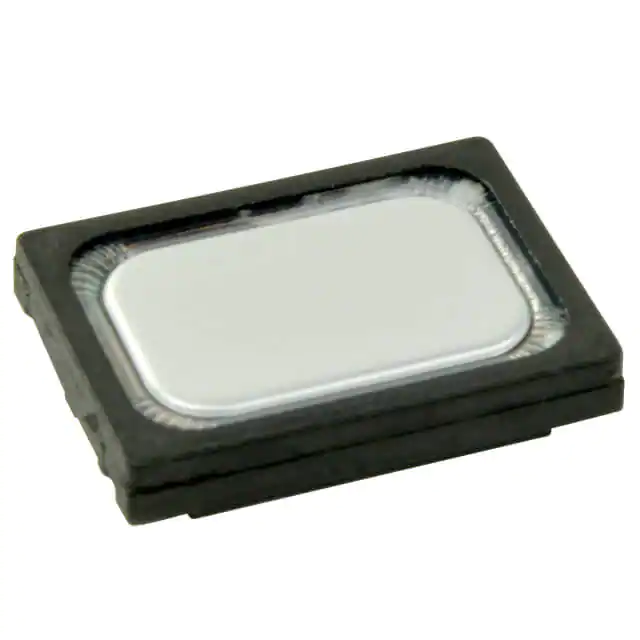

CMS-151125-076SP-67SPEAKER 6OHM 700MW TOP PT 92.5DB |
169 | - |
|
数据表 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 6 Ohms | 92.50 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | |
|

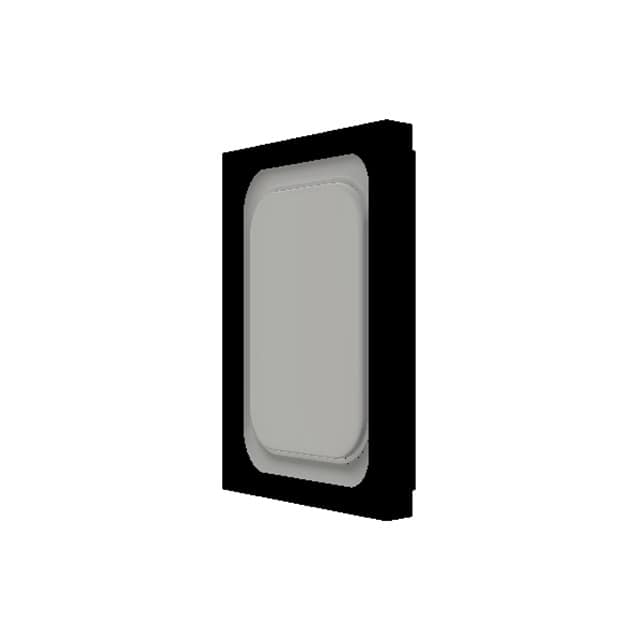

AS01808MS-SP18-WP-RSPEAKER 8OHM 500MW TOP PORT 88DB |
109 | - |
|
数据表 |
AS | Tray | Active | Magnetic | Receiver | 500 Hz ~ 20 kHz | 850Hz | 8 Ohms | 88.00 | - | Sensitivity | 500 mW | 1 W | Top | Rectangular | Polyimide (PI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.709" L x 0.512" W (18.00mm x 13.00mm) | |
|
CMS-16093-078L100ASPEAKER 8OHM 700MW TOP PORT 91DB |
312 | - |
|
数据表 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 0.630" L x 0.354" W (16.00mm x 9.00mm) | |
|
CDS-4051-32-SPSPEAKR 32OHM 250MW TOP PORT 92DB |
643 | - |
|
数据表 |
CDS | Box | Active | Magnetic | General Purpose | 480 Hz ~ 6 kHz | 600Hz | 32 Ohms | 92.00 | 100mW/100mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.575" Dia (40.00mm) | |
|

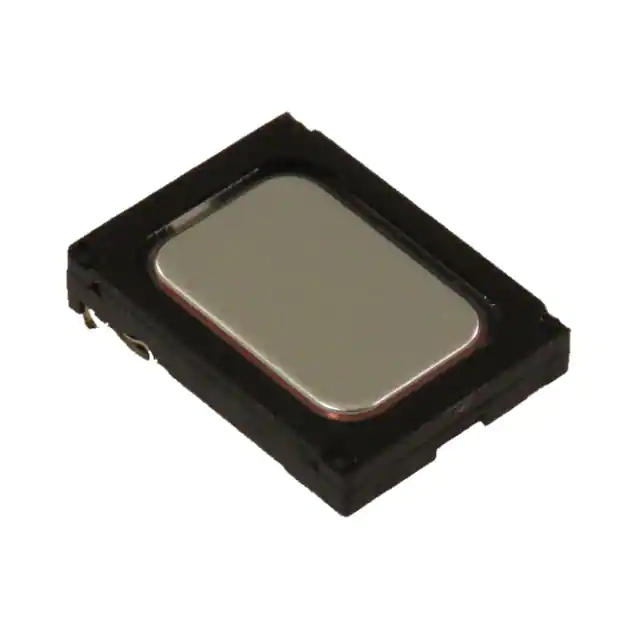

SM150808-9SPEAKER 8OHM 700MW TOP PORT 92DB |
208 | - |
|
数据表 |
- | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 10 kHz | 850Hz | 8 Ohms | 92.00 | 100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | - | - | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | |
|
CMS-16093-078S-67SPEAKER 8OHM 700MW TOP PORT 91DB |
2,226 | - |
|
数据表 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) | |
|
SP-1609S-1SPEAKER 8OHM 500MW TOP PORT 82DB |
938 | - |
|
数据表 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 3.4 kHz | 850Hz | 8 Ohms | 82.00 | 100mW | Sound Pressure Level (SPL) | 500 mW | 700 mW | Top | Rectangular | - | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) | |
|
SM260608-1SPEAKER 8OHM 500MW TOP PORT |
456 | - |
|
数据表 |
- | Tray | Active | Magnetic | General Purpose | 660 Hz ~ 5 kHz | - | 8 Ohms | - | 100mm | Sound Pressure Level (SPL) | 500 mW | 600 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.024" Dia (26.00mm) | |
|
CMS-15113-078S-67SPEAKER 8OHM 700MW TOP PORT 91DB |
308 | - |
|
数据表 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | |
|

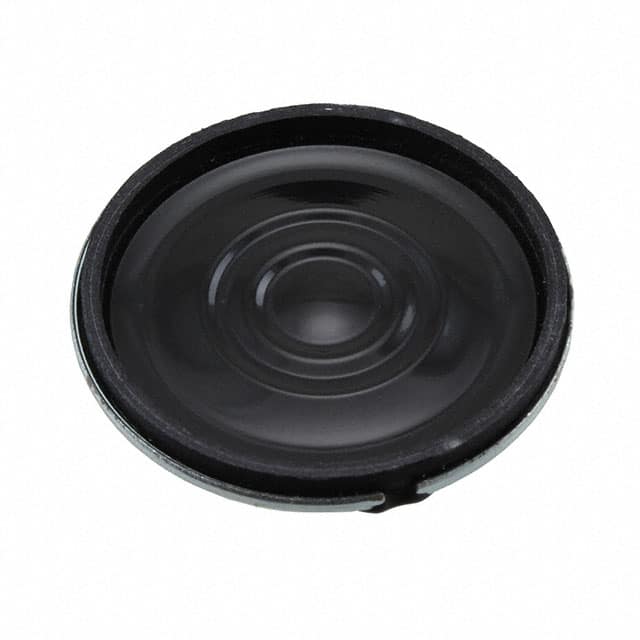

SP-2605SPEAKER 8OHM 500MW TOP PORT 90DB |
225 | - |
|
数据表 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 550Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 600 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | N38 | - | - | Solder Eyelet(s) | 1.024" Dia (26.00mm) | |
|

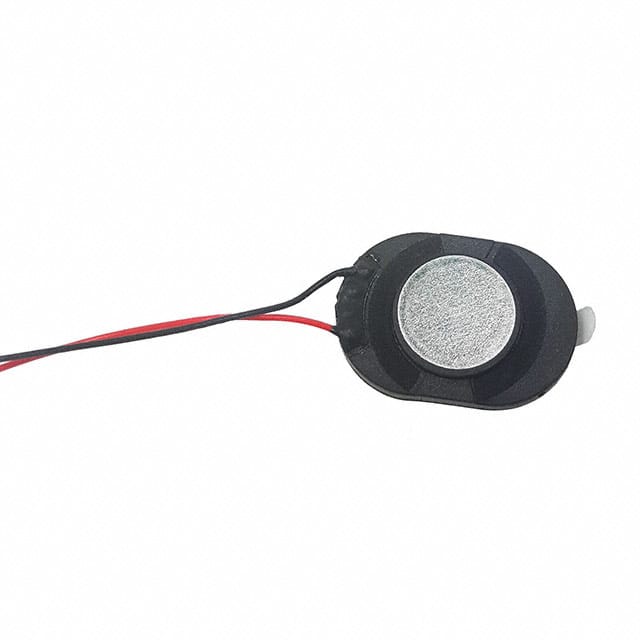

SP-2014L-1SPEAKER 8OHM 500MW TOP PORT 85DB |
704 | - |
|
数据表 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 900 Hz ~ 6 kHz | 900Hz | 8 Ohms | 85.00 | 1W/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Oval | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.787" L x 0.551" W (20.00mm x 14.00mm) | |
|
SW150908-1SPEAKER 8OHM 500MW TOP PORT 86DB |
415 | - |
|
数据表 |
SW | Bulk | Active | Magnetic | General Purpose | 900 Hz ~ 20 kHz | 1kHz | 8 Ohms | 86.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 700 mW | Top | Rectangular | Polyetheretherketone (PEEK) | - | Waterproof | - | Spring Type | 0.591" L x 0.236" W (15.00mm x 6.00mm) | |
|
CMS-15113-078L100A-67SPEAKER 8OHM 700MW TOP PORT 91DB |
339 | - |
|
数据表 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 0.591" L x 0.433" W (15.00mm x 11.00mm) | |
|
|
CMS-16093-078L100A-67SPEAKER 8OHM 700MW TOP PORT 91DB |
375 | - |
|
数据表 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 0.630" L x 0.354" W (16.00mm x 9.00mm) | |
|

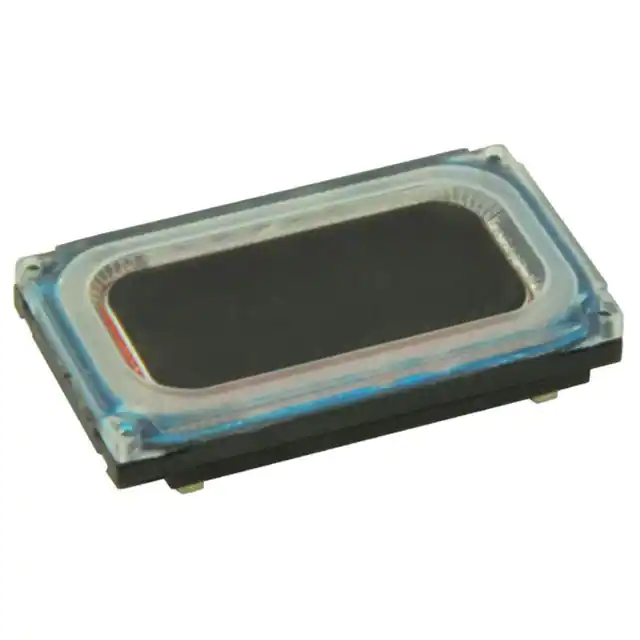

CMS-16093-076L100A-67SPEAKER 6OHM 700MW TOP PORT 90DB |
255 | - |
|
数据表 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 0.630" L x 0.354" W (16.00mm x 9.00mm) | |
|

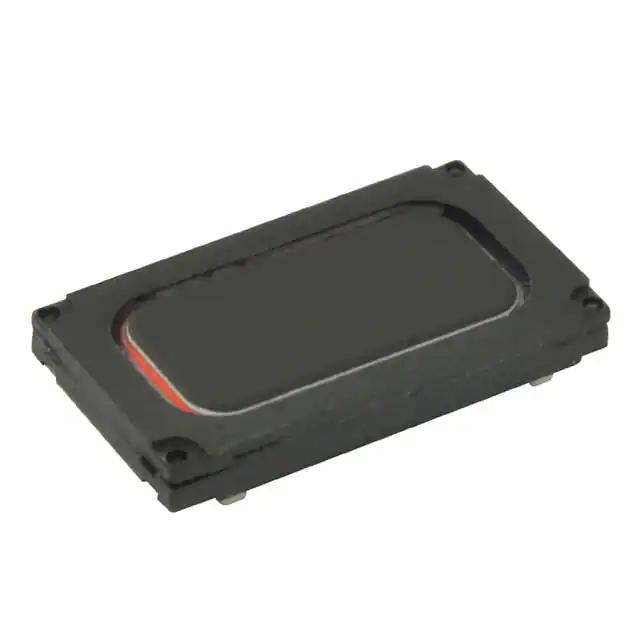

CMS-160925-078L100B-67SPEAKER 8OHM 700MW TOP PORT 90DB |
244 | - |
|
数据表 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 0.630" L x 0.354" W (16.00mm x 9.00mm) | |
|
|
CMS-15113-078L100B-67SPEAKER 8OHM 700MW TOP PORT 91DB |
148 | - |
|
数据表 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 0.591" L x 0.433" W (15.00mm x 11.00mm) | |
|
|
CMS-151135-076L100B-67SPEAKER 6OHM 700MW TOP PORT 92DB |
135 | - |
|
数据表 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 92.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 0.591" L x 0.433" W (15.00mm x 11.00mm) | |
|
AS02016MR-2-RSPEAKR 16OHM 300MW TOP PORT 91DB |
896 | - |
|
数据表 |
AS | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 7 kHz | 600Hz | 16 Ohms | 91.00 | 300mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.787" Dia (20.00mm) | |
|

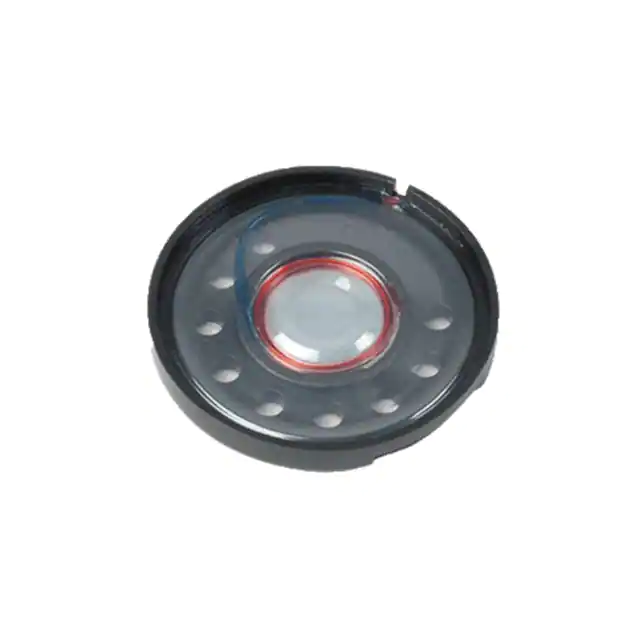

GC0281MSPEAKR 8OHM 100MW TOP PORT 112DB |
1,922 | - |
|
数据表 |
GC | Tray | Active | Magnetic | General Purpose | 0 Hz ~ 2.8 kHz | - | 8 Ohms | 91.00 | - | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.102" Dia (28.00mm) |
