扬声器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 频率范围 | 频率 - 自谐振 | 阻抗 | 效率 - dBA | 效率 - 测试 | 效率 - 类型 | 额定功率 | 功率 - 最大值 | 端口位置 | 形状 | 材料 - 锥体 | 材料 - 磁体 | 防护等级 | 额定值 | 端接方式 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMS-25145-158SPSPEAKER 8OHM 1.5W TOP PORT 93DB |
489 | - |
|
数据表 |
CMS | Tray | Active | Magnetic | General Purpose | 560 Hz ~ 10 kHz | 700Hz | 8 Ohms | 93.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 1.8 W | Top | Rectangular | Foam | Nd-Fe-B | - | - | Solder Pads | 0.984" L x 0.551" W (25.00mm x 14.00mm) | |
|

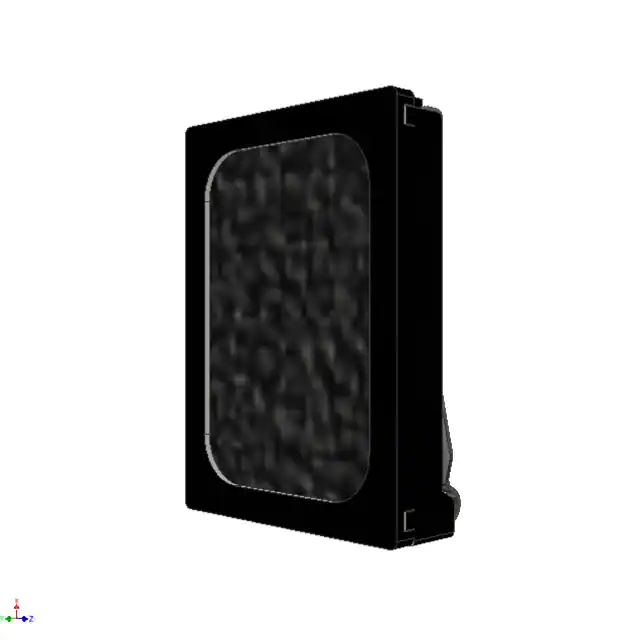

AS01508AO-SC-WP-RSPEAKER 8OHM 700MW TOP PORT 94DB |
11,457 | - |
|
数据表 |
Slim Line Micro | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 14 kHz | 500Hz | 8 Ohms | 94.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP65 - Dust Tight, Water Resistant | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | |
|

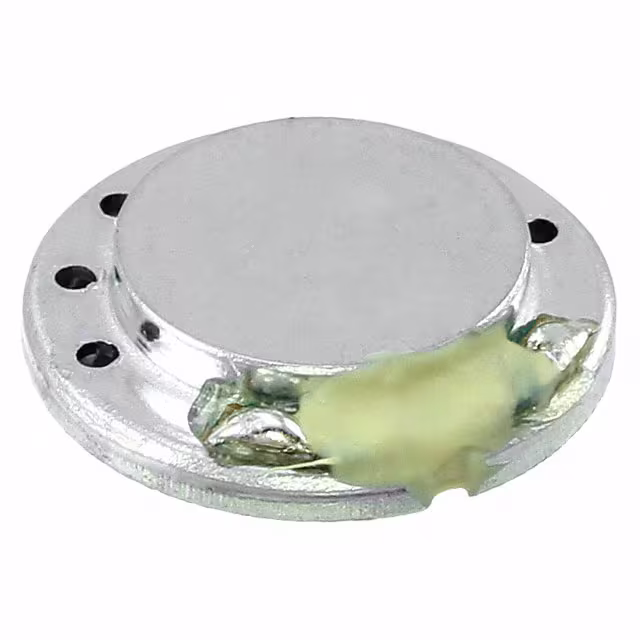

AS01308MR-2-RSPEAKER 8OHM 200MW TOP PORT 85DB |
3,874 | - |
|
数据表 |
AS | Tray | Active | Magnetic | General Purpose | 700 Hz ~ 5 kHz | 1100Hz | 8 Ohms | 85.00 | 100mW/100mm | Sound Pressure Level (SPL) | 200 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd | - | - | Solder Pads | 0.512" Dia (13.00mm) | |
|
CMR-15062S-67SPEAKR 32OHM 20MW TOP PORT 117DB |
844 | - |
|
数据表 |
CMR | Tray | Active | Magnetic | Receiver | 300 Hz ~ 7 kHz | 550Hz | 32 Ohms | 117.00 | - | Sound Pressure Level (SPL) | 20 mW | 30 mW | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.236" W (15.00mm x 6.00mm) | |
|

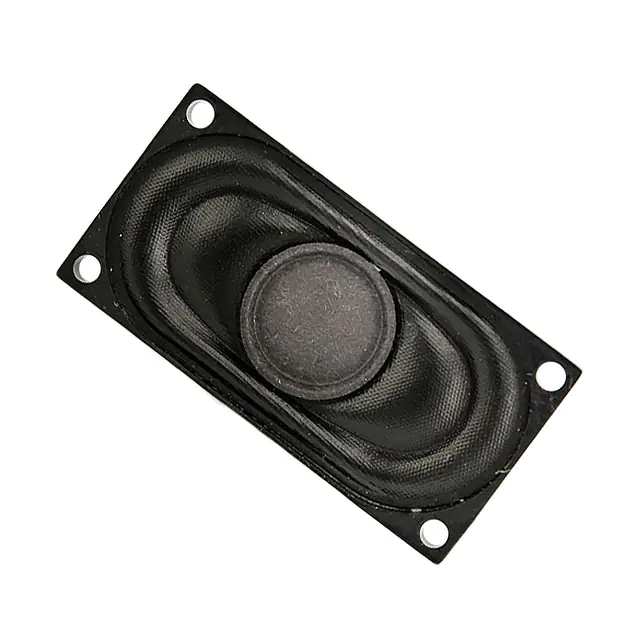

SP-2040SPEAKER 8OHM 1W TOP PORT 86DB |
105 | - |
|
数据表 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 650 Hz ~ 6 kHz | 650Hz | 8 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 0.787" W (40.00mm x 20.00mm) | |
|

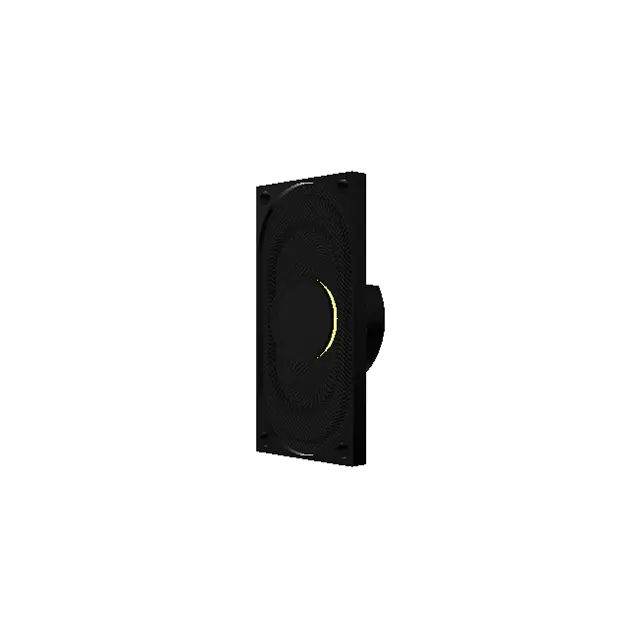

AS04004CO-2-RSPEAKER 4OHM 1.5W TOP PORT 84DB |
347 | - |
|
数据表 |
AS | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 550Hz | 4 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 1.5 W | 3 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 0.787" W (40.00mm x 20.00mm) | |
|

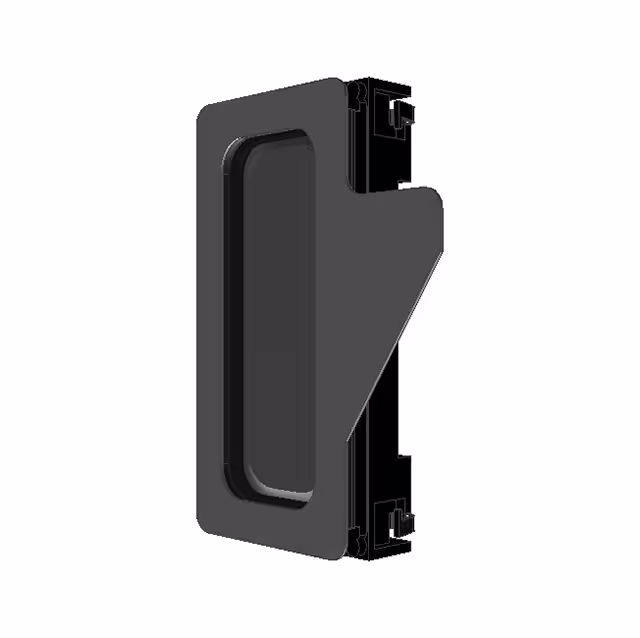

AR01232MS-SC12-WP-2-RSPEAKR 32OHM 20MW TOP PORT 117DB |
442 | - |
|
数据表 |
AR | Tray | Active | Magnetic | Receiver | 300 Hz ~ 7 kHz | 450Hz | 32 Ohms | 117.00 | 10mm | Sound Pressure Level (SPL) | 20 mW | 30 mW | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.472" L x 0.236" W (12.00mm x 6.00mm) | |
|

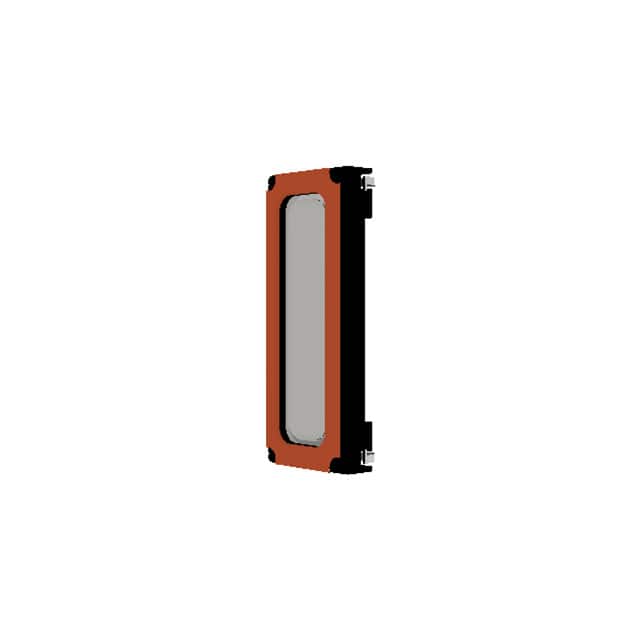

AR01532MS-SC15-WP-RSPEAKR 32OHM 20MW TOP PORT 108DB |
155 | - |
|
数据表 |
AR | Tray | Active | Magnetic | Receiver | 300 Hz ~ 7 kHz | 400Hz | 32 Ohms | 108.00 | - | Sensitivity | 20 mW | 30 mW | Top | Rectangular | Polyimide (PI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | - | 0.591" L x 0.236" W (15.00mm x 6.00mm) | |
|

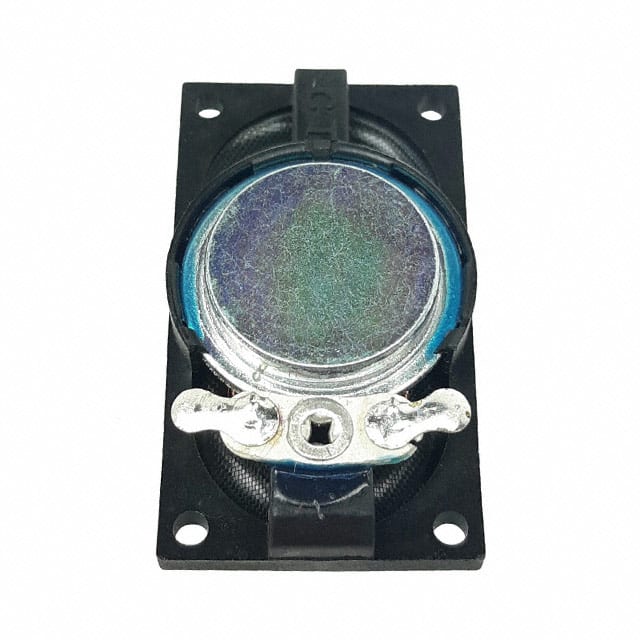

SP-3508YSPEAKER 8OHM 1W TOP PORT 88DB |
507 | - |
|
数据表 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 14 kHz | 600Hz | 8 Ohms | 88.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Rectangular | - | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.378" L x 0.787" W (35.00mm x 20.00mm) | |
|
AS01606MS-SP16-WP-RSPEAKER 6OHM 940MW TOP PORT 91DB |
212 | - |
|
数据表 |
AS | Tray | Active | Magnetic | Receiver | 500 Hz ~ 20 kHz | 850Hz | 6 Ohms | 91.00 | - | Sensitivity | 940 mW | 1.2 W | Top | Rectangular | Polyimide (PI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.630" L x 0.354" W (16.00mm x 9.00mm) | |
|

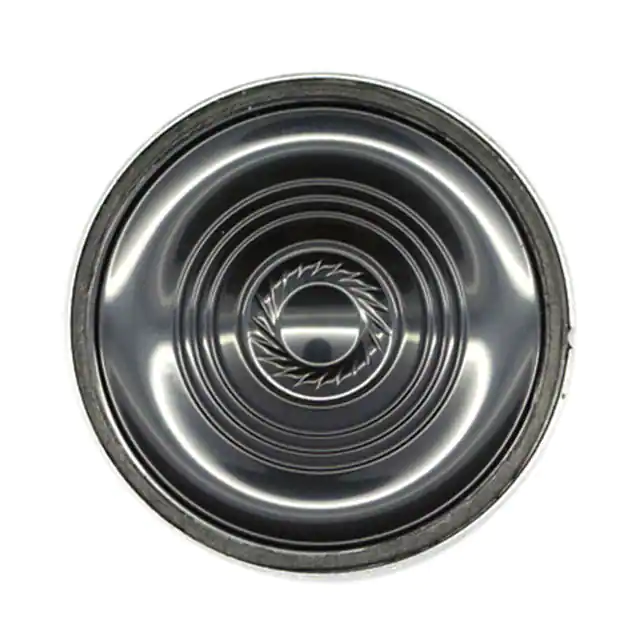

SM450508-1SPEAKER 8OHM 1W TOP PORT 102DB |
261 | - |
|
数据表 |
- | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 6 kHz | 500Hz | 8 Ohms | 102.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.772" Dia (45.00mm) | |
|
SM360508-2SPEAKER 8OHM 1W TOP PORT 105DB |
136 | - |
|
数据表 |
- | Tray | Active | Magnetic | General Purpose | 550 Hz ~ 11 kHz | 550Hz | 8 Ohms | 105.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.417" Dia (36.00mm) | |
|

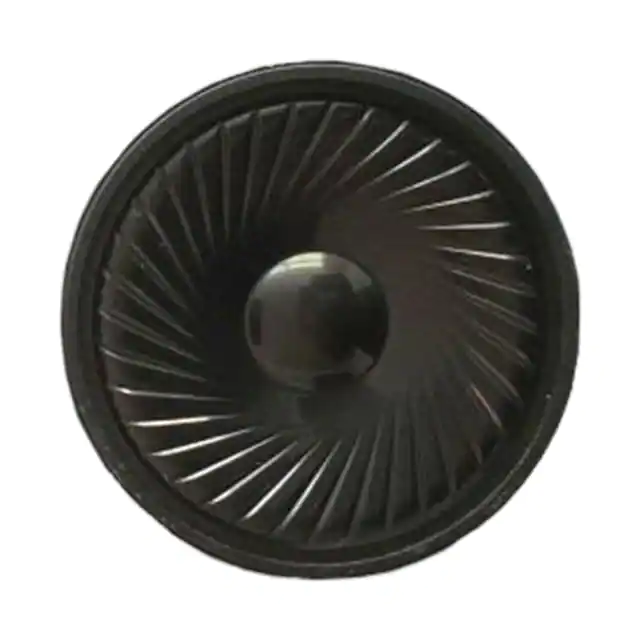

SP-5009SPEAKER 8OHM 500MW TOP PORT 93DB |
103 | - |
|
数据表 |
SP | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 450Hz | 8 Ohms | 93.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.969" Dia (50.00mm) | |
|

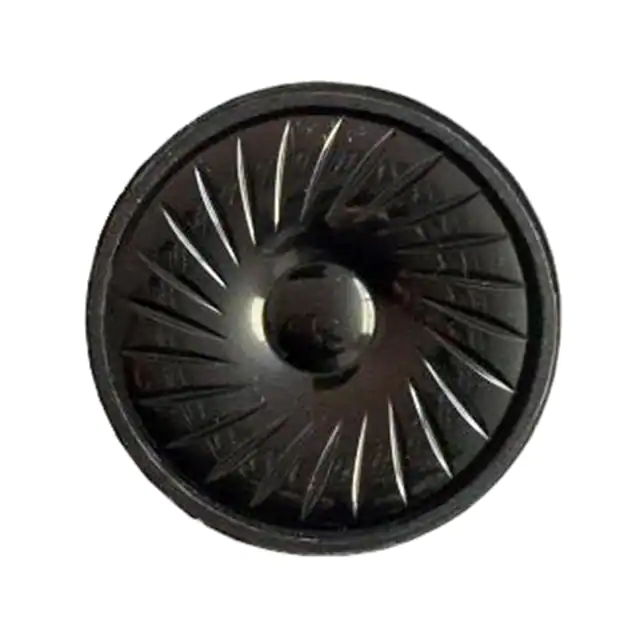

SP-5709SPEAKER 8OHM 500MW TOP PORT 96DB |
507 | - |
|
数据表 |
SP | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 6 kHz | 400Hz | 8 Ohms | 96.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 2.244" Dia (57.00mm) | |
|
CMS-15118D-SPSPEAKER 8OHM 700MW TOP PORT 91DB |
667 | - |
|
数据表 |
CMS | Tray | Active | Magnetic | Low Profile | 425 Hz ~ 10 kHz | 500Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | |
|

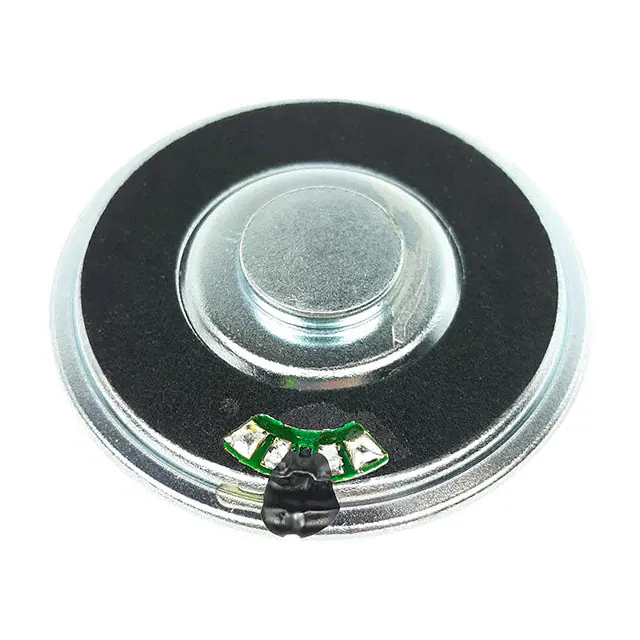

SP-5708SPEAKER 8OHM 1.5W TOP PORT 96DB |
281 | - |
|
数据表 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 500Hz | 8 Ohms | 96.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.244" Dia (57.00mm) | |
|

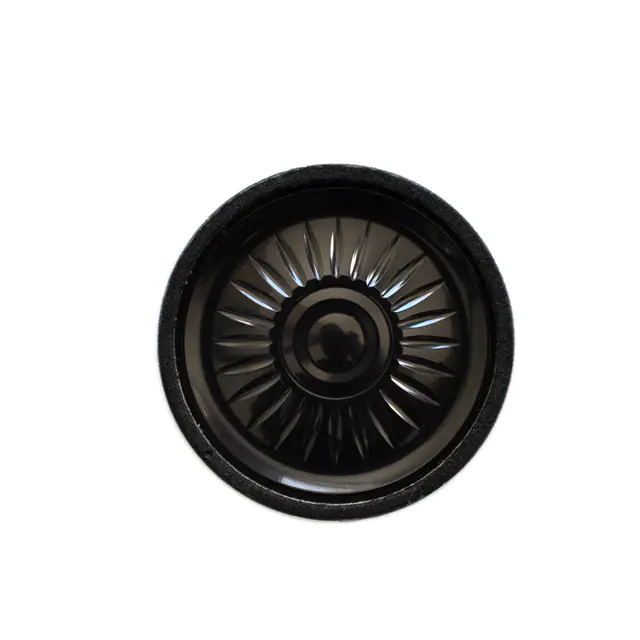

SP-4008YSPEAKER 4OHM 2W TOP PORT 90DB |
172 | - |
|
数据表 |
SP | Tray | Active | Magnetic | General Purpose | 550 Hz ~ 10 kHz | 550Hz | 4 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | - | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" Dia (40.00mm) | |
|
SM150908-4SPEAKER 8OHM 1W TOP PORT 95.5DB |
513 | - |
|
数据表 |
- | Tray | Active | Magnetic | General Purpose | 900 Hz ~ 10 kHz | 900Hz | 8 Ohms | 95.50 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.3 W | Top | Rectangular | - | - | - | - | - | 0.591" L x 0.433" W (15.00mm x 11.00mm) | |
|

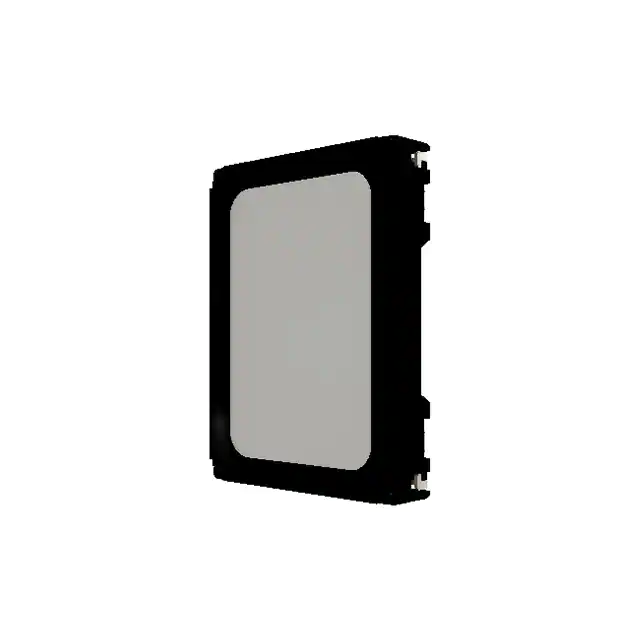

AS01506MS-SC15-WP-RSPEAKER 6OHM 1W TOP PORT 93DB |
160 | - |
|
数据表 |
AS | Tray | Active | Magnetic | Receiver | 650 Hz ~ 20 kHz | 650Hz | 6 Ohms | 93.00 | - | Sensitivity | 1 W | 1.2 W | Top | Rectangular | Polyimide (PI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | |
|
CDS-4020-16SPEAKER 16OHM 1.5W TOP PORT 90DB |
330 | - |
|
数据表 |
CDS | Box | Active | Magnetic | General Purpose | 440 Hz ~ 20 kHz | 550Hz | 16 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1.5 W | 3 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 0.787" W (40.00mm x 20.00mm) |
