拨动开关
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

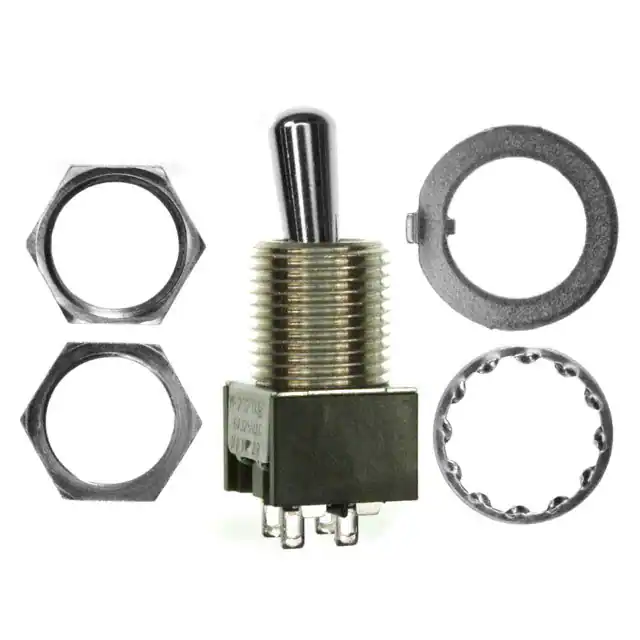

M2021BB1W01SWITCH TOGGLE DPST 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | DPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B22HBSWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
B | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B23AHSWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
B | Tray | Active | Through Hole, Right Angle | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S114SWITCH TOGGLE DPST 5A 125V |
0 | - |
|
数据表 |
S | Bulk | Obsolete | Panel Mount | DPST | On-Off | 5A (AC/DC) | 125 V | 30 V | Standard Round | 18.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
B22JV-JBSWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
B | Tray | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | White Cap | -30°C ~ 85°C |
|
|
B22JH-JASWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
B | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Black Cap | -30°C ~ 85°C |
|
|
B22EBSWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
B | Tray | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A18JH-JCSWITCH TOGGLE SPDT 0.4VA 28V |
0 | - |
|
数据表 |
A | Bulk | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Red Cap | -30°C ~ 85°C |
|
|
34CMSP13B1M2RTSWITCH TOGGLE SPDT 0.4VA 20V |
0 | - |
|
数据表 |
34C | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.37mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET206N12-ZSWITCH TOGGLE DPDT 6A 125V |
38 | - |
|
数据表 |
ET | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
|
34ASP1LM2RTSWITCH TOGGLE SPDT 0.4VA 20V |
0 | - |
|
数据表 |
34A | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 16.26mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
B25AVSWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
B | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A22JPSWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
A | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
B2RAHSWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
B | Bulk | Active | Through Hole, Right Angle | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2015BB1W03SWITCH TOGGLE SPDT 6A 125V |
53 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2022ES1G40SWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 11.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A23AP-GASWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
A | Bulk | Active | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Black Cap | -30°C ~ 85°C |
|
|
A18JV1-JCSWITCH TOGGLE SPDT 0.4VA 28V |
0 | - |
|
数据表 |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Red Cap | -30°C ~ 85°C |
|
|
A18JV-JCSWITCH TOGGLE SPDT 0.4VA 28V |
0 | - |
|
数据表 |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Red Cap | -30°C ~ 85°C |
|
|
34CMSP41B2M2RTSWITCH TOGGLE SPDT 0.4VA 20V |
0 | - |
|
数据表 |
34C | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
