拨动开关
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2022LL3G01SWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34CMSP51B6M6RTSWITCH TOGGLE SPDT 0.4VA 20V |
0 | - |
|
数据表 |
34C | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.11mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B28HPSWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
B | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2015B2B3W01SWITCH TOGGLE SPDT 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

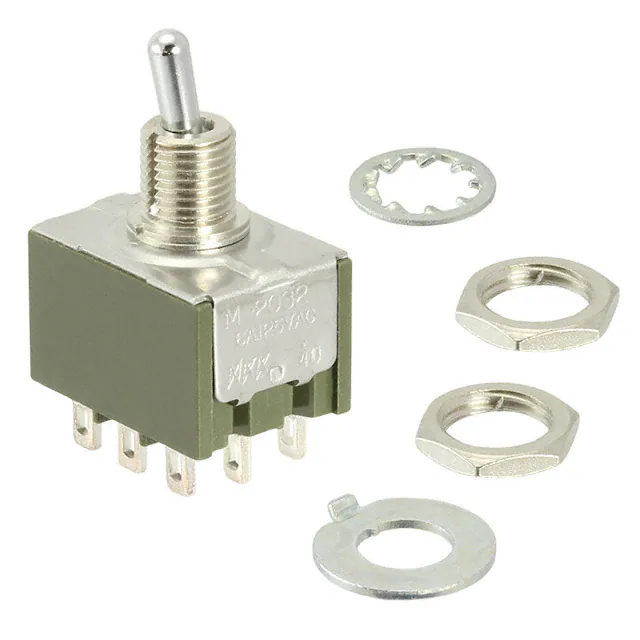

M2032S2A1W01SWITCH TOGGLE 3PDT 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.86mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2027S2A2W30SWITCH TOGGLE SP3T 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Through Hole, Right Angle | SP3T | On-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2011SD8W01SWITCH TOGGLE SPST 6A 125V |
0 | - |
|
- |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
A23JWSWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
A | Tube | Active | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
M2022SS1G05SWITCH TOGGLE DPDT 0.4VA 28V |
100 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2022LL3W03SWITCH TOGGLE DPDT 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B29AWSWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
B | Bulk | Active | Through Hole | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

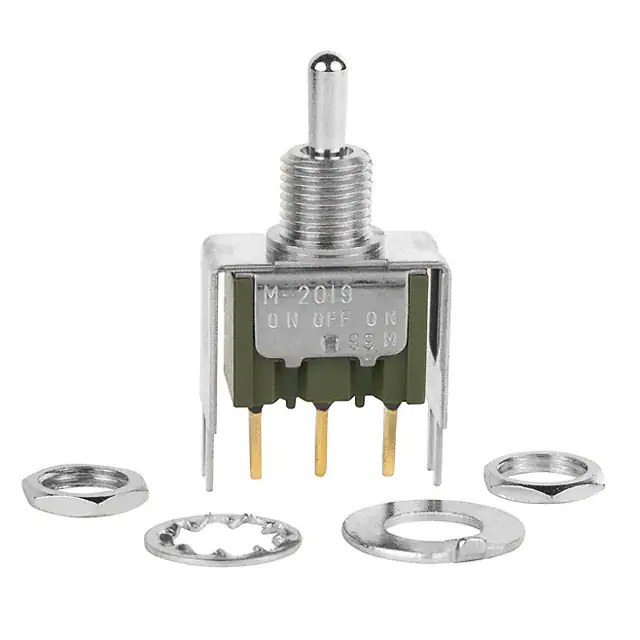

M2019S2A1G13SWITCH TOGGLE SPDT 0.4VA 28V |
23 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B28AWSWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
B | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B28APSWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
B | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
D22018PSWITCH TOGGLE SPDT 0.4VA 48V |
0 | - |
|
数据表 |
D2 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 48 V | 48 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -10°C ~ 70°C |
|
|
G3T19ABSWITCH TOGGLE SPDT 0.4VA 28V |
0 | - |
|
数据表 |
G3T | Bulk | Active | Surface Mount | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.81mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2013ES1G01SWITCH TOGGLE SPDT 0.4VA 28V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
D22019PSWITCH TOGGLE SPDT 0.4VA 48V |
0 | - |
|
数据表 |
D2 | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 48 V | 48 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -10°C ~ 70°C |
|
|
G3T18ABSWITCH TOGGLE SPDT 0.4VA 28V |
0 | - |
|
数据表 |
G3T | Bulk | Active | Surface Mount | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.81mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|

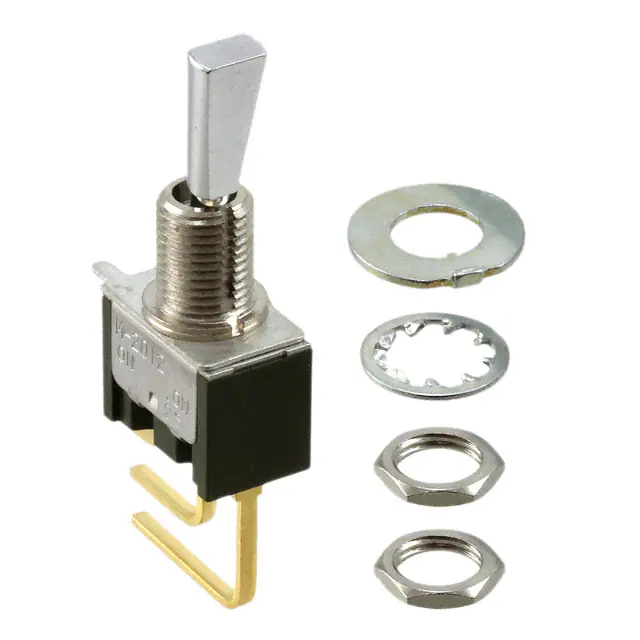

M2012ES1G40SWITCH TOGGLE SPDT 0.4VA 28V |
11 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 11.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
