拨动开关
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2025B2B1W03SWITCH TOGGLE DPDT 6A 125V |
50 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
34ASP45B2M7RTSWITCH TOGGLE SPDT 0.4VA 20V |
0 | - |
|
数据表 |
34A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 21.32mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
5636ABX814SWITCH TOGGLE SPDT 6A 125V |
0 | - |
|
数据表 |
5000 | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

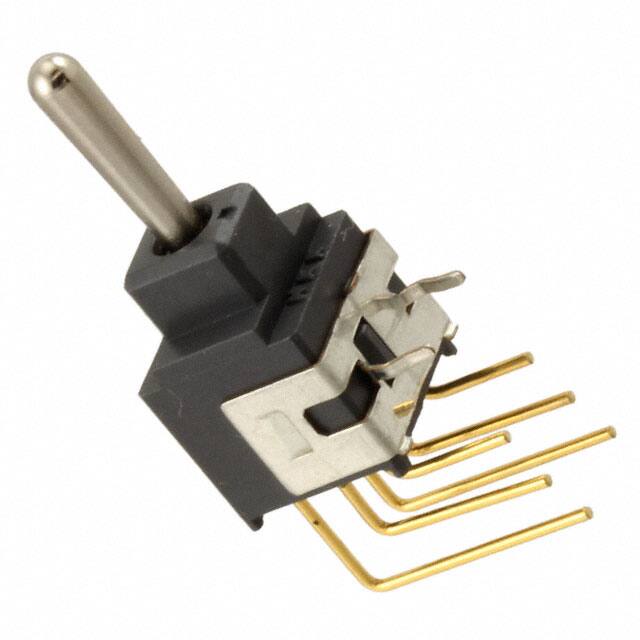

A23AVSWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
A | Tray | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|

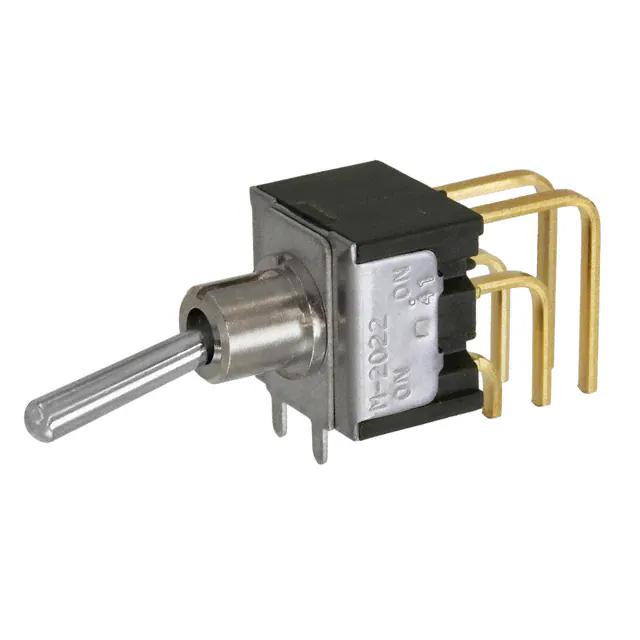

M2022SA2G40SWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 12.28mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2012LL2G13SWITCH TOGGLE SPDT 0.4VA 28V |
37 | - |
|
数据表 |
M | Bulk | Obsolete | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ASP32B4V2RTSWITCH TOGGLE SPDT 0.4VA 20V |
0 | - |
|
数据表 |
34A | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
55639AVDEULCSA+U272SWITCH TOGGLE SPDT 6A 125V |
0 | - |
|
数据表 |
55000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC) | 125 V | - | Standard Round with Cap | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | - |
|
|
B29ABSWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
B | Bulk | Active | Through Hole | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 8.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

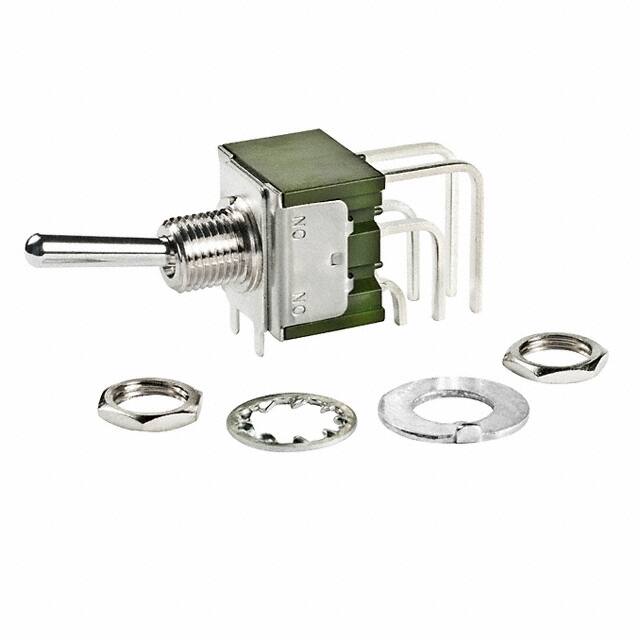

M2022SA1W40SWITCH TOGGLE DPDT 6A 125V |
5 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 12.28mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B28ABSWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
B | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
55639AVDE+U272SWITCH TOGGLE SPDT 6A 125V |
0 | - |
|
数据表 |
55000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC) | 125 V | - | Standard Round with Cap | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | - |
|
M2024Q4S4W01SWITCH TOGGLE SP3T 6A 125V |
22 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | SP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 21.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2015SS4W01-BASWITCH TOGGLE SPDT 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | - | Black Cap | -30°C ~ 85°C |
|
|
M2015SS4W01-BBSWITCH TOGGLE SPDT 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | - | White Cap | -30°C ~ 85°C |
|

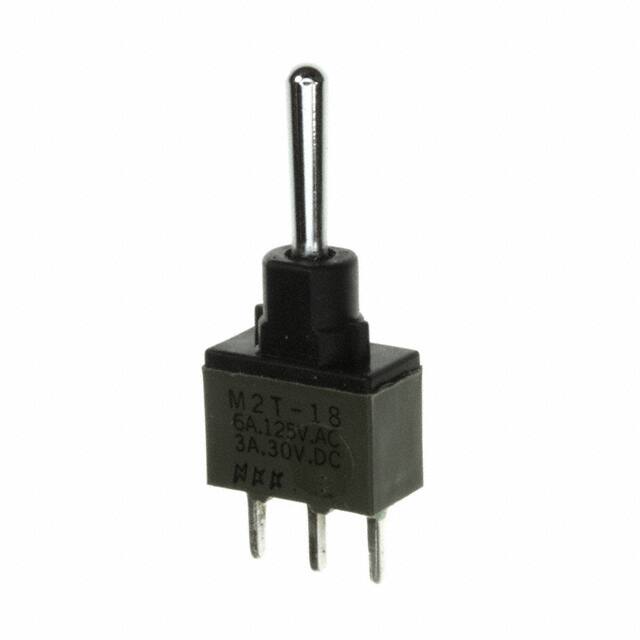

M2T18SA5W03SWITCH TOGGLE SPDT 6A 125V |
0 | - |
|
数据表 |
M2 | Bulk | Obsolete | Through Hole | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
B28AP-GASWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
B | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Black Cap | -30°C ~ 85°C |
|
|
B28AP-GBSWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
B | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | White Cap | -30°C ~ 85°C |
|
|
A29JPSWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
A | Bulk | Active | Through Hole | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
B29JHSWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
B | Tray | Active | Through Hole, Right Angle | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
