拨动开关
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

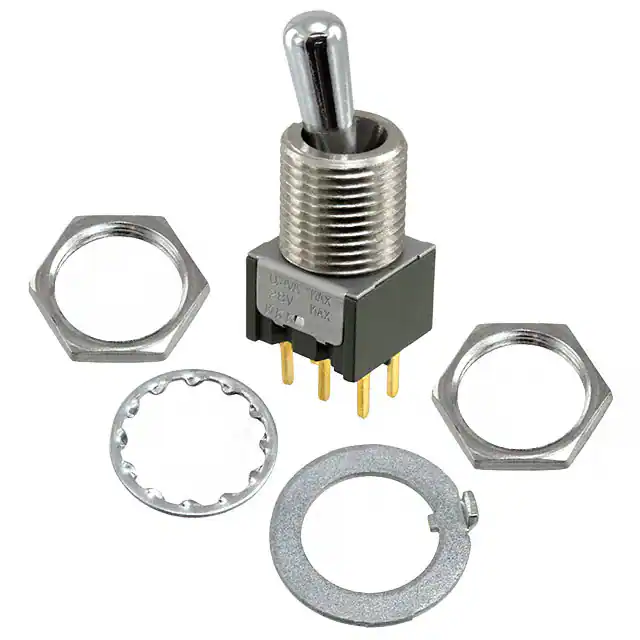

M2022BB1G03SWITCH TOGGLE DPDT 0.4VA 28V |
20 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 11.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2012SS1W13-CCSWITCH TOGGLE SPDT 6A 125V |
68 | - |
|
数据表 |
M | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.10mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Red Cap | -30°C ~ 85°C |
|

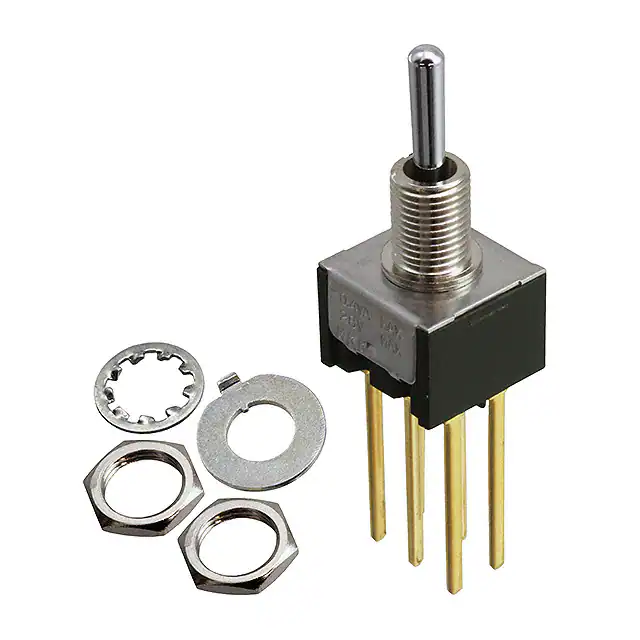

M2029SS1G06SWITCH TOGGLE DPDT 0.4VA 28V |
62 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2029ES1W01SWITCH TOGGLE DPDT 6A 125V |
47 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2T12S4A5G30SWITCH TOGGLE SPDT 0.4VA 28V |
0 | - |
|
数据表 |
M2 | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2T18SA5G03SWITCH TOGGLE SPDT 0.4VA 28V |
0 | - |
|
数据表 |
M2 | Bulk | Obsolete | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2022SS1A01SWITCH TOGGLE DPDT 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T105LH9AVBESWITCH TOGGLE SPDT 0.4VA 20V |
69 | - |
|
数据表 |
T | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.37mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2025SD3W01SWITCH TOGGLE DPDT 6A 125V |
18 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B29HHSWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
B | Bulk | Active | Through Hole, Right Angle | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

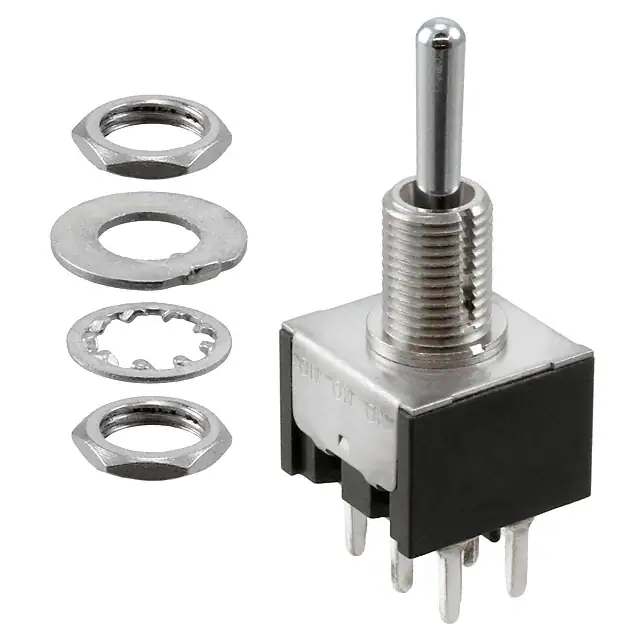

M2027SS1W03SWITCH TOGGLE SP3T 6A 125V |
47 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | SP3T | On-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
A2RHVSWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
A28AWSWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
A | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
M2T22SA5G03SWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
M2 | Bulk | Obsolete | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
G25AVSWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
G | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|
7108TCWZQESSWITCH TOGGLE SPDT 5A 120V |
0 | - |
|
数据表 |
7000 | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Satin Chrome Actuator | -30°C ~ 85°C |
|
7101P3HZBESWITCH TOGGLE SPDT 0.4VA 20V |
12 | - |
|
数据表 |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2035BB1W01SWITCH TOGGLE 3PDT 6A 125V |
27 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | 3PDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

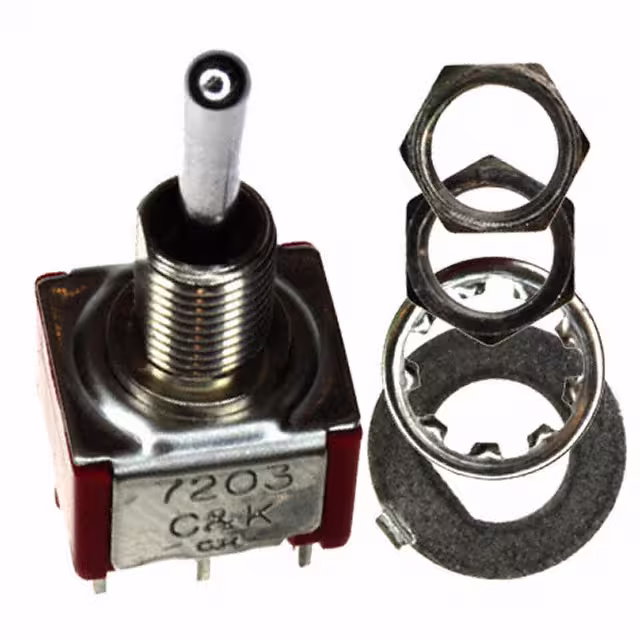

7203SHZQESWITCH TOGGLE DPDT 5A 120V |
27 | - |
|
数据表 |
7000 | Tray | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

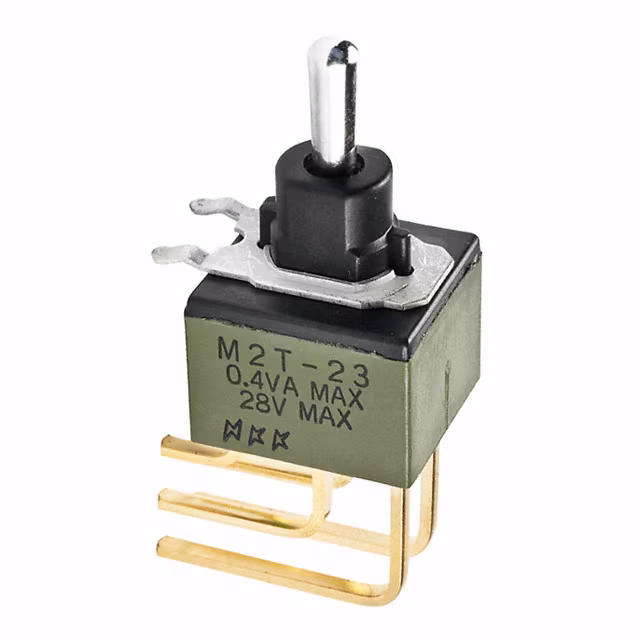

M2T23S4A5G40SWITCH TOGGLE DPDT 0.4VA 28V |
36 | - |
|
数据表 |
M2 | Tray | Obsolete | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
