拨动开关
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T105LHZQESWITCH TOGGLE SPDT 2A 120V |
10 | - |
|
数据表 |
T | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 2A (AC/DC) | 120 V | 28 V | Standard Round | 7.37mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101MYZBESWITCH TOGGLE SPDT 0.4VA 20V |
0 | - |
|
数据表 |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T101L1H9CQESWITCH TOGGLE SPDT 3A 120V |
0 | - |
|
数据表 |
T | Bulk | Active | Through Hole | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 18.55mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
G3T22AP-SSWITCH TOGGLE DPDT 0.4VA 28V |
9 | - |
|
数据表 |
G3T | Tube | Active | Surface Mount | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.81mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
E101SYCBESWITCH TOGGLE SPDT 0.4VA 20V |
0 | - |
|
数据表 |
E | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.16mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET03LD1CBESWITCH TOGGLE SPDT 0.4VA 20V |
2 | - |
|
数据表 |
ET | Tray | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 8.13mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET01M3D1ABESWITCH TOGGLE SPDT 0.4VA 20V |
0 | - |
|
数据表 |
ET | Bag | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Black Antistatic Actuator | -30°C ~ 85°C |
|
E105SYZQESWITCH TOGGLE SPDT 7.5A 125V |
8 | - |
|
数据表 |
E | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 7.5A (AC/DC) | 125 V | 28 V | Standard Round | 10.16mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7202DSWITCH TOGGLE SPDT 20A 125V |
23 | - |
|
数据表 |
7200 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 20A (AC) | 125 V | - | Standard Round | 14.27mm | Non-Illuminated | - | - | Solder Lug | - | 15/32-32 | - | - | -10°C ~ 65°C |
|
|
E103MD9V3GESWITCH TOGGLE SPDT 7.5A 125V |
12 | - |
|
数据表 |
E | Bulk | Active | Through Hole | SPDT | On-Off-On | 7.5A (AC/DC) | 125 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET01SD1V3BESWITCH TOGGLE SPDT 0.4VA 20V |
8 | - |
|
数据表 |
ET | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.16mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET225P-ZSWITCH TOGGLE DPDT 25A 125V |
4 | - |
|
数据表 |
ET | Bulk | Active | Panel Mount | DPDT | On-Off-On | 25A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|

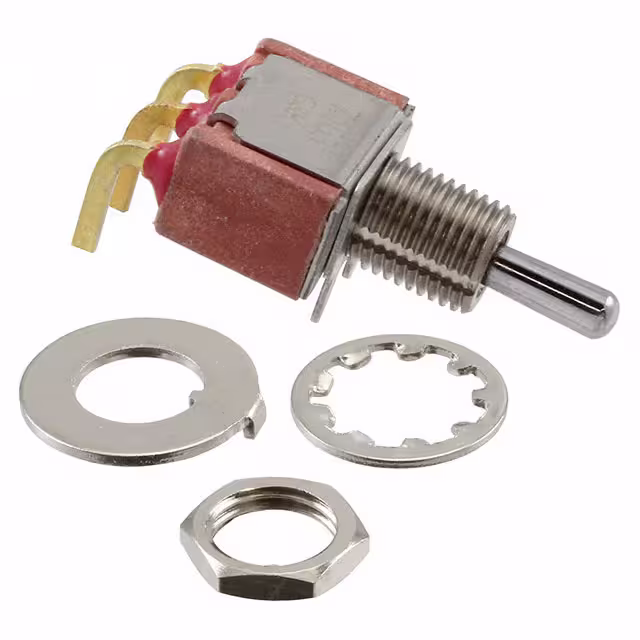

7103MDABESWITCH TOGGLE SPDT 0.4VA 20V |
0 | - |
|
数据表 |
7000 | Bulk | Active | Panel Mount, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
E101SD1AV2BESWITCH TOGGLE SPDT 0.4VA 20V |
9 | - |
|
数据表 |
E | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
SQR14130XXSWITCH TOGGLE SP3T 15A 120V |
10 | - |
|
数据表 |
Square D, X | Box | Active | Panel Mount | SP3T | - | 15A (AC) | 120 V | - | - | - | - | - | - | Screw Terminal | - | - | - | - | -5°C ~ 45°C |
|
ET08MD1ABESWITCH TOGGLE SPDT 0.4VA 20V |
0 | - |
|
数据表 |
ET | Bulk | Active | Through Hole, Right Angle | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET03MD1ABESWITCH TOGGLE SPDT 0.4VA 20V |
0 | - |
|
数据表 |
ET | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET03S1D1V3BESWITCH TOGGLE SPDT 0.4VA 20V |
0 | - |
|
数据表 |
ET | Tray | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.97mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

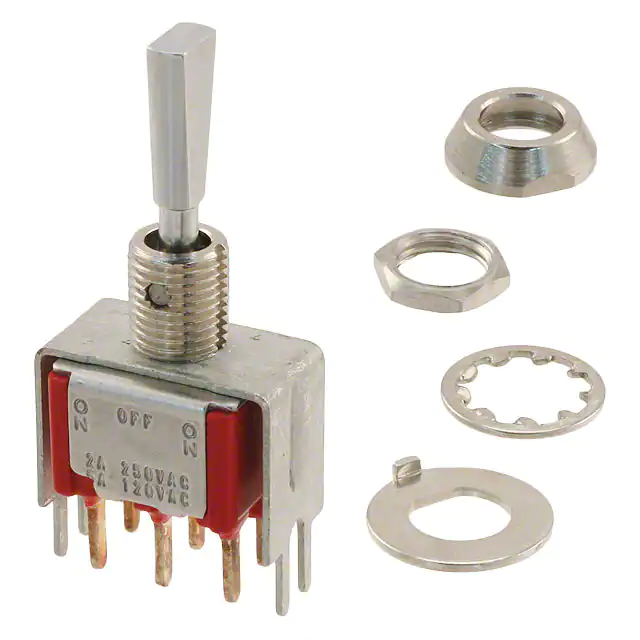

7205P3DV3QESWITCH TOGGLE DPDT 5A 120V |
19 | - |
|
数据表 |
7000 | Tray | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
GT23MCBESWITCH TOGGLE DPDT 0.4VA 20V |
0 | - |
|
数据表 |
GT | Bulk | Active | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 3.81mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
