拨动开关
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2022S3A2W40SWITCH TOGGLE DPDT 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Through Hole, Right Angle, Vertical | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 8.28mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2022SA1W30SWITCH TOGGLE DPDT 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Through Hole, Right Angle | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 12.28mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2022SD1W01-BASWITCH TOGGLE DPDT 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Black Cap | -30°C ~ 85°C |
|
|
M2026SS1W30SWITCH TOGGLE SP3T 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Through Hole, Right Angle | SP3T | Mom-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2032SA1W08SWITCH TOGGLE 3PDT 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 12.28mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2033SA1W08SWITCH TOGGLE 3PDT 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | 3PDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 12.28mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2038S2S1G03SWITCH TOGGLE 3PDT 0.4VA 28V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | 3PDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

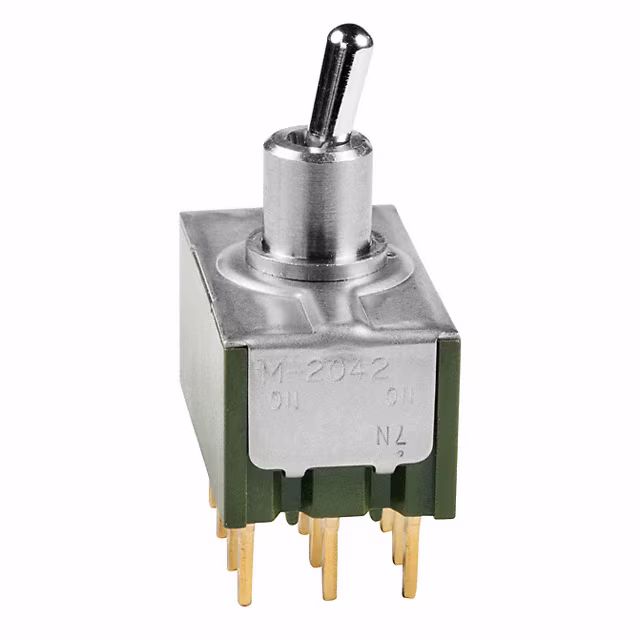

M2042S2A2G03SWITCH TOGGLE 4PDT 0.4VA 28V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Through Hole | 4PDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2042SA1W08SWITCH TOGGLE 4PDT 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 12.28mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2112TCFW13SWITCH TOGGLE SPDT 6A 125V |
0 | - |
|
数据表 |
M2100 | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Green/Red | 1.7, 2 VDC | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
M2112TCW02SWITCH TOGGLE SPDT 6A 125V |
0 | - |
|
数据表 |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Red | 2.2 VDC | Quick Connect - 0.062" (1.5mm) | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2123TCFW13SWITCH TOGGLE DPDT 6A 125V |
0 | - |
|
数据表 |
M2100 | Bulk | Obsolete | Through Hole | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Green/Red | 1.7, 2 VDC | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
M2T12S4A5G40/UCSWITCH TOGGLE SPDT 0.4VA 28V |
0 | - |
|
数据表 |
M2 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T12S4A5W03SWITCH TOGGLE SPDT 6A 125V |
0 | - |
|
数据表 |
M2 | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2T12SA5G03/USWITCH TOGGLE SPDT 0.4VA 28V |
0 | - |
|
数据表 |
M2 | Bulk | Obsolete | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T13S4A5W03SWITCH TOGGLE SPDT 6A 125V |
0 | - |
|
数据表 |
M2 | Bulk | Obsolete | Through Hole | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2T13SA5W03SWITCH TOGGLE SPDT 6A 125V |
0 | - |
|
数据表 |
M2 | Bulk | Obsolete | Through Hole | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T13SA5W03/USWITCH TOGGLE SPDT 6A 125V |
0 | - |
|
数据表 |
M2 | Bulk | Obsolete | Through Hole | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|

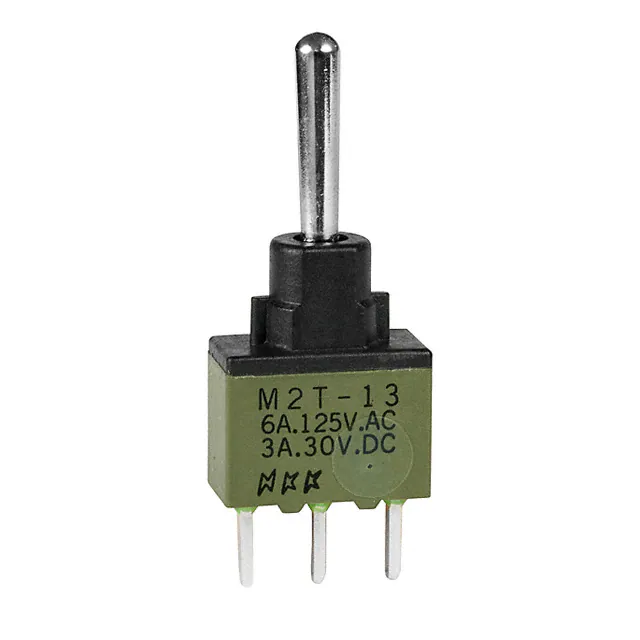

M2T13SA5W03/UCSWITCH TOGGLE SPDT 6A 125V |
0 | - |
|
数据表 |
M2 | Bulk | Obsolete | Through Hole | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T15SA5G30SWITCH TOGGLE SPDT 0.4VA 28V |
0 | - |
|
数据表 |
M2 | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
