固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA5003.472NLTFIXED IND 4.7UH 5.9A 36.3MOHM SM |
5,552 | - |
|
数据表 |
PA5003.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 4.7 µH | ±20% | 5.9 A | 8.2A | Shielded | 36.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
VCHA075D-100MS6FIXED IND 10UH 5.2A 38 MOHM SMD |
5,099 | - |
|
数据表 |
VCHA075D | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 10 µH | ±20% | 5.2 A | 6.9A | Unshielded | 38mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.283" W (7.70mm x 7.20mm) | 0.213" (5.40mm) |
|
PA4343.501NLTFIXED IND 500NH 40A 1.25MOHM SMD |
2,991 | - |
|
数据表 |
PA4343.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 500 nH | ±20% | 40 A | 60A | Shielded | 1.25mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
|
|
VCHA075D-220MS6FIXED IND 22UH 3.3A 93.5MOHM SMD |
1,461 | - |
|
数据表 |
VCHA075D | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 22 µH | ±20% | 3.3 A | 5.4A | Unshielded | 93.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.283" W (7.70mm x 7.20mm) | 0.213" (5.40mm) |
|
SRP6050CA-1R0MFIXED IND 1UH 20A 4.52 MOHM SMD |
1,320 | - |
|
数据表 |
SRP6050CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 20 A | 23A | Shielded | 4.52mOhm Max | - | 50MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|
HCTI-15-18.0FIXED IND 15UH 18A 6 MOHM TH |
417 | - |
|
数据表 |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 15 µH | ±15% | 18 A | - | Shielded | 6mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
IHLE4040DDER100M5AIHLE-4040DD-5A 10 20% ER E3 |
352 | - |
|
数据表 |
IHLE-4040DD-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 6.5 A | 8.5A | Shielded | 33.06mOhm Max | - | 11.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.430" L x 0.426" W (10.92mm x 10.82mm) | 0.174" (4.42mm) |
|

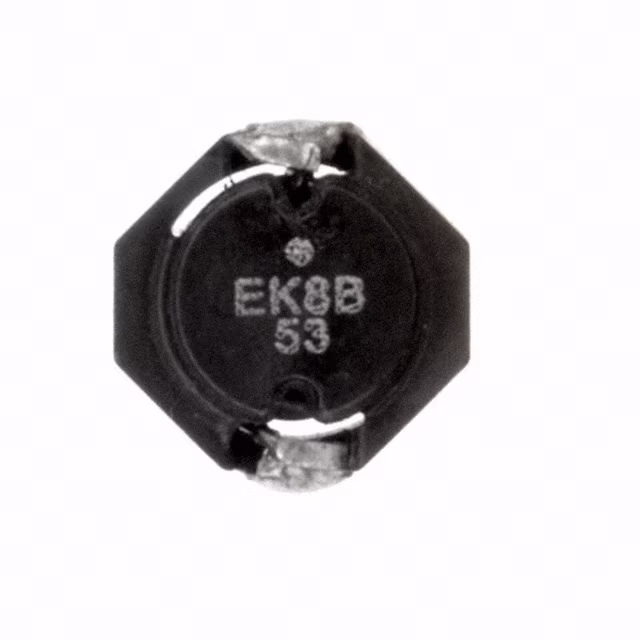

SD53-6R8-RFIXED IND 6.8UH 1.65A 68MOHM SMD |
7,895 | - |
|
数据表 |
SD53 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.65 A | 1.85A | Shielded | 68mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
MPIA4020V2-1R0-RFIXED IND 1UH 6.5A 24 MOHM SMD |
4,669 | - |
|
数据表 |
MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 6.5 A | 7A | Shielded | 24mOhm Max | - | 65MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.165" W (4.95mm x 4.20mm) | 0.079" (2.00mm) |
|
CDRH127NP-331MCFIXED IND 330UH 950MA 640MOHM SM |
4,205 | - |
|
数据表 |
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 µH | ±20% | 950 mA | - | Shielded | 640mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
VCHA075D-3R3MS6FIXED IND 3.3UH 8A 15.4MOHM SMD |
3,238 | - |
|
数据表 |
VCHA075D | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 3.3 µH | ±20% | 8 A | 11.6A | Unshielded | 15.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.283" W (7.70mm x 7.20mm) | 0.213" (5.40mm) |
|
74438366033FIXED IND 3.3UH 5A 38.4MOHM SMD |
3,230 | - |
|
数据表 |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 5 A | 7A | Shielded | 38.4mOhm Max | - | 23MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5020 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.083" (2.10mm) |
|
|
74438366022FIXED IND 2.2UH 6A 27.3 OHM SMD |
2,070 | - |
|
数据表 |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 6 A | 9A | Shielded | 27.3mOhm Max | - | 31.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.083" (2.10mm) |
|
|
CDRH127NP-220MCFIXED IND 22UH 3.6A 43.2MOHM SMD |
2,049 | - |
|
数据表 |
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 3.6 A | - | Shielded | 43.2mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
74438366010FIXED IND 1UH 7.8A 13.1MOHM SMD |
2,023 | - |
|
数据表 |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 7.8 A | 10A | Shielded | 13.1mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5020 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.083" (2.10mm) |
|
|
VCHA075D-470MS6FIXED IND 47UH 2.4A 171.6MOHM SM |
1,920 | - |
|
数据表 |
VCHA075D | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 47 µH | ±20% | 2.4 A | 3.5A | Unshielded | 171.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.283" W (7.70mm x 7.20mm) | 0.213" (5.40mm) |
|
|
CDRH127NP-471MCFIXED IND 470UH 790MA 980MOHM SM |
1,564 | - |
|
数据表 |
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 µH | ±20% | 790 mA | - | Shielded | 980mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127NP-120MCFIXED IND 12UH 4.9A 24.3MOHM SMD |
1,459 | - |
|
数据表 |
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 4.9 A | - | Shielded | 24.3mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
VLBU1024660R12MF1FIXED IND 12NH 70A 0.23MOHM SMD |
1,008 | - |
|
数据表 |
VLBU | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±20% | 70 A | 58A | Unshielded | 0.23mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.181" W (10.20mm x 4.60mm) | 0.236" (6.00mm) |
|
|
74438366047FIXED IND 4.7UH 4.1A 63MOHM SMD |
955 | - |
|
数据表 |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 4.1 A | 5.5A | Shielded | 63mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5020 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.083" (2.10mm) |
