固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447779112FIXED IND 12UH 1.82A 58 MOHM SMD |
177 | - |
|
数据表 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 1.82 A | 2.4A | Shielded | 58mOhm Max | - | 23MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
744309047FIXED IND 470NH 47.5A 0.000165OH |
1,357 | - |
|
数据表 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 470 nH | ±20% | 47.5 A | 46.8A | Shielded | 0.165mOhm | - | 95MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1390 | 0.551" L x 0.512" W (14.00mm x 13.00mm) | 0.374" (9.50mm) |
|
|
744309025FIXED IND 250NH 47.5A 0.000165OH |
684 | - |
|
数据表 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 250 nH | ±20% | 47.5 A | 88.5A | Shielded | 0.165mOhm | - | 300MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1390 | 0.551" L x 0.512" W (14.00mm x 13.00mm) | 0.374" (9.50mm) |
|
VLBU9664100LT-R10LFIXED IND 100NH 75A 0.125MOHM SM |
141 | - |
|
数据表 |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±15% | 75 A | 110A | Unshielded | 0.125mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.394" (10.00mm) |
|
SLF12575T-151M1R5-HFIXED IND 150UH 1.5A 210MOHM SMD |
7,200 | - |
|
数据表 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.5 A | 1.5A | Shielded | 210mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
PGL6215.111HLTINDUCTOR PWR BEAD 105NH 77A |
4,550 | - |
|
数据表 |
PGL6215.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 105 nH | ±15% | 77 A | 125A | Shielded | 0.125mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
744776381FIXED IND 8MH 200MA 16 OHM SMD |
1,233 | - |
|
数据表 |
WE-ASI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8 mH | ±10% | 200 mA | 200mA | Unshielded | 16Ohm Max | - | 500kHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.402" L x 0.354" W (10.20mm x 9.00mm) | 0.272" (6.90mm) |
|

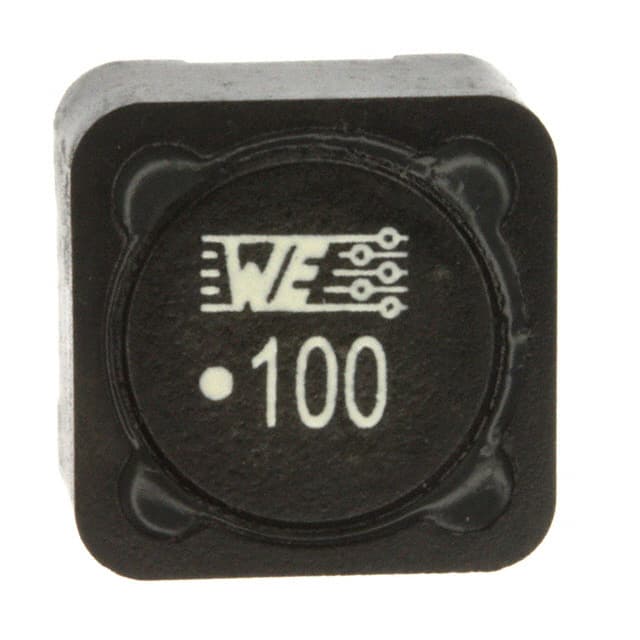

74477010FIXED IND 10UH 6.2A 22 MOHM SMD |
16,638 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 6.2 A | 6.6A | Shielded | 22mOhm Max | - | 18MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

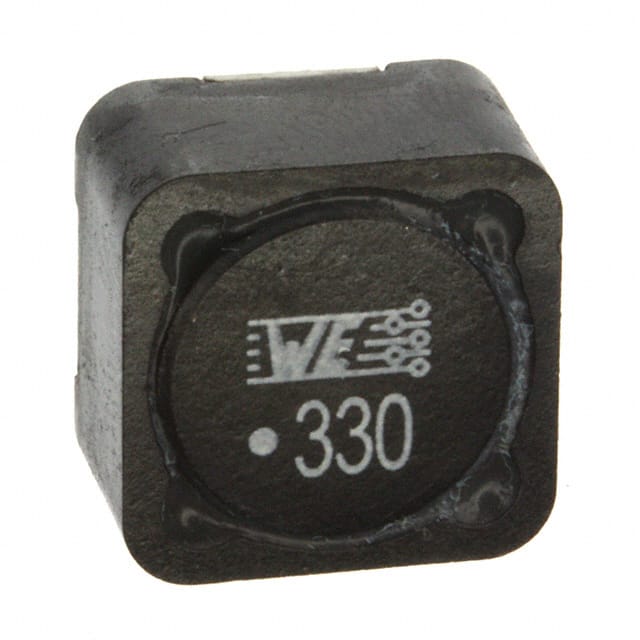

744770133FIXED IND 33UH 3.2A 64 MOHM SMD |
15,073 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.6 A | 3.9A | Shielded | 53mOhm Max | - | 8.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
7443331000FIXED IND 10UH 9A 23.1 MOHM SMD |
14,878 | - |
|
数据表 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 9 A | 8A | Shielded | 23.1mOhm Max | - | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.382" (9.70mm) |
|
74477030FIXED IND 1MH 600MA 1.82 OHM SMD |
4,458 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 600 mA | 700mA | Shielded | 1.82Ohm Max | - | 1.8MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
7443330220FIXED IND 2.2UH 16.5A 4.8MOHM SM |
3,902 | - |
|
数据表 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 16.5 A | 22A | Shielded | 4.8mOhm Max | - | 80MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.382" (9.70mm) |
|

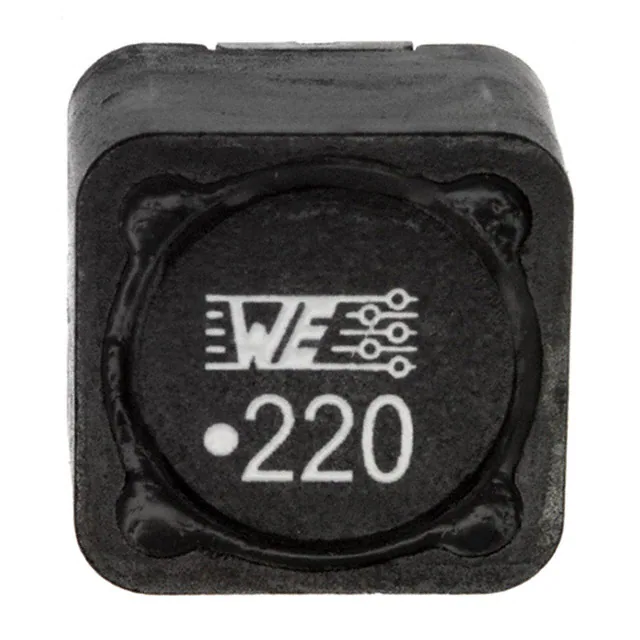

744770122FIXED IND 22UH 4.1A 43 MOHM SMD |
2,960 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4.6 A | 5A | Shielded | 43mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
744770218FIXED IND 180UH 1.4A 350MOHM SMD |
1,438 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 1.4 A | 1.6A | Shielded | 350mOhm Max | - | 4.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
IHLP5050FDER4R7M01FIXED IND 4.7UH 13.5A 8.7MOHM SM |
1,428 | - |
|
数据表 |
IHLP-5050FD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 13.5 A | 32A | Shielded | 8.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.256" (6.50mm) |
|
|
7443330820FIXED IND 8.2UH 11.5A 15MOHM SMD |
1,391 | - |
|
数据表 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 11.5 A | 8A | Shielded | 15mOhm Max | - | 36MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.382" (9.70mm) |
|
744770168FIXED IND 68UH 2.3A 140 MOHM SMD |
1,332 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.3 A | 2.5A | Shielded | 140mOhm Max | - | 6.4MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
7443330680FIXED IND 6.8UH 11.5A 15MOHM SMD |
1,215 | - |
|
数据表 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 11.5 A | 11A | Shielded | 15mOhm Max | - | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.382" (9.70mm) |
|

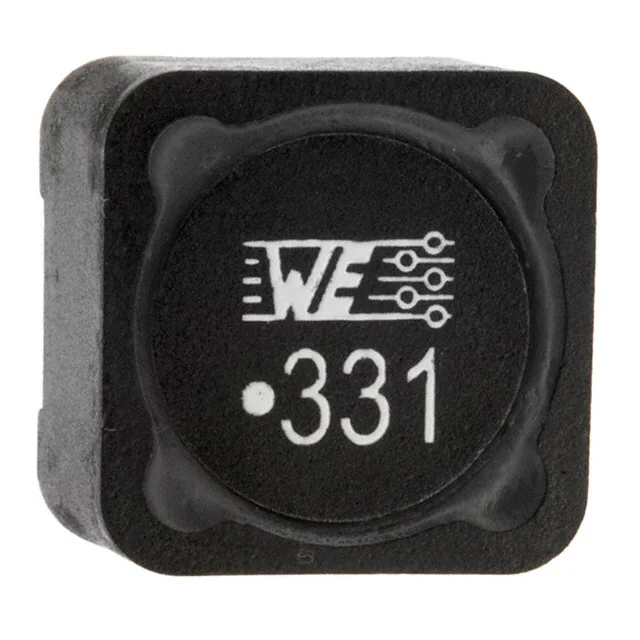

744770233FIXED IND 330UH 1.1A 640MOHM SMD |
1,146 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 1.1 A | 1.1A | Shielded | 640mOhm Max | - | 3MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

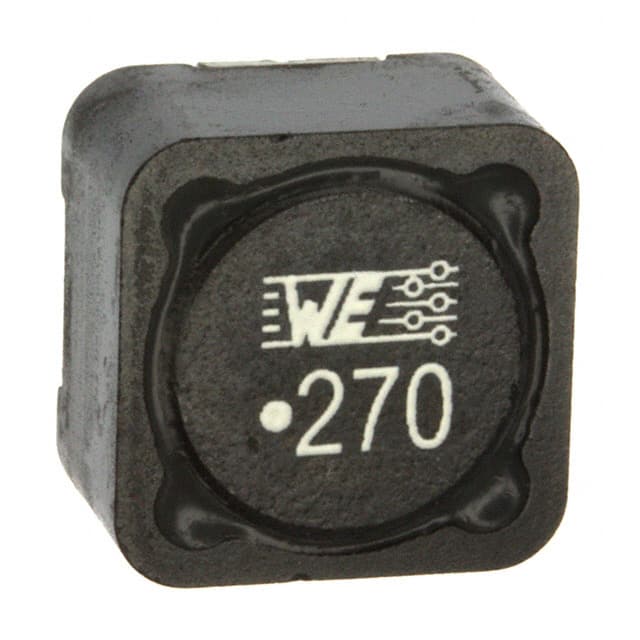

744770127FIXED IND 27UH 3.7A 46 MOHM SMD |
768 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 3.7 A | 3.8A | Shielded | 46mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
