固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-1,2.jpg)
|
DFE2MCAHR15MJ0LFIXED IND 150NH 4.8A 21 MOHM SMD |
3,000 | - |
|
数据表 |
DFE2M | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 150 nH | ±20% | 4.8 A | 6.1A | Shielded | 21mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
DFE2MCAHR24MJ0LFIXED IND 240NH 4.2A 25 MOHM SMD |
2,937 | - |
|
数据表 |
DFE2M | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 240 nH | ±20% | 4.2 A | 5A | Shielded | 25mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
LQH44NN470K03LFIXED IND 47UH 640MA 429MOHM SMD |
2,643 | - |
|
数据表 |
LQH44 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 640 mA | - | Unshielded | 429mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1515 (4040 Metric) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.177" (4.50mm) |
|
744764005FIXED IND 560NH 450MA 550MOHM SM |
2,632 | - |
|
数据表 |
WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 nH | ±10% | 450 mA | - | Unshielded | 550mOhm Max | 30 @ 25.2MHz | 420MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
RCH895NP-470KFIXED IND 47UH 990MA 100 MOHM TH |
2,417 | - |
|
数据表 |
RCH-895 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 990 mA | 1.3A | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.374" (9.50mm) |
|
|
DFE2MCAH2R2MJ0LFIXED IND 2.2UH 1.4A 169MOHM SMD |
2,224 | - |
|
数据表 |
DFE2M | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 1.4 A | 1.7A | Shielded | 169mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
VLS4012HBX-220MFIXED IND 22UH 1.28A 648MOHM SMD |
2,214 | - |
|
数据表 |
VLS-HBX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 22 µH | ±20% | 1.28 A | 1.57A | Shielded | 648mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
SDE0805A-100MFIXED IND 10UH 3.2A 70 MOHM SMD |
1,632 | - |
|
数据表 |
SDE0805A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.2 A | 2.6A | Unshielded | 70mOhm Max | - | 27.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|

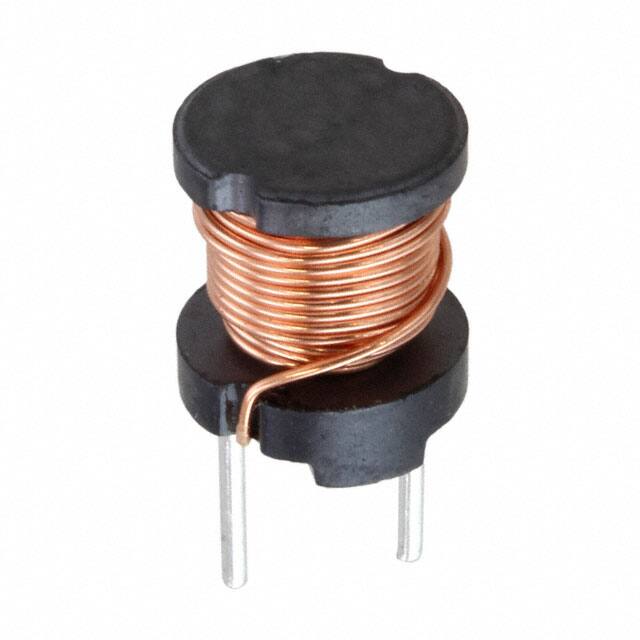

RCH895NP-151KFIXED IND 150UH 610MA 270MOHM TH |
1,198 | - |
|
数据表 |
RCH-895 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 610 mA | 740mA | Unshielded | 270mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.374" (9.50mm) |
|
CDRH5D28NP-2R5NCFIXED IND 2.5UH 2.6A 18 MOHM SMD |
42,626 | - |
|
数据表 |
CDRH5D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.5 µH | ±30% | 2.6 A | - | Shielded | 18mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
|
|
CDRH5D28NP-680NCFIXED IND 68UH 520MA 355MOHM SMD |
27,899 | - |
|
数据表 |
CDRH5D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±30% | 520 mA | - | Shielded | 355mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
|
ECS-MPIL0630-150MCFIXED IND 15UH 4A 95 MOHM SMD |
13,606 | - |
|
数据表 |
ECS-MPIL0630 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 4 A | - | Shielded | 95mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.291" L x 0.260" W (7.40mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SDE0805A-471KFIXED IND 470UH 550MA 1.7OHM SMD |
5,214 | - |
|
数据表 |
SDE0805A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 550 mA | 400mA | Unshielded | 1.7Ohm Max | - | 3.6MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
ASPIAIG-S8050-101M-TFIXED IND 100UH 1.25A 326MOHM SM |
4,624 | - |
|
数据表 |
ASPIAIG-S8050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 100 µH | ±20% | 1.25 A | 1.6A | Shielded | 326mOhm | - | 4.4MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.205" (5.20mm) |
|
IMC2220ER100KFIXED IND 10UH 690MA 210MOHM SMD |
4,336 | - |
|
数据表 |
IMC-2220 | 2220 (5650 Metric) | Tape & Reel (TR) | Active | - | - | 10 µH | ±10% | 690 mA | - | Unshielded | 210mOhm Max | 10 @ 2.52MHz | 19MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.221" L x 0.197" W (5.61mm x 5.00mm) | 0.165" (4.20mm) |
|
|
SDE0805A-151KFIXED IND 150UH 900MA 640MOHM SM |
2,319 | - |
|
数据表 |
SDE0805A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 900 mA | 720mA | Unshielded | 640mOhm Max | - | 7.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|

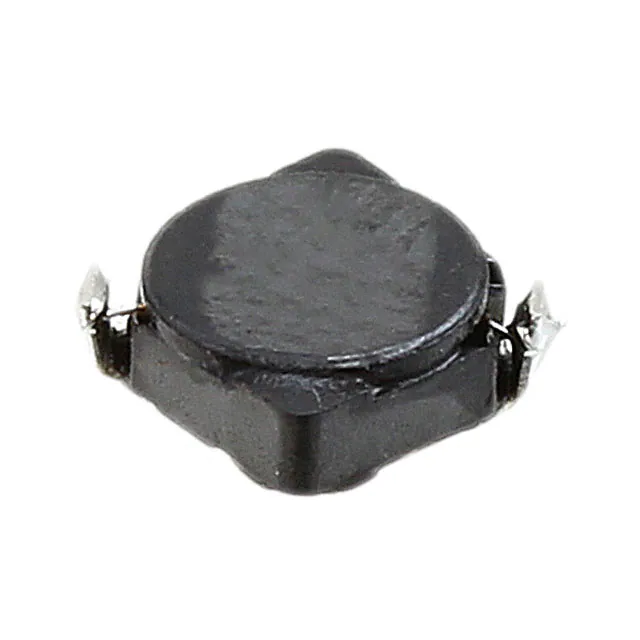

CDRH4D18NP-2R2NCFIXED IND 2.2UH 1.32A 75MOHM SMD |
2,000 | - |
|
数据表 |
CDRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 1.32 A | - | Shielded | 75mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.079" (2.00mm) |
|
|
DFE2MCAHR33MJ0LFIXED IND 330NH 3.9A 29 MOHM SMD |
1,896 | - |
|
- |
DFE2M | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 330 nH | ±20% | 3.9 A | 4.2A | Shielded | 29mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
ASPIAIG-S8050-6R8M-TFIXED IND 6.8UH 4.2A 29 MOHM SMD |
1,020 | - |
|
数据表 |
ASPIAIG-S8050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 6.8 µH | ±20% | 4.2 A | 6.1A | Shielded | 29mOhm | - | 19MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.205" (5.20mm) |
|
TYS8040331M-10FIXED IND 330UH 640MA 889MOHM SM |
19,957 | - |
|
数据表 |
TYS8040 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±20% | 640 mA | 680mA | Shielded | 889mOhm Max | - | 2.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
