固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NS10145T220MNAFIXED IND 22UH 2.55A 62.4MOHM SM |
1,846 | - |
|
数据表 |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.55 A | 2.87A | Shielded | 62.4mOhm Max | - | 13.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
NS10145T331MNAFIXED IND 330UH 640MA 840MOHM SM |
1,674 | - |
|
数据表 |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 640 mA | 710mA | Shielded | 840mOhm Max | - | 3.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
NS10145T101MNAFIXED IND 100UH 1.25A 240MOHM SM |
1,655 | - |
|
数据表 |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.25 A | 1.29A | Shielded | 240mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
SRU2016-4R7YFIXED IND 4.7UH 1.15A 215MOHM SM |
1,506 | - |
|
数据表 |
SRU2016 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 1.15 A | 740mA | Shielded | 215mOhm Max | 8 @ 7.96MHz | 80MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.071" (1.80mm) |
|
B82432T1154K000FIXED IND 150UH 160MA 6 OHM SMD |
31,135 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 160 mA | - | Unshielded | 6Ohm Max | 20 @ 796kHz | 6.1MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
B82432T1152K000FIXED IND 1.5UH 1.15A 110MOHM SM |
18,357 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 1.15 A | - | Unshielded | 110mOhm Max | 10 @ 7.96MHz | 80MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
AMPLA4020S-1R0MTFIXED IND 1UH 5A 27 MOHM SMD |
6,608 | - |
|
数据表 |
AMPLA4020S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 1 µH | ±20% | 5 A | 8.5A | Shielded | 27mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
B82432T1824K000FIXED IND 820UH 80MA 27 OHM SMD |
6,392 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 80 mA | - | Unshielded | 27Ohm Max | 20 @ 796kHz | 2.4MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
DRC-V-821KFIXED IND 820UH 410MA 1.8OHM TH |
4,982 | - |
|
数据表 |
DRC-V | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 410 mA | 350mA | Unshielded | 1.8Ohm Max | 10 @ 796kHz | 1.5MHz | - | -40°C ~ 125°C | 796 kHz | - | Through Hole | Radial | 0.343" Dia (8.70mm) | 0.492" (12.50mm) |
|
LMLP07B7M6R8DTASFIXED IND 6.8UH 4A 72 MOHM SMD |
4,498 | - |
|
数据表 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 4 A | 7A | Shielded | 72mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.094" (2.40mm) |
|
1217AS-H-3R3N=P3FIXED IND 3.3UH 6.8A 14.4MOHM SM |
4,357 | - |
|
数据表 |
DEM8045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 6.8 A | 7.7A | Shielded | 14.4mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
CR54NP-5R6MCFIXED IND 5.6UH 2.48A 49.4 MOHM |
3,905 | - |
|
数据表 |
CR54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 2.48 A | - | Unshielded | 49.4mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.228" L x 0.209" W (5.80mm x 5.30mm) | 0.191" (4.85mm) |
|
ASPI-0530LR-1R5M-T2FIXED IND 1.5UH 8A 20 MOHM SMD |
3,874 | - |
|
数据表 |
ASPI-0530LR | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 8 A | 7A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.118" (3.00mm) |
|
ASPI-0520LR-4R7M-T2FIXED IND 4.7UH 3.7A 58 MOHM SMD |
3,423 | - |
|
数据表 |
ASPI-0520LR | 2220 (5650 Metric) | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 3.7 A | 3.7A | Unshielded | 58mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.083" (2.10mm) |
|
|
1217AS-H-2R2N=P3FIXED IND 2.2UH 8.7A 9.9MOHM SMD |
3,179 | - |
|
数据表 |
DEM8045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 8.7 A | 9.3A | Shielded | 9.9mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
AIUR-02H-102KFIXED IND 1MH 220MA 1.3 OHM TH |
3,146 | - |
|
数据表 |
AIUR-02H | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 220 mA | 510mA | Unshielded | 1.3Ohm Max | 15 @ 250kHz | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.472" (12.00mm) |
|

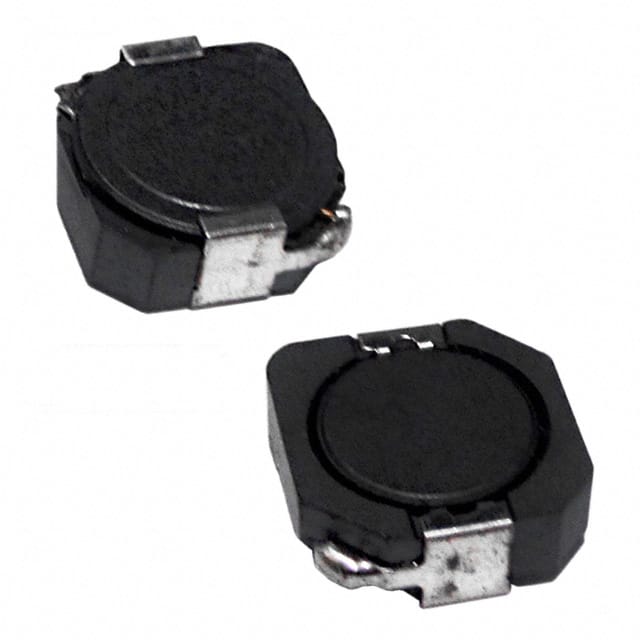

ASPI-0602S-3R3M-TFIXED IND 3.3UH 3A 40 MOHM SMD |
3,040 | - |
|
数据表 |
ASPI-0602S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 3 A | - | Shielded | 40mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|
|
1217AS-H-470M=P3FIXED IND 47UH 1.8A 204 MOHM SMD |
2,394 | - |
|
数据表 |
DEM8045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.8 A | 2.1A | Shielded | 204mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
|
DRC-V-473KFIXED IND 47MH 55MA 99OHM TH |
2,360 | - |
|
数据表 |
DRC-V | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 47 mH | ±10% | 55 mA | 30mA | Unshielded | 99Ohm Max | 20 @ 79.6kHz | 100kHz | - | -40°C ~ 125°C | 79.6 kHz | - | Through Hole | Radial | 0.343" Dia (8.70mm) | 0.492" (12.50mm) |
|
|
1217AS-H-8R2M=P3FIXED IND 8.2UH 4.5A 33.6MOHM SM |
2,256 | - |
|
数据表 |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 4.5 A | 4.8A | Shielded | 33.6mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
