固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-0520LR-3R3M-T2FIXED IND 3.3UH 4.5A 50 MOHM SMD |
1,938 | - |
|
数据表 |
ASPI-0520LR | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 4.5 A | 4.2A | Unshielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.083" (2.10mm) |
|
1217AS-H-1R5N=P3FIXED IND 1.5UH 9.4A 7.6MOHM SMD |
1,112 | - |
|
数据表 |
DEM8045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 9.4 A | 11.2A | Shielded | 7.6mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|

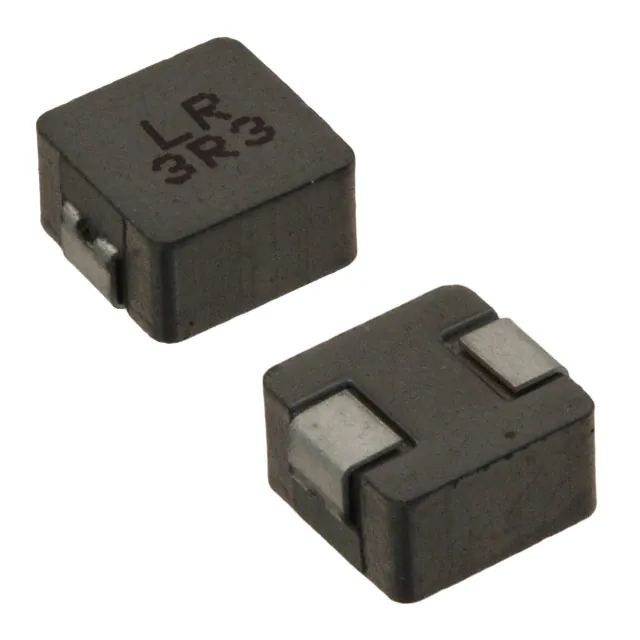

ASPI-0530LR-3R3M-T2FIXED IND 3.3UH 6.5A 36 MOHM SMD |
1,064 | - |
|
数据表 |
ASPI-0530LR | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 6.5 A | 5A | Shielded | 36mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.118" (3.00mm) |
|
PA5402.102NLTFIXED IND 1UH 5A 27 MOHM SMD |
5,813 | - |
|
数据表 |
PA5402 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 5 A | 8.5A | Shielded | 27mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
CLF7045T-331M-DFIXED IND 330UH 420MA 1.236 OHM |
5,484 | - |
|
数据表 |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 420 mA | 490mA | Shielded | 1.236Ohm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|

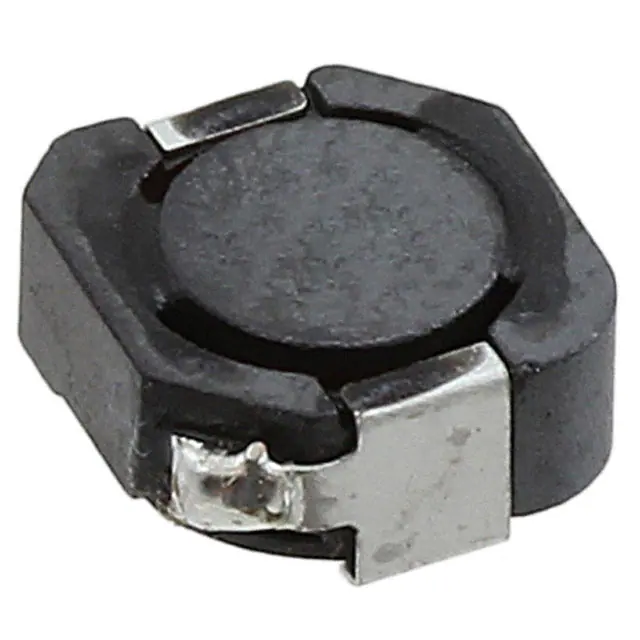

CDRH5D28RNP-3R3NCFIXED IND 3.3UH 2.3A 20.3MOHM SM |
4,152 | - |
|
数据表 |
CDRH5D28R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 2.3 A | - | Shielded | 20.3mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.232" W (6.00mm x 5.90mm) | 0.118" (3.00mm) |
|
SRR4528A-2R2YFIXED IND 2.2UH 3.78A 23MOHM SMD |
3,460 | - |
|
数据表 |
SRR4528A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 3.78 A | 2.32A | Shielded | 23mOhm Max | - | 76MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.110" (2.80mm) |
|
MWSA0402S-1R0MTFIXED IND 1UH 6A 27 MOHM SMD |
3,034 | - |
|
数据表 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 1 µH | ±20% | 6 A | 7A | Shielded | 27mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
MWSA0402S-R47MTFIXED IND 470NH 7.5A 14MOHM SMD |
2,745 | - |
|
数据表 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 470 nH | ±20% | 7.5 A | 9.5A | Shielded | 14mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
SRR3818A-470MFIXED IND 47UH 560MA 1.03OHM SMD |
2,574 | - |
|
数据表 |
SRR3818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 560 mA | 300mA | Shielded | 1.03Ohm Max | - | 15MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
|
SDR7045-330MFIXED IND 33UH 1.22A 150MOHM SMD |
2,389 | - |
|
数据表 |
SDR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.22 A | 1.32A | Unshielded | 150mOhm Max | 20 @ 2.52MHz | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
SWPA6020S100MTFIXED IND 10UH 1.4A 137MOHM SMD |
2,297 | - |
|
数据表 |
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.4 A | 2.1A | Shielded | 137mOhm Max | - | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
SRR4818A-4R7YFIXED IND 4.7UH 2.6A 80 MOHM SMD |
2,121 | - |
|
数据表 |
SRR4818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 2.6 A | 1.5A | Shielded | 80mOhm Max | - | 55MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
744910054FIXED IND 5.45NH 1.6A 8 MOHM SMD |
1,754 | - |
|
数据表 |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 5.45 nH | ±5% | 1.6 A | - | Unshielded | 8mOhm Max | 100 @ 800MHz | 7GHz | AEC-Q200 | -40°C ~ 125°C | 800 MHz | - | Surface Mount | 1322 | 0.087" L x 0.056" W (2.21mm x 1.42mm) | 0.060" (1.52mm) |
|
SRR4828A-680MFIXED IND 68UH 900MA 370MOHM SMD |
1,743 | - |
|
数据表 |
SRR4828A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 900 mA | 380mA | Shielded | 370mOhm Max | - | 11MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
744910025FIXED IND 2.55NH 1.6A 5 MOHM SMD |
1,645 | - |
|
数据表 |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 2.55 nH | ±5% | 1.6 A | - | Unshielded | 5mOhm Max | 100 @ 800MHz | 8.2GHz | AEC-Q200 | -40°C ~ 125°C | 800 MHz | - | Surface Mount | 1322 | 0.087" L x 0.056" W (2.21mm x 1.42mm) | 0.060" (1.52mm) |
|
SBC1-681-251FIXED IND 680UH 250MA 3.4 OHM TH |
1,596 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 250 mA | 180mA | Unshielded | 3.4Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.217" Dia (5.50mm) | 0.335" (8.50mm) |
|
|
MWSA0402S-100MTFIXED IND 10UH 1.6A 282MOHM SMD |
1,543 | - |
|
数据表 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 10 µH | ±20% | 1.6 A | 2A | Shielded | 282mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
744911098FIXED IND 9.85NH 1.6A 13MOHM SMD |
1,508 | - |
|
数据表 |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 9.85 nH | ±5% | 1.6 A | - | Unshielded | 13mOhm Max | 100 @ 800MHz | 5.2GHz | AEC-Q200 | -40°C ~ 125°C | 800 MHz | - | Surface Mount | 1340 | 0.159" L x 0.056" W (4.04mm x 1.42mm) | 0.060" (1.52mm) |
|
|
744911056FIXED IND 5.6NH 1.6A 9 MOHM SMD |
1,330 | - |
|
数据表 |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 5.6 nH | ±5% | 1.6 A | - | Unshielded | 9mOhm Max | 100 @ 800MHz | 6.5GHz | AEC-Q200 | -40°C ~ 125°C | 800 MHz | - | Surface Mount | 1340 | 0.159" L x 0.056" W (4.04mm x 1.42mm) | 0.060" (1.52mm) |
