固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74406043068FIXED IND 6.8UH 2.05A 64MOHM SMD |
1,680 | - |
|
数据表 |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.05 A | 1.52A | Shielded | 64mOhm Max | - | 66MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4828 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
DR1030-101-RFIXED IND 100UH 860MA 450MOHM SM |
1,601 | - |
|
数据表 |
DR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 860 mA | 1.05A | Shielded | 450mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.118" (3.00mm) |
|
HCMA0703-R15-RFIXED IND 150NH 26A 2.5 MOHM SMD |
1,307 | - |
|
数据表 |
HCMA0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 150 nH | ±20% | 26 A | 52A | Shielded | 2.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|

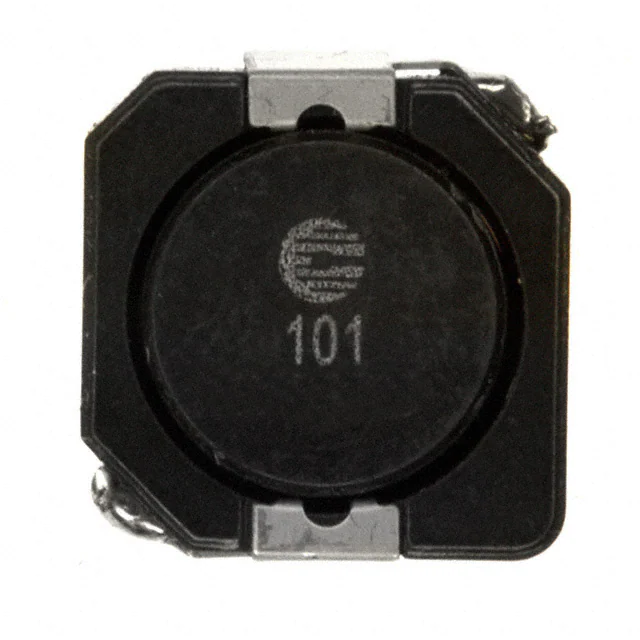

DR1050-101-RFIXED IND 100UH 1.52A 205MOHM SM |
75,405 | - |
|
数据表 |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 1.52 A | 1.45A | Shielded | 205mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|
IHLP1212AEERR33M11FIXED IND 330NH 7.8A 13.8MOHM SM |
20,526 | - |
|
数据表 |
IHLP-1212AE-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 7.8 A | 7A | Shielded | 13.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.059" (1.50mm) |
|
B82472G4105M000FIXED IND 1MH 180MA 4.78 OHM SMD |
18,170 | - |
|
数据表 |
B82472G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 180 mA | 130mA | Shielded | 4.78Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
MPI2510V2-3R3-RFIXED IND 3.3UH 1.6A 170MOHM SMD |
14,833 | - |
|
数据表 |
MPI25-V2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 1.6 A | 2.1A | Shielded | 170mOhm Max | - | 35MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.041" (1.05mm) |
|
ASPI-104S-220M-TFIXED IND 22UH 2.5A 73 MOHM SMD |
7,770 | - |
|
数据表 |
ASPI-104S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.5 A | 2.9A | Shielded | 73mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.157" (4.00mm) |
|
CR75NP-680KCFIXED IND 68UH 850MA 280MOHM SMD |
7,400 | - |
|
数据表 |
CR75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 850 mA | - | Unshielded | 280mOhm Max | - | 11MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|

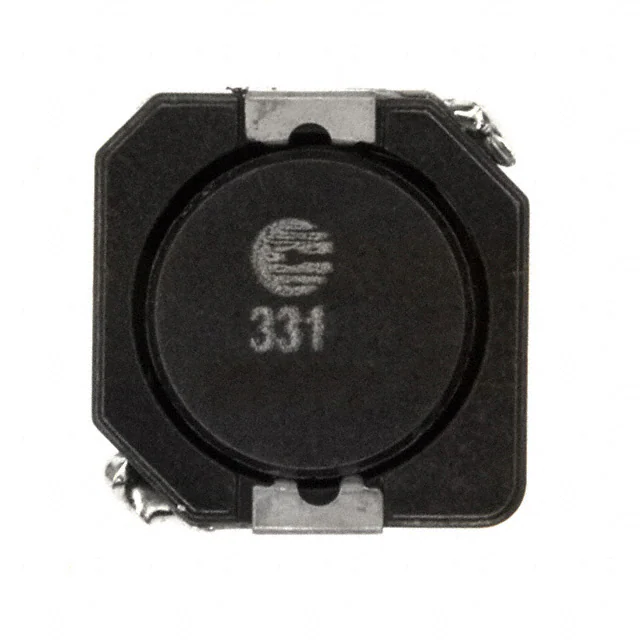

DR1050-331-RFIXED IND 330UH 830MA 693MOHM SM |
6,047 | - |
|
数据表 |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±30% | 830 mA | 800mA | Shielded | 693mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|

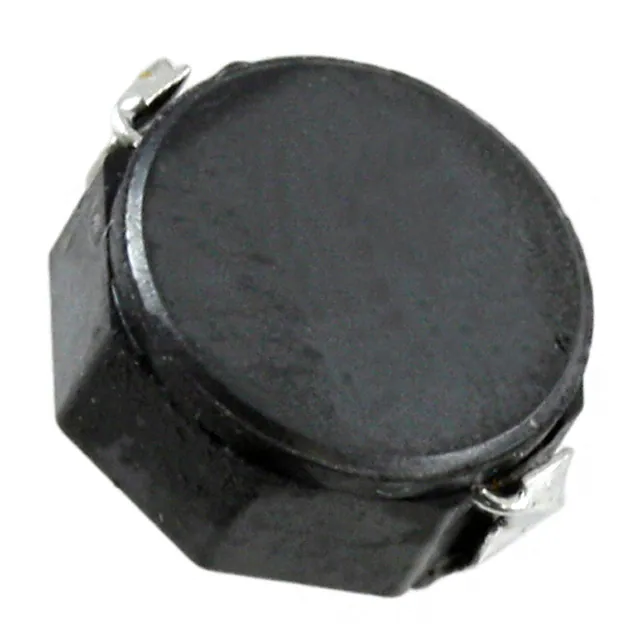

CDRH8D38NP-470NCFIXED IND 47UH 1.42A 189MOHM SMD |
5,728 | - |
|
数据表 |
CDRH8D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±30% | 1.42 A | 1.52A | Shielded | 189mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
SBCP-47HY2R2BFIXED IND 2.2UH 2.6A 29 MOHM TH |
5,574 | - |
|
数据表 |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.6 A | 3.2A | Unshielded | 29mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
VCMT063T-150MN5TFIXED IND 15UH 3.2A 110MOHM SMD |
5,187 | - |
|
数据表 |
VCMT063T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 15 µH | ±20% | 3.2 A | 2.8A | Unshielded | 110mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SBCP-47HY102BFIXED IND 1MH 150MA 6 OHM TH |
5,113 | - |
|
数据表 |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 150 mA | 160mA | Unshielded | 6Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
BMRF00101040220MA1FIXED IND 22UH 4.5A 64 MOHM SMD |
4,222 | - |
|
数据表 |
BMRF | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 4.5 A | 4.5A | Shielded | 64mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.398" W (11.60mm x 10.10mm) | 0.157" (4.00mm) |
|
AIAC-4125C-R206J-TFIXED IND 206NH 3A 10.5 MOHM SMD |
3,525 | - |
|
数据表 |
AIAC-4125C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 206 nH | ±5% | 3 A | - | Unshielded | 10.5mOhm Max | 100 @ 50MHz | 700MHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.354" L x 0.173" W (9.00mm x 4.40mm) | 0.197" (5.00mm) |
|
B82462A4223K000FIXED IND 22UH 800MA 260MOHM SMD |
3,092 | - |
|
数据表 |
B82462-A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 800 mA | 1.28A | Unshielded | 260mOhm Max | - | 21MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
6000-102K-RCFIXED IND 1MH 510MA 2.9 OHM TH |
2,785 | - |
|
数据表 |
6000 | Radial, Vertical Cylinder | Bulk | Not For New Designs | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 510 mA | - | Unshielded | 2.9Ohm Max | 20 @ 252kHz | 1.3MHz | - | -55°C ~ 105°C | 252 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
SBCP-47HY3R3BFIXED IND 3.3UH 2.3A 37 MOHM TH |
2,730 | - |
|
数据表 |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.3 A | 2.7A | Unshielded | 37mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
PA5405.152NLTFIXED IND 1.5UH 19A 5.5MOHM SMD |
2,163 | - |
|
数据表 |
PA5405 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 19 A | 35A | Shielded | 5.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.138" (3.50mm) |
