固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRU1038-5R2YFIXED IND 5.2UH 4.6A 22 MOHM SMD |
1,085 | - |
|
数据表 |
SRU1038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.2 µH | ±30% | 4.6 A | 4.8A | Shielded | 22mOhm | 12 @ 7.96MHz | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
SRU1028-151YFIXED IND 150UH 650MA 518MOHM SM |
1,033 | - |
|
数据表 |
SRU1028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±30% | 650 mA | 650mA | Shielded | 518mOhm | 18 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
SLF10145T-471MR47-PFFIXED IND 470UH 470MA 1.236 OHM |
14,997 | - |
|
数据表 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 470 mA | 470mA | Shielded | 1.236Ohm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|
CLF6045T-4R7N-HFIXED IND 4.7UH 3.2A 23 MOHM SMD |
4,229 | - |
|
数据表 |
CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 3.2 A | 2.5A | Shielded | 23mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.177" (4.50mm) |
|
SPM6550T-2R2MFIXED IND 2.2UH 13.4A 10.7 MOHM |
2,879 | - |
|
数据表 |
SPM | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 13.4 A | 7.9A | Shielded | 10.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.197" (5.00mm) |
|
MPXV1D0830L220FIXED IND 22UH 3.6A 134.5MOHM SM |
2,587 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 22 µH | ±20% | 3.6 A | 5A | Shielded | 134.5mOhm Max | - | 8.1MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.118" (3.00mm) |
|
TFM322512ALVA1R5MTAAFIXED IND 1.5UH 3.2A 57 MOHM SMD |
1,865 | - |
|
数据表 |
TFM-ALVA | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1.5 µH | ±20% | 3.2 A | 4A | Shielded | 57mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
SLF10145T-3R3N3R7-PFFIXED IND 3.3UH 3.7A 19.3MOHM SM |
1,628 | - |
|
数据表 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.7 A | 4.9A | Shielded | 19.3mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|
HCMA0703-2R2-RFIXED IND 2.2UH 8A 20 MOHM SMD |
1,403 | - |
|
数据表 |
HCMA0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 8 A | 14A | Shielded | 20mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
SBC4-471-491FIXED IND 470UH 490MA 950MOHM TH |
1,293 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 490 mA | 680mA | Unshielded | 950mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.571" (14.50mm) |
|
SRU1048-331YFIXED IND 330UH 650MA 490MOHM SM |
61,862 | - |
|
数据表 |
SRU1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±30% | 650 mA | 520mA | Shielded | 490mOhm | 18 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
|
SRU1048-560YFIXED IND 56UH 1.6A 110 MOHM SMD |
30,656 | - |
|
数据表 |
SRU1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±30% | 1.6 A | 1.4A | Shielded | 110mOhm | 26 @ 2.52MHz | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
|
SRU1048-3R0YFIXED IND 3UH 6.2A 7.2 MOHM SMD |
14,946 | - |
|
数据表 |
SRU1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3 µH | ±30% | 6.2 A | 6A | Shielded | 7.2mOhm | 14 @ 7.96MHz | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
CDRH74NP-150MC-BFIXED IND 15UH 1.47A 81 MOHM SMD |
7,754 | - |
|
数据表 |
CDRH74 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 1.47 A | - | Shielded | 81mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SRU1048-1R5YFIXED IND 1.5UH 7A 4.3 MOHM SMD |
7,599 | - |
|
数据表 |
SRU1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 7 A | 7.2A | Shielded | 4.3mOhm | 14 @ 7.96MHz | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|

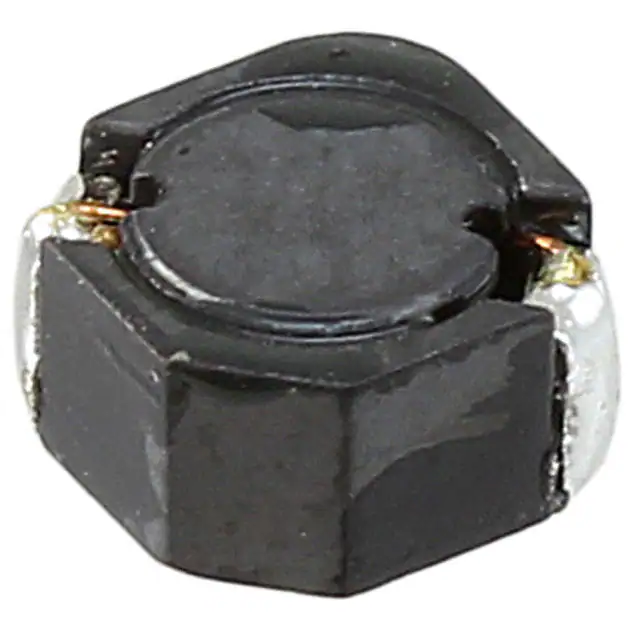

CDRH4D28CNP-100PCFIXED IND 10UH 1.26A 106MOHM SMD |
6,889 | - |
|
数据表 |
CDRH4D28C | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±25% | 1.26 A | - | Shielded | 106mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.118" (3.00mm) |
|
|
SRU1048-2R2YFIXED IND 2.2UH 6.5A 5.3MOHM SMD |
5,843 | - |
|
数据表 |
SRU1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 6.5 A | 6.3A | Shielded | 5.3mOhm | 14 @ 7.96MHz | 55MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
CDRH50D28BT150NP-220MCFIXED IND 22UH 1.14A 150MOHM SMD |
5,635 | - |
|
数据表 |
CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 1.14 A | 1.2A | Shielded | 150mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
PA2983.650HLTFIXED IND 65NH 24A 0.33 MOHM SMD |
5,094 | - |
|
数据表 |
PA2893HL | Nonstandard | Tape & Reel (TR) | Active | - | - | 65 nH | ±15% | 24 A | 29.5A | Shielded | 0.33mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.157" W (5.00mm x 4.00mm) | 0.157" (4.00mm) |
|
LMLP0707M5R6DTASFIXED IND 5.6UH 4A 68 MOHM SMD |
4,966 | - |
|
数据表 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 5.6 µH | ±20% | 4 A | 6A | Shielded | 68mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.079" (2.00mm) |
