固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH74NP-151MC-BFIXED IND 150UH 460MA 880MOHM SM |
4,603 | - |
|
数据表 |
CDRH74 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±20% | 460 mA | - | Shielded | 880mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
PCMB042T-1R0MSFIXED IND 1UH 4.5A 27 MOHM SMD |
3,829 | - |
|
数据表 |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 4.5 A | 7A | Unshielded | 27mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.163" L x 0.157" W (4.15mm x 4.00mm) | 0.071" (1.80mm) |
|
IHLP4040DZER100M5AFIXED IND 10UH 6.5A 33.06MOHM SM |
3,271 | - |
|
数据表 |
IHLP-4040DZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 6.5 A | 8.5A | Shielded | 33.06mOhm Max | - | 11.5MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
CDRH50D28BT150NP-4R7NCFIXED IND 4.7UH 2.5A 52MOHM SMD |
2,843 | - |
|
数据表 |
CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 2.5 A | 2.4A | Shielded | 52mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
CDRH4D28CLDNP-6R8PCFIXED IND 6.8UH 2.4A 48.8MOHM SM |
2,824 | - |
|
数据表 |
CDRH4D28C/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±25% | 2.4 A | 1.2A | Shielded | 48.8mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.118" (3.00mm) |
|
CDRH2D18/HPNP-1R7NCFIXED IND 1.7UH 2.2A 44 MOHM SMD |
2,575 | - |
|
数据表 |
CDRH2D18/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.7 µH | ±30% | 2.2 A | 1.85A | Shielded | 44mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
CDRH2D18/LDNP-3R3NCFIXED IND 3.3UH 2.1A 54 MOHM SMD |
2,427 | - |
|
数据表 |
CDRH2D18/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 2.1 A | 750mA | Shielded | 54mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
|
CDRH2D18/LDNP-6R8NCFIXED IND 6.8UH 1.32A 106MOHM SM |
2,292 | - |
|
数据表 |
CDRH2D18/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 1.32 A | 520mA | Shielded | 106mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
SRU1048-820YFIXED IND 82UH 1.3A 149 MOHM SMD |
2,197 | - |
|
数据表 |
SRU1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±30% | 1.3 A | 1.1A | Shielded | 149mOhm | 24 @ 2.52MHz | 5.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
TFM322512ALVA1R0MTAAFIXED IND 1UH 4A 37 MOHM SMD |
2,039 | - |
|
数据表 |
TFM-ALVA | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1 µH | ±20% | 4 A | 4.6A | Shielded | 37mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
SDR1105-470KLFIXED IND 47UH 2.2A 170 MOHM SMD |
1,966 | - |
|
数据表 |
SDR1105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 2.2 A | 4A | Unshielded | 170mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.197" (5.00mm) |
|
CDRH50D28BT150NP-101MCFIXED IND 100UH 460MA 780MOHM SM |
1,806 | - |
|
数据表 |
CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 460 mA | 550mA | Shielded | 780mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
PM54-151K-RCFIXED IND 150UH 400MA 1.1OHM SMD |
107,335 | - |
|
数据表 |
PM54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 400 mA | 540mA | Unshielded | 1.1Ohm | 20 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|
|
PM54-330L-RCFIXED IND 33UH 880MA 250MOHM SMD |
10,073 | - |
|
数据表 |
PM54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±15% | 880 mA | 1.1A | Unshielded | 250mOhm | 24 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|
IHLP1212BZEV3R3MA1IHLP-1212BZ-A1 3.3 20% EV E3 |
9,121 | - |
|
数据表 |
IHLP-1212BZ-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 3.3 µH | ±20% | 3.3 A | 4.5A | Shielded | 98.48mOhm Max | - | 41.6MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.079" (2.00mm) |
|
PM43-330K-RCFIXED IND 33UH 640MA 540MOHM SMD |
6,844 | - |
|
数据表 |
PM43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 640 mA | 990mA | Unshielded | 540mOhm | 23 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
SBCP-47HY101BFIXED IND 100UH 500MA 584MOHM TH |
5,643 | - |
|
数据表 |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 500 mA | 500mA | Unshielded | 584mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.335" (8.50mm) |
|
HCM0503-4R7-RFIXED IND 4.7UH 4.5A 60 MOHM SMD |
4,174 | - |
|
数据表 |
HCM0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 4.5 A | 5.5A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|

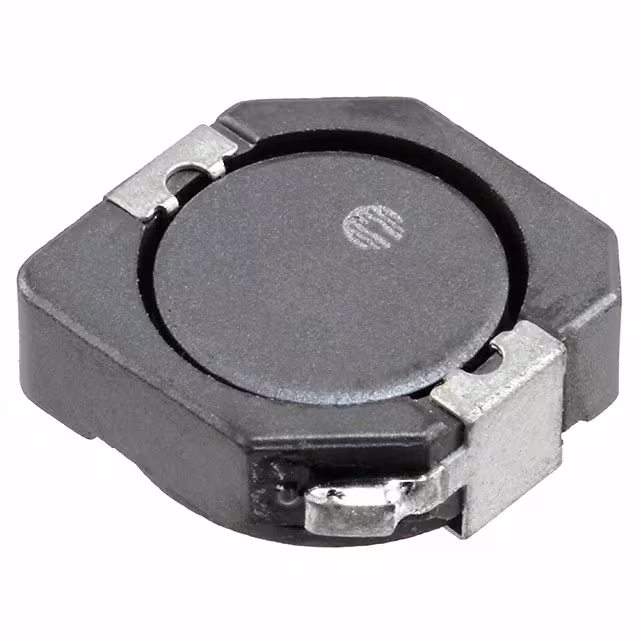

DR1040-101-RFIXED IND 100UH 1.25A 304MOHM SM |
3,252 | - |
|
数据表 |
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 1.25 A | 1.35A | Shielded | 304mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
SDR1307-4R7MLFIXED IND 4.7UH 7A 10 MOHM SMD |
2,912 | - |
|
数据表 |
SDR1307 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 7 A | 13A | Unshielded | 10mOhm Max | 25 @ 7.96MHz | 36MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.287" (7.30mm) |
