固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLF7045T-221MR40-HFIXED IND 220UH 400MA 996MOHM SM |
1,375 | - |
|
数据表 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 400 mA | 400mA | Shielded | 996mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
74404064015FIXED IND 1.5UH 4.95A 12MOHM SMD |
1,279 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 6.2 A | 9.7A | Shielded | 12mOhm | - | 115MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6045 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
CLF7045T-6R8N-HFIXED IND 6.8UH 3.3A 27 MOHM SMD |
1,188 | - |
|
数据表 |
CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 3.3 A | 3A | Shielded | 27mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.177" (4.50mm) |
1.2mm.jpg)
|
744383340033FIXED IND 330NH 4.8A 22.8MOHM SM |
985 | - |
|
数据表 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 330 nH | ±30% | 4.8 A | 11.1A | Shielded | 22.8mOhm Max | - | 140MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
74438334068FIXED IND 6.8UH 880MA 423.4 MOHM |
690 | - |
|
数据表 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 6.8 µH | ±20% | 880 mA | 2.7A | Shielded | 423.4mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
74438333047FIXED IND 4.7UH 900MA 409MOHM SM |
568 | - |
|
数据表 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 900 mA | 2.4A | Shielded | 409mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
74479288147FIXED IND 470NH 3.1A 34 MOHM SMD |
566 | - |
|
数据表 |
WE-PMCI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±30% | 3.1 A | 6A | Shielded | 34mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
AIUR-06-222KFIXED IND 2.2MH 410MA 2.4 OHM TH |
321 | - |
|
数据表 |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 410 mA | 600mA | Unshielded | 2.4Ohm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
|
SLF7045T-220M1R3-HFIXED IND 22UH 1.3A 98.4MOHM SMD |
280 | - |
|
数据表 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.3 A | 1.3A | Shielded | 98.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
ASPI-0403S-472M-TFIXED IND 4.7MH 60MA 13.9OHM SMD |
7,747 | - |
|
数据表 |
ASPI-0403S | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 mH | ±20% | 60 mA | - | Shielded | 13.9Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
IHLP1616BZERR47M01FIXED IND 470NH 5.6A 18 MOHM SMD |
6,979 | - |
|
数据表 |
IHLP-1616BZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 5.6 A | 11.5A | Shielded | 18mOhm Max | - | 97MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
CDRH8D43HPNP-150NCFIXED IND 15UH 2A 75 MOHM SMD |
4,873 | - |
|
数据表 |
CDRH8D43/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±30% | 2 A | 3.7A | Shielded | 75mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.185" (4.70mm) |
|
BPSC00131380330M00FIXED IND 33UH 64.8 MOHM SMD |
4,000 | - |
|
数据表 |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | - | 4.8A | Shielded | 64.8mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
B82476B1472M100FIXED IND 4.7UH 5.3A 16.5MOHM SM |
3,964 | - |
|
数据表 |
B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 5.3 A | 5.4A | Unshielded | 16.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
|
BPSC00131380220M00FIXED IND 22UH 48 MOHM SMD |
3,896 | - |
|
数据表 |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | - | 5.8A | Shielded | 48mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
CDRH8D43HPNP-330NCFIXED IND 33UH 1.4A 150 MOHM SMD |
2,500 | - |
|
数据表 |
CDRH8D43/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±30% | 1.4 A | 2.5A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.185" (4.70mm) |
|
B82476B1103M100FIXED IND 10UH 4.3A 27 MOHM SMD |
2,228 | - |
|
数据表 |
B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.3 A | 3.8A | Unshielded | 27mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
|
BPSC00131380101M00FIXED IND 100UH 170 MOHM SMD |
1,819 | - |
|
数据表 |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | - | 2.5A | Shielded | 170mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|

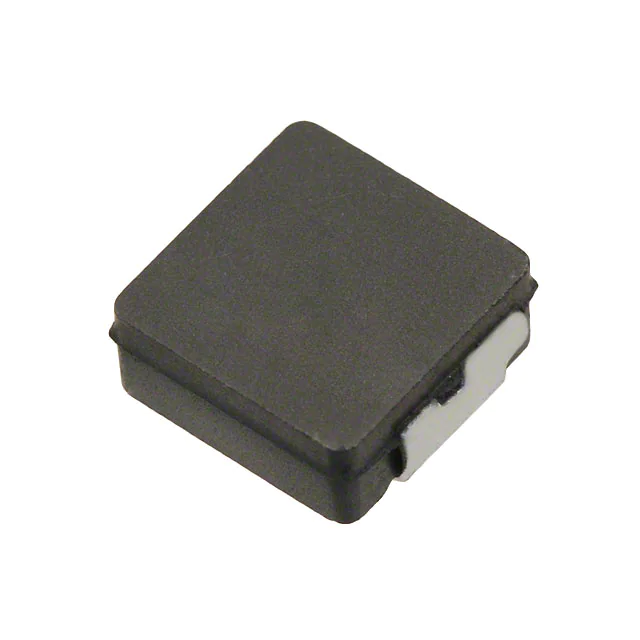

CDMC6D28NP-R20MCFIXED IND 200NH 17.4A 2.5MOHM SM |
1,680 | - |
|
数据表 |
CDMC6D28 | Nonstandard | Tape & Reel (TR) | Last Time Buy | - | Metal Composite | 200 nH | ±20% | 17.4 A | 21.7A | Shielded | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.285" L x 0.256" W (7.25mm x 6.50mm) | 0.118" (3.00mm) |
2nd.jpg)
|
VCUA32251BR47MS6FIXED IND 470NH 4.6A 22 MOHM SMD |
1,428 | - |
|
数据表 |
VCTA32251B | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Metal | 470 nH | ±20% | 4.6 A | 7A | Unshielded | 22mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
