固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM20-R033K-RC.033H 10% AXIAL MOLDED INDUCTR |
0 | - |
|
数据表 |
- | Axial | Bag | Active | Molded | - | 33 nH | ±10% | - | 2A | Unshielded | 35mOhm Max | 40 @ 25MHz | 850MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
AM20-R68K-RC.68H 10% AXIAL MOLDED INDUCTOR |
0 | - |
|
数据表 |
- | Axial | Bag | Active | Molded | - | 680 nH | ±10% | - | 495mA | Unshielded | 600mOhm Max | 28 @ 25MHz | 275MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
AS20-1R5K-RC1.5UH 10% AXIAL SHIELDED IND. |
0 | - |
|
数据表 |
AS20 | Axial | Bag | Active | - | - | 1.5 µH | ±10% | - | 825mA | Shielded | 260mOhm Max | 29 @ 7.9MHz | 136MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.100" Dia x 0.250" L (2.54mm x 6.35mm) | - |
|
|
AS20-6R8K-RC6.8UH 10% AXIAL SHIELDED IND. |
0 | - |
|
数据表 |
AS20 | Axial | Bag | Active | - | - | 6.8 µH | ±10% | - | 320mA | Shielded | 1.73Ohm Max | 46 @ 7.9MHz | 65MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.100" Dia x 0.250" L (2.54mm x 6.35mm) | - |
|
|
AS20-2R2K-RC2.2UH 10% AXIAL SHIELDED IND. |
0 | - |
|
数据表 |
AS20 | Axial | Bag | Active | - | - | 2.2 µH | ±10% | - | 664mA | Shielded | 410mOhm Max | 28 @ 7.9MHz | 110MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.100" Dia x 0.250" L (2.54mm x 6.35mm) | - |
|

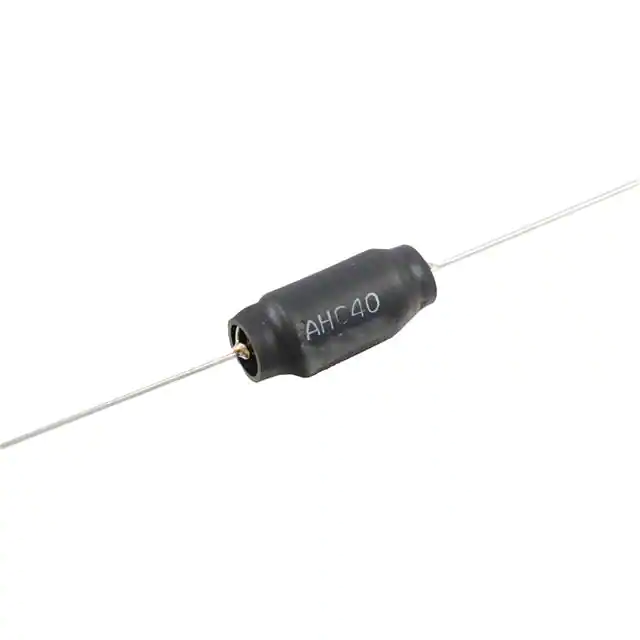

AHC40-3-101K-RC100UH 10% AXIAL HIGH CURRENT |
0 | - |
|
数据表 |
- | Axial | Tray | Active | - | - | 100 µH | ±10% | 3 A | - | Unshielded | 75mOhm Max | - | 2MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.500" Dia x 1.170" L (12.70mm x 29.72mm) | - |
|
|
AHC40-3-500K-RC50UH 10% AXIAL HIGH CURRENT |
0 | - |
|
数据表 |
- | Axial | Tray | Active | - | - | 50 µH | ±10% | 3 A | - | Unshielded | 65mOhm Max | - | 4MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.500" Dia x 0.920" L (12.70mm x 23.37mm) | - |
|
|
AHC40-5-500K-RC50UH 10% 5 AMP AXIAL HI CURRENT |
0 | - |
|
数据表 |
- | Axial | Tray | Active | - | - | 50 µH | ±10% | 5 A | - | Unshielded | 50mOhm Max | - | 2MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.700" Dia x 1.050" L (17.78mm x 26.67mm) | - |
|
|
AHC40-1-501K-RC50UH 10% 1 AMP AXIAL HI CURRENT |
0 | - |
|
数据表 |
- | Axial | Tray | Active | - | - | 500 µH | ±10% | 1 A | - | Unshielded | 500mOhm Max | - | 800kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.550" Dia x 1.050" L (13.97mm x 26.67mm) | - |
|
AHC30-1R2K-RC1.2UH 10% AXIAL HICURRENT CHOKE |
0 | - |
|
数据表 |
- | Axial | Bag | Active | - | - | 1.2 µH | ±10% | 1.58 A | - | Unshielded | 63mOhm Max | 55 @ 7.96MHz | 150MHz | - | - | 7.96 MHz | - | Through Hole | Axial | 0.180" Dia x 0.500" L (4.57mm x 12.70mm) | - |
|
|
AHC30-560K-RC56UH 10% AXIAL HI CURRENT CHOKE |
0 | - |
|
数据表 |
- | Axial | Tape & Reel (TR) | Active | - | - | 56 µH | ±10% | 300 mA | - | Unshielded | 1.95Ohm Max | 55 @ 2.52MHz | 20MHz | - | - | 2.52 MHz | - | Through Hole | Axial | 0.180" Dia x 0.500" L (4.57mm x 12.70mm) | - |
|
DFE201210S-R47MCA=P2FIXED IND |
0 | - |
|
- |
DFE201210S | 0805 (2012 Metric) | Bulk | Obsolete | Drum Core, Wirewound | Metal | 470 nH | ±20% | 3.4 A | 4.8A | Shielded | 32mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
DFE201208S-R47QS=P2FIXED IND |
0 | - |
|
- |
DFE201208S | 0805 (2012 Metric) | Bulk | Obsolete | Drum Core, Wirewound | Metal | 470 nH | - | 3 A | 4A | Shielded | 42mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
|
DFE201208K-2R2M=P2FIXED IND |
0 | - |
|
- |
DFE201208K | 0805 (2012 Metric) | Bulk | Obsolete | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
|
DFE201208K-R47M=P2FIXED IND |
0 | - |
|
- |
DFE201208K | 0805 (2012 Metric) | Bulk | Obsolete | Drum Core, Wirewound | Metal | 470 nH | ±20% | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
|
DFE201210S-1R0MCA=P2FIXED IND |
0 | - |
|
- |
DFE201210S | 0805 (2012 Metric) | Bulk | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 2.3 A | 3.2A | Shielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
DFE201208K-1R0M=P2FIXED IND |
0 | - |
|
- |
DFE201208K | 0805 (2012 Metric) | Bulk | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
|
DFE201210S-1R0MH=P2FIXED IND |
0 | - |
|
- |
DFE201210S | 0805 (2012 Metric) | Bulk | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 2.3 A | 3.2A | Shielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
DFE201210S-R47MS=P2FIXED IND |
0 | - |
|
- |
DFE201210S | 0805 (2012 Metric) | Bulk | Obsolete | Drum Core, Wirewound | Metal | 470 nH | ±20% | 3.4 A | 4.8A | Shielded | 32mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
DFE201210S-R24M=P2FIXED IND |
0 | - |
|
- |
DFE201210S | 0805 (2012 Metric) | Bulk | Obsolete | Drum Core, Wirewound | Metal | 240 nH | ±20% | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
