固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DFE201210S-R47MH=P2FIXED IND |
0 | - |
|
- |
DFE201210S | 0805 (2012 Metric) | Bulk | Obsolete | Drum Core, Wirewound | Metal | 470 nH | ±20% | 3.4 A | 4.8A | Shielded | 32mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
DFE201210S-2R2MAT=M2FIXED IND |
0 | - |
|
- |
DFE201210S | 0805 (2012 Metric) | Bulk | Obsolete | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 1.5 A | 2.1A | Shielded | 155mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
DFE201210S-R11M=P2FIXED IND |
0 | - |
|
数据表 |
DFE18SBN | 0805 (2012 Metric) | Bulk | Obsolete | Drum Core, Wirewound | Metal | 110 nH | ±20% | 5.5 A | 8.8A | Shielded | 12mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
LQE21KT2R2ME0LFIXED IND |
0 | - |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DFE201208K-2R2MH=P2FIXED IND |
0 | - |
|
- |
DFE201208K | 0805 (2012 Metric) | Bulk | Obsolete | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
|
LQE21ST2R2ME0LFIXED IND |
0 | - |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LQE21KTR47ME0LFIXED IND |
0 | - |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DFE21CCN1R5MELLFIXED IND |
0 | - |
|
数据表 |
DFE21CCN_EL | 0805 (2012 Metric) | Bulk | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|

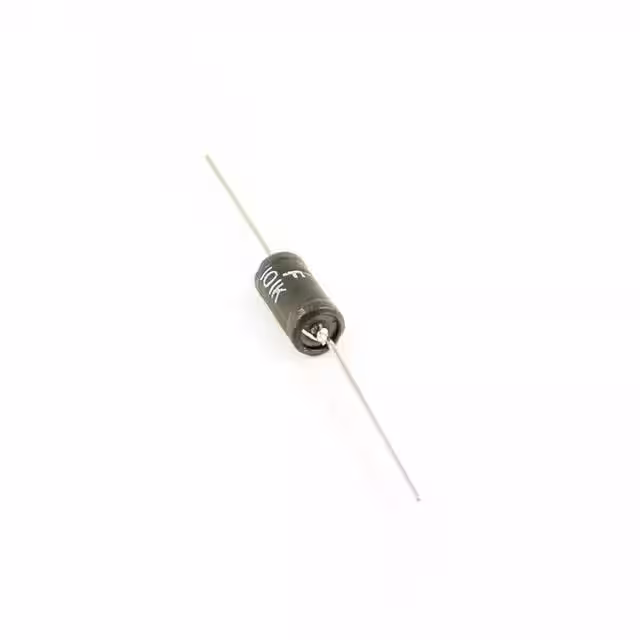

APC20-820K-RC82UH 10% AXIAL POWER CHOKE |
0 | - |
|
数据表 |
APC20 | Axial | Bulk | Active | - | - | 82 µH | ±10% | 804 mA | 1.4A | Unshielded | 152mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.600" L (7.36mm x 15.24mm) | - |
|
|
APC20-220K-RC22UH 10% AXIAL POWER CHOKE |
0 | - |
|
数据表 |
APC20 | Axial | Bulk | Active | - | - | 22 µH | ±10% | 1.28 A | 2.7A | Unshielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.600" L (7.36mm x 15.24mm) | - |
|
|
APC20-101K-RC100UH 10% AXIAL POWER CHOKE |
0 | - |
|
数据表 |
APC20 | Axial | Bulk | Active | - | - | 100 µH | ±10% | 632 mA | 1.2A | Unshielded | 208mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.600" L (7.36mm x 15.24mm) | - |
|
|
APC20-8R2K-RC8.2UH 10% AXIAL POWER CHOKE |
0 | - |
|
数据表 |
APC20 | Axial | Bulk | Active | - | - | 8.2 µH | ±10% | 1.28 A | 4.5A | Unshielded | 28mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.600" L (7.36mm x 15.24mm) | - |
|
|
APC20-330K-RC33UH 10% AXIAL POWER CHOKE |
0 | - |
|
数据表 |
APC20 | Axial | Bulk | Active | - | - | 33 µH | ±10% | 1.008 A | 2.2A | Unshielded | 76mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.600" L (7.36mm x 15.24mm) | - |
|
|
APC20-222K-RC2200UH 10% AXIAL POWER CHOKE |
0 | - |
|
数据表 |
APC20 | Axial | Bulk | Active | - | - | 2.2 mH | ±10% | 158 mA | 270mA | Unshielded | 4.48Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.600" L (7.36mm x 15.24mm) | - |
|
|
APC20-221K-RC220UH 10% AXIAL POWER CHOKE |
0 | - |
|
数据表 |
APC20 | Axial | Bulk | Active | - | - | 220 µH | ±10% | 508 mA | 860mA | Unshielded | 430mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.600" L (7.36mm x 15.24mm) | - |
|
|
APC20-821K-RC820UH 10% AXIAL POWER CHOKE |
0 | - |
|
数据表 |
APC20 | Axial | Bulk | Active | - | - | 820 µH | ±10% | 200 mA | 440mA | Unshielded | 1.96Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.600" L (7.36mm x 15.24mm) | - |
|
|
APC20-681K-RC680UH 10% AXIAL POWER CHOKE |
0 | - |
|
数据表 |
APC20 | Axial | Bulk | Active | - | - | 680 µH | ±10% | 250 mA | 490mA | Unshielded | 1.61Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.600" L (7.36mm x 15.24mm) | - |
|

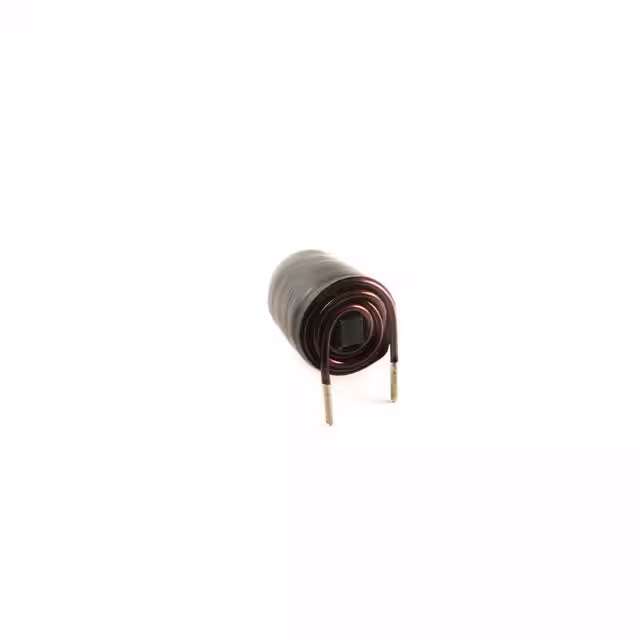

RHLC130-151K150UH 10% RADIAL LEADED, HM |
0 | - |
|
- |
- | Radial, Horizontal Cylinder | Bulk | Active | - | - | 150 µH | ±10% | 30 A | - | Unshielded | 16mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.693" Dia x 2.480" L (43.00mm x 63.00mm) | - |
|
|
B82132A5302MV1FIXED IND |
0 | - |
|
- |
B82132 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 3 µH | ±20% | 3 A | - | Unshielded | 35mOhm | - | 151MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | Axial | 0.217" Dia x 0.787" L (5.50mm x 20.00mm) | - |
|
|
B82131A5402MC1FIXED IND |
0 | - |
|
- |
B82131 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 1 µH | ±20% | 4 A | - | Unshielded | 14mOhm | - | 199MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | Axial | 0.197" Dia x 0.591" L (5.00mm x 15.00mm) | - |
