固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
784787101WE-PD2SA SMT SHIELDED POWER INDU |
996 | - |
|
数据表 |
WE-PD2SA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±25% | 950 mA | 870mA | Shielded | 467mOhm Max | - | 5MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
784787470WE-PD2SA SMT SHIELDED POWER INDU |
988 | - |
|
数据表 |
WE-PD2SA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±25% | 1.25 A | 1.15A | Shielded | 243mOhm Max | - | 8MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
784787039WE-PD2SA SMT SHIELDED POWER INDU |
965 | - |
|
数据表 |
WE-PD2SA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.9 µH | ±25% | 3.8 A | 4A | Shielded | 20mOhm Max | - | 45MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
784787221WE-PD2SA SMT SHIELDED POWER INDU |
917 | - |
|
数据表 |
WE-PD2SA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±25% | 670 mA | 580mA | Shielded | 876mOhm Max | - | 3.5MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
784787121WE-PD2SA SMT SHIELDED POWER INDU |
889 | - |
|
数据表 |
WE-PD2SA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 120 µH | ±25% | 730 mA | 800mA | Shielded | 643mOhm Max | - | 4.5MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
784787012WE-PD2SA SMT SHIELDED POWER INDU |
782 | - |
|
数据表 |
WE-PD2SA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.2 µH | ±25% | 4.85 A | 6A | Shielded | 13mOhm Max | - | 110MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
784787181WE-PD2SA SMT SHIELDED POWER INDU |
740 | - |
|
数据表 |
WE-PD2SA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 180 µH | ±25% | 680 mA | 620mA | Shielded | 794mOhm Max | - | 3.8MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
PF0560.103NLTFIXED IND 10UH 3.8A 35 MOHM SMD |
684 | - |
|
数据表 |
PF0560NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±30% | 3.8 A | 4.4A | Shielded | 35mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
PGL6478.221HLTINDUCTOR PWR BEAD 212NH 24A SMD |
5,000 | - |
|
数据表 |
PGL6478.XXXHL | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | - | - | 220 nH | ±15% | 33 A | 36A | Unshielded | 450mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3-SMD | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.140" (3.55mm) |
|

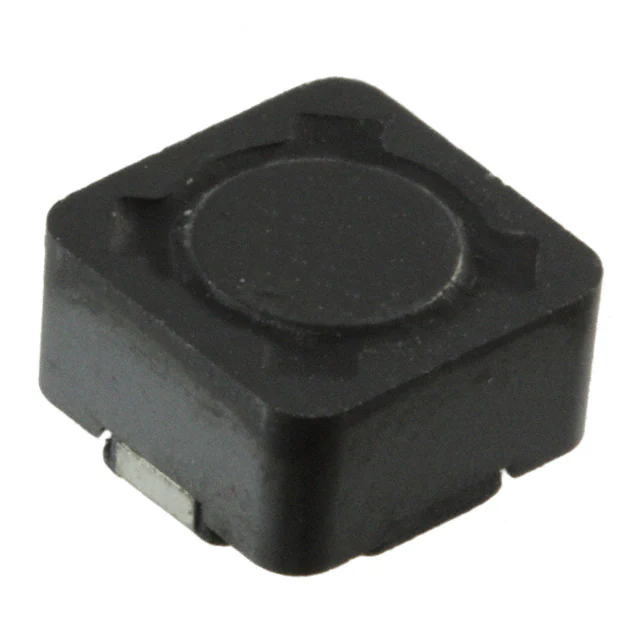

DRA74-471-RFIXED IND 470UH 383MA 1.93OHM SM |
3,305 | - |
|
数据表 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 383 mA | 420mA | Shielded | 1.93Ohm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|

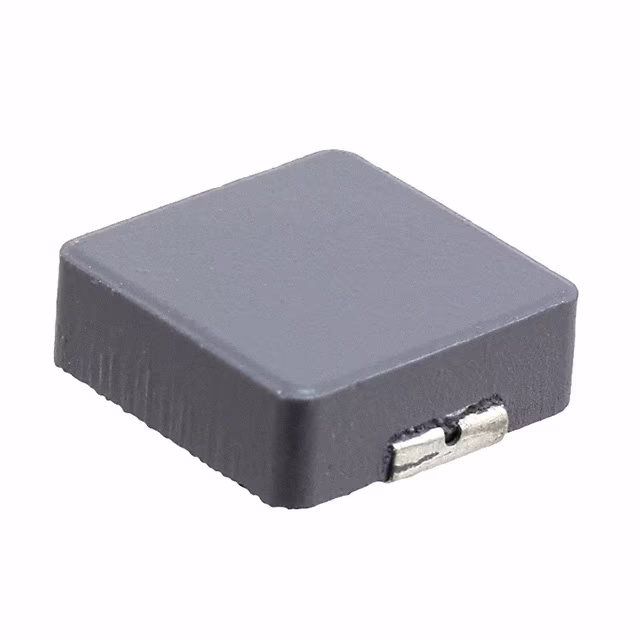

SRP1245A-6R0MFIXED IND 6UH 11.5A 16.5MOHM SMD |
2,213 | - |
|
数据表 |
SRP1245A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 6 µH | ±20% | 11.5 A | 21.5A | Shielded | 16.5mOhm Max | 20 @ 100kHz | 12MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|

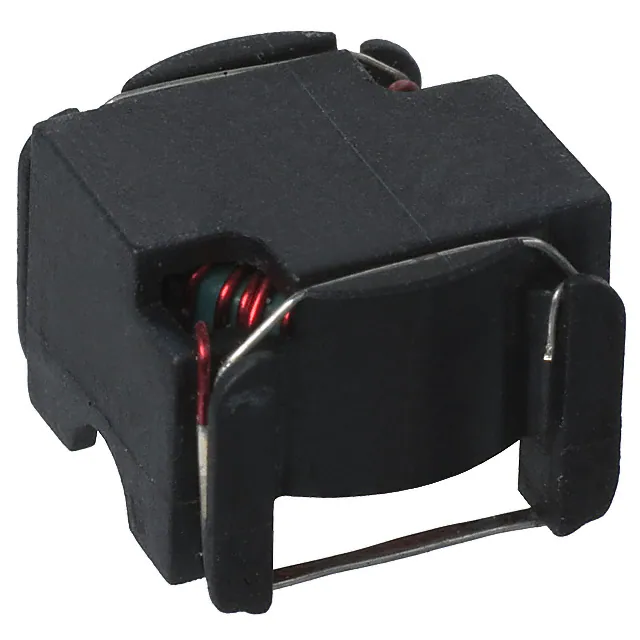

PE-53650NLFIXED IND 3.8UH 4.8A 17.3MOHM SM |
1,375 | - |
|
数据表 |
SLIC | Nonstandard | Tube | Active | Toroidal | - | 3.8 µH | - | 4.8 A | - | Unshielded | 17.3mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
EST1060T100MDGAFIXED IND 10UH 4.3A 26 MOHM SMD |
1,120 | - |
|
数据表 |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.3 A | 4.3A | Shielded | 26mOhm Max | - | 18MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
|
EST1060T471MDGAFIXED IND 470UH 650MA 930MOHM SM |
1,033 | - |
|
数据表 |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 650 mA | 650mA | Shielded | 930mOhm Max | - | 2MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
|
SRP1245A-R33MFIXED IND 330NH 42A 0.9 MOHM SMD |
996 | - |
|
数据表 |
SRP1245A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 330 nH | ±20% | 42 A | 80A | Shielded | 0.9mOhm Max | 15 @ 100kHz | 90MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
EST1060T220MDGAFIXED IND 22UH 2.8A 53 MOHM SMD |
930 | - |
|
数据表 |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.8 A | 3.1A | Shielded | 53mOhm Max | - | 12MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
|
EST1060T331MDGAFIXED IND 330UH 750MA 550MOHM SM |
838 | - |
|
数据表 |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 750 mA | 750mA | Shielded | 550mOhm Max | - | 2.5MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
HCMA1305-100-RFIXED IND 10UH 9A 21.9 MOHM SMD |
795 | - |
|
数据表 |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 9 A | 16A | Shielded | 21.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
ETQ-P5MR68YSCFIXED IND 680NH 32.3A 1.83 MOHM |
685 | - |
|
数据表 |
PCC-M1050MS | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 32.3 A | 40A | Shielded | 1.83mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.197" (5.00mm) |
|
ETQ-P5M2R0YSCFIXED IND 1.9UH 29.8A 4.45 MOHM |
638 | - |
|
数据表 |
PCC-M1050MS | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Metal Composite | 1.9 µH | ±20% | 19.8 A | 29.8A | Shielded | 4.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.197" (5.00mm) |
