固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA1320.221NLTFIXED IND 200NH 40A 0.48MOHM SMD |
3,937 | - |
|
数据表 |
PA1320NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 200 nH | ±20% | 40 A | 50A | Shielded | 0.48mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.315" W (10.41mm x 8.00mm) | 0.256" (6.50mm) |
|
PF0560.683NLTFIXED IND 68UH 1.42A 213MOHM SMD |
3,815 | - |
|
数据表 |
PF0560NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±25% | 1.42 A | 1.5A | Shielded | 213mOhm Max | - | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
P0762.154NLTFIXED IND 150UH 500MA 1.2OHM SMD |
2,983 | - |
|
数据表 |
P0762NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 500 mA | 600mA | Unshielded | 1.2Ohm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
|
784773033FIXED IND 3.3UH 2A 86 MOHM SMD |
2,963 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2 A | 2.88A | Unshielded | 86mOhm Max | - | 55MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 4532 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
PF0560.333NLTFIXED IND 33UH 2.2A 93 MOHM SMD |
2,479 | - |
|
数据表 |
PF0560NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±25% | 2.2 A | 2.3A | Shielded | 93mOhm Max | - | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|

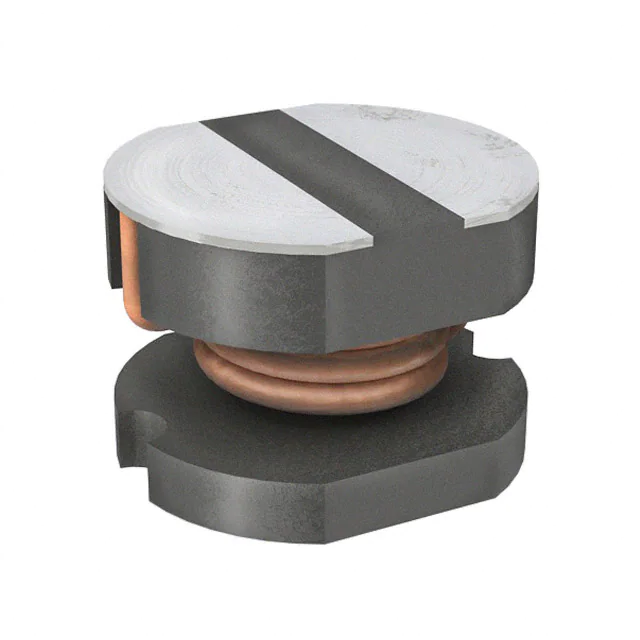

744773127FIXED IND 27UH 940MA 522MOHM SMD |
2,418 | - |
|
数据表 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 940 mA | 1A | Unshielded | 522mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
PA1320.121NLTFIXED IND 120NH 40A 0.48MOHM SMD |
2,010 | - |
|
数据表 |
PA1320NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 nH | ±20% | 40 A | 74A | Shielded | 0.48mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.315" W (10.41mm x 8.00mm) | 0.256" (6.50mm) |
|
|
PF0560.522NLTFIXED IND 5.2UH 5.4A 22 MOHM SMD |
1,831 | - |
|
数据表 |
PF0560NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 5.2 µH | ±30% | 5.4 A | 5.5A | Shielded | 22mOhm Max | - | 34MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
744773018FIXED IND 1.8UH 2.7A 64 MOHM SMD |
1,500 | - |
|
数据表 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±20% | 2.7 A | 3.6A | Unshielded | 64mOhm Max | - | 95MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
784773022FIXED IND 2.2UH 2.5A 71 MOHM SMD |
1,500 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.5 A | 3.38A | Unshielded | 71mOhm Max | - | 74MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 4532 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
784773056FIXED IND 5.6UH 1.58A 126MOHM SM |
1,500 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 1.58 A | 2.43A | Unshielded | 126mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 4532 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
784773139FIXED IND 39UH 770MA 587MOHM SMD |
1,500 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 770 mA | 870mA | Unshielded | 587mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 4532 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
784773039FIXED IND 3.9UH 1.88A 94MOHM SMD |
1,492 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 1.88 A | 2.57A | Unshielded | 94mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 4532 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
784773168FIXED IND 68UH 560MA 1.117OHM SM |
1,492 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 560 mA | 680mA | Unshielded | 1.117Ohm Max | - | 11MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 4532 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
784773127FIXED IND 27UH 940MA 522MOHM SMD |
1,478 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 940 mA | 1A | Unshielded | 522mOhm Max | - | 17MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 4532 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
784773082FIXED IND 8.2UH 1.5A 146MOHM SMD |
1,451 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 1.5 A | 1.8A | Unshielded | 146mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 4532 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
784773068FIXED IND 6.8UH 1.54A 131MOHM SM |
1,450 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.54 A | 2.1A | Unshielded | 131mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 4532 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
784773147FIXED IND 47UH 680MA 844MOHM SMD |
1,413 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 680 mA | 770mA | Unshielded | 844mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 4532 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
784773018FIXED IND 1.8UH 2.7A 64 MOHM SMD |
1,404 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±20% | 2.7 A | 3.6A | Unshielded | 64mOhm Max | - | 85MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 4532 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
784773118FIXED IND 18UH 1.1A 338 MOHM SMD |
1,376 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 1.1 A | 1.29A | Unshielded | 338mOhm Max | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 4532 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
