固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX250-1-52-RFIXED IND 250UH 1.9A 221 MOHM TH |
0 | - |
|
数据表 |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 250 µH | ±20% | 1.9 A | 2.2A | Unshielded | 221mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.823" Dia x 0.512" W (20.90mm x 13.00mm) | - |
|
1537-30KFIXED IND 5.6UH 565MA 320MOHM TH |
889 | - |
|
数据表 |
Military, MIL-PRF-M15305, MS14046 | Axial | Tape & Reel (TR) | Active | - | Iron | 5.6 µH | ±10% | 565 mA | - | Unshielded | 320mOhm Max | 45 @ 7.9MHz | 60MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
PE-53826SNLFIXED IND 377UH 680MA 1 OHM SMD |
880 | - |
|
数据表 |
- | Nonstandard | Bulk | Active | Toroidal | - | 377 µH | ±20% | 680 mA | - | Shielded | 1Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
|
1537-44KFIXED IND 22UH 202MA 2.5 OHM TH |
373 | - |
|
数据表 |
Military, MIL-PRF-M15305, MS14046 | Axial | Tape & Reel (TR) | Active | - | Iron | 22 µH | ±10% | 202 mA | - | Unshielded | 2.5Ohm Max | 75 @ 2.5MHz | 30MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
PD0120.223NLFIXED IND 23.1UH 5.3A 35.5 MOHM |
1,070 | - |
|
数据表 |
PD0120NL | Nonstandard | Tray | Active | Wirewound | - | 23.1 µH | ±10% | 5.3 A | 6.8A | Unshielded | 35.5mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.638" L x 0.628" W (16.20mm x 15.95mm) | 0.323" (8.20mm) |
|
|
PD0120.183NLFIXED IND 18.7UH 6.4A 25.5 MOHM |
1,066 | - |
|
数据表 |
PD0120NL | Nonstandard | Tray | Active | Wirewound | - | 18.7 µH | ±10% | 6.4 A | 7.6A | Unshielded | 25.5mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.638" L x 0.628" W (16.20mm x 15.95mm) | 0.323" (8.20mm) |
|
|
PD0120.702NLFIXED IND 7.2UH 8.6A 10 MOHM SMD |
1,045 | - |
|
数据表 |
PD0120NL | Nonstandard | Tray | Active | Wirewound | - | 7.2 µH | ±10% | 8.6 A | 12.6A | Unshielded | 10mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.638" L x 0.628" W (16.20mm x 15.95mm) | 0.323" (8.20mm) |
|
FP3-1R0-RFIXED IND 1UH 6.26A 11.2MOHM SMD |
2,094 | - |
|
数据表 |
FLAT-PAC 3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±15% | 6.26 A | 9.5A | Unshielded | 11.2mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.264" W (7.25mm x 6.70mm) | 0.118" (3.00mm) |
|

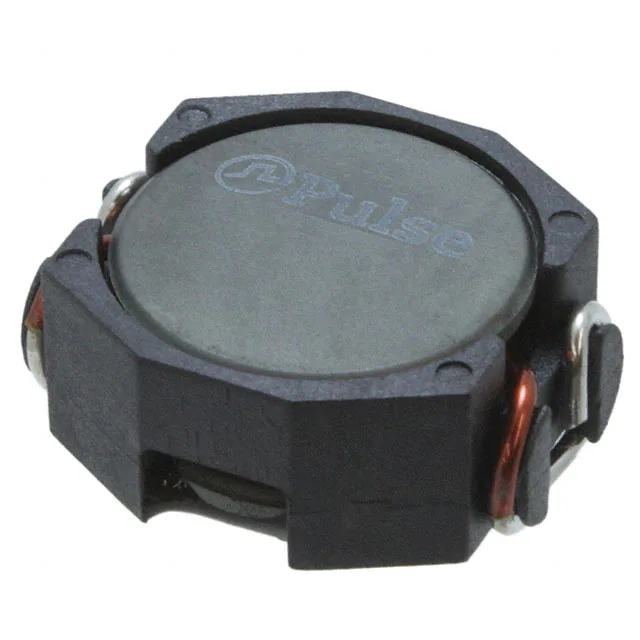

PB2020.153NLTFIXED IND 15UH 9.7A 13 MOHM SMD |
1,100 | - |
|
数据表 |
PB2020NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 9.7 A | 18A | Unshielded | 13mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
|
HCP0805-1R5-RFIXED IND 1.5UH 13.3A 6.8MOHM SM |
400 | - |
|
数据表 |
HCP0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 13.3 A | 18A | Shielded | 6.8mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.291" W (7.70mm x 7.40mm) | 0.197" (5.00mm) |
|
744310055FIXED IND 520NH 14A 3.7 MOHM SMD |
3,059 | - |
|
数据表 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 520 nH | ±20% | 14 A | 20A | Shielded | 3.7mOhm | - | 140MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7030 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.130" (3.30mm) |
|
DRA124-102-RFIXED IND 1MH 380MA 2.94 OHM SMD |
984 | - |
|
数据表 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 380 mA | 629mA | Shielded | 2.94Ohm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|

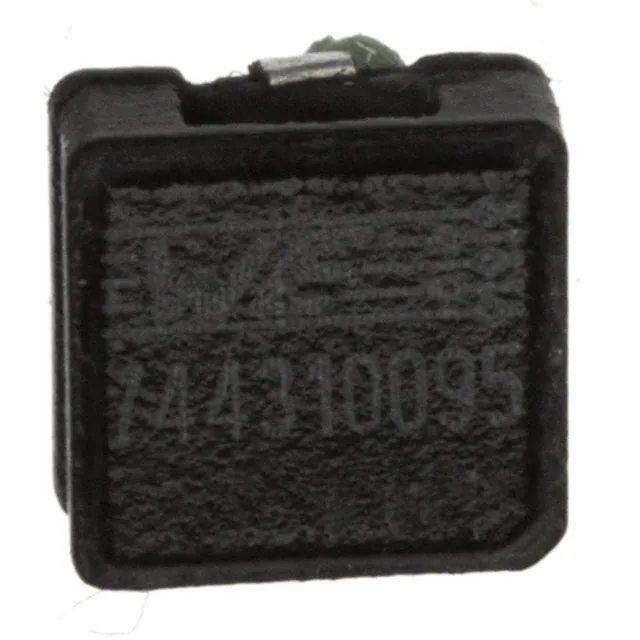

744310095FIXED IND 950NH 11A 6.2 MOHM SMD |
173 | - |
|
数据表 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 950 nH | ±20% | 11 A | 13A | Shielded | 6.2mOhm | - | 90MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7030 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.130" (3.30mm) |
|
P1812-183KFIXED IND 18UH 400MA 875MOHM SMD |
562 | - |
|
数据表 |
P1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 18 µH | ±10% | 400 mA | 614mA | Unshielded | 875mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
UP4B-221-RFIXED IND 220UH 1.4A 357.1 MOHM |
4,135 | - |
|
数据表 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.4 A | 2.4A | Unshielded | 357.1mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.870" L x 0.591" W (22.10mm x 15.00mm) | 0.310" (7.87mm) |
|
2474R-20LFIXED IND 39UH 2.05A 84 MOHM TH |
3,023 | - |
|
数据表 |
2474R | Axial | Bulk | Active | Molded | Ferrite | 39 µH | ±15% | 2.05 A | 1A | Unshielded | 84mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
FP1012V2-R120-RIND FLAT PAC 120NH 105A2 PADS |
250 | - |
|
数据表 |
FP1012 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 120 nH | ±10% | 84 A | 105A | Unshielded | 138mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
PB2020.332NLFIXED IND 3.3UH 18.3A 3.9MOHM SM |
1,010 | - |
|
数据表 |
PB2020NL | Nonstandard | Tube | Active | Wirewound | - | 3.3 µH | ±20% | 18.3 A | 35A | Unshielded | 3.9mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
|
|
PB2020.103NLTFIXED IND 10UH 12.6A 7.8MOHM SMD |
697 | - |
|
数据表 |
PB2020NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 12.6 A | 20A | Unshielded | 7.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
|

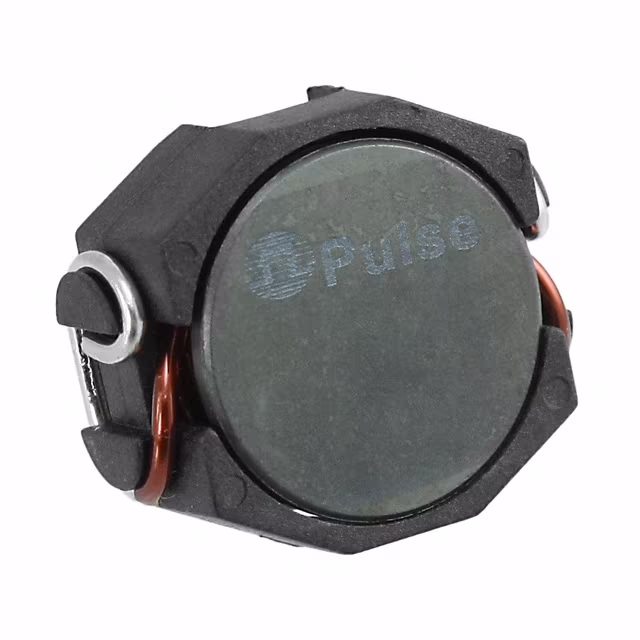

PB2020.103NLFIXED IND 10UH 12.6A 7.8MOHM SMD |
517 | - |
|
数据表 |
PB2020NL | Nonstandard | Tube | Active | Wirewound | - | 10 µH | ±20% | 12.6 A | 20A | Unshielded | 7.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
