固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
AIRD-06-561KFIXED IND 560UH 1.6A 388 MOHM TH |
800 | - |
|
数据表 |
AIRD-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 1.6 A | 4.1A | Unshielded | 388mOhm Max | 15 @ 50kHz | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
|
AIRD-06-330KFIXED IND 33UH 5.5A 29 MOHM TH |
799 | - |
|
数据表 |
AIRD-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 5.5 A | 18.6A | Unshielded | 29mOhm Max | 15 @ 50kHz | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
|
AIRD-06-151KFIXED IND 150UH 4A 98 MOHM TH |
775 | - |
|
数据表 |
AIRD-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 4 A | 8.6A | Unshielded | 98mOhm Max | 15 @ 50kHz | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
|
AIRD-06-152KFIXED IND 1.5MH 800MA 1.26OHM TH |
612 | - |
|
数据表 |
AIRD-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 800 mA | 2.4A | Unshielded | 1.26Ohm Max | 15 @ 50kHz | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
|
AIRD-06-820KFIXED IND 82UH 4.8A 60 MOHM TH |
495 | - |
|
数据表 |
AIRD-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 4.8 A | 11.3A | Unshielded | 60mOhm Max | 15 @ 50kHz | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
PH9499.102CNLTINDUCTOR 1.05UH 3.5A ER11 SMD |
377 | - |
|
数据表 |
PH9499.XXXCNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.05 µH | ±6% | 3.5 A | 25A | Unshielded | 22mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.384" W (11.20mm x 9.75mm) | 0.299" (7.60mm) |
|
2208-H-RCFIXED IND 39UH 7.1A 22 MOHM TH |
254 | - |
|
数据表 |
2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 39 µH | ±15% | 7.1 A | - | Shielded | 22mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
HCF1007-1R0-RFIXED IND 1UH 16A 2.65 MOHM SMD |
944 | - |
|
数据表 |
HCF1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 16 A | 26A | Unshielded | 2.65mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.307" W (10.10mm x 7.80mm) | 0.262" (6.65mm) |
|
HCMA1707-8R2-RFIXED IND 8.2UH 16A 8.7 MOHM SMD |
416 | - |
|
数据表 |
HCMA1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 8.2 µH | ±20% | 16 A | 20A | Shielded | 8.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
|
HCMA1707-1R5-RFIXED IND 1.5UH 40A 2.15MOHM SMD |
237 | - |
|
数据表 |
HCMA1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 40 A | 40A | Shielded | 2.15mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
S1210R-151KFIXED IND 150NH 979MA 200MOHM SM |
5,074 | - |
|
数据表 |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 150 nH | ±10% | 979 mA | - | Shielded | 200mOhm Max | 40 @ 25MHz | 330MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
S1210R-121KFIXED IND 120NH 1.062A 170 MOHM |
2,791 | - |
|
数据表 |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 120 nH | ±10% | 1.062 A | - | Shielded | 170mOhm Max | 40 @ 25MHz | 350MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
S1210R-181KFIXED IND 180NH 934MA 220MOHM SM |
2,350 | - |
|
数据表 |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 180 nH | ±10% | 934 mA | - | Shielded | 220mOhm Max | 40 @ 25MHz | 310MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|

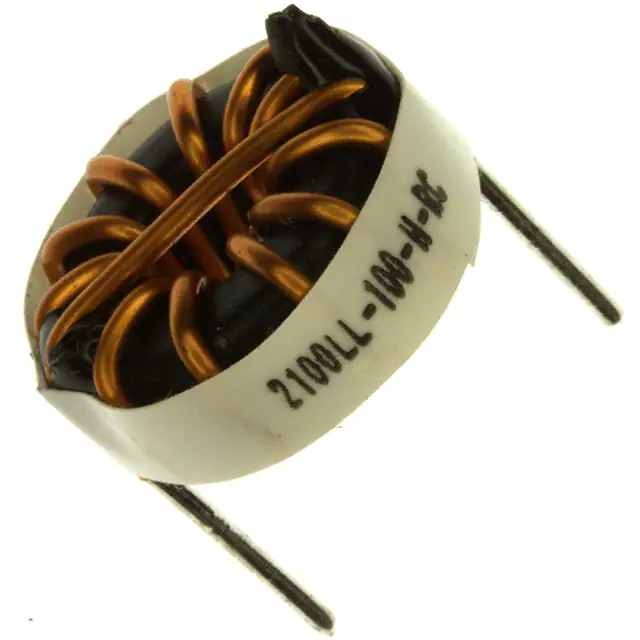

2100LL-100-H-RCFIXED IND 10UH 11.4A 5 MOHM TH |
1,958 | - |
|
数据表 |
2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 10 µH | ±15% | 11.4 A | - | Shielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
PG0936.682NLTFIXED IND 6.8UH 18A 3.5 MOHM SMD |
989 | - |
|
数据表 |
PG0936NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 18 A | 18A | Unshielded | 3.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
|
S1210R-562KFIXED IND 5.6UH 352MA 1.3OHM SMD |
888 | - |
|
数据表 |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 5.6 µH | ±10% | 352 mA | - | Shielded | 1.3Ohm Max | 40 @ 7.9MHz | 38MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
2100LL-330-H-RCFIXED IND 33UH 6.9A 14 MOHM TH |
850 | - |
|
数据表 |
2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 33 µH | ±15% | 6.9 A | - | Shielded | 14mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
S1210R-153KFIXED IND 15UH 254MA 2.5 OHM SMD |
847 | - |
|
数据表 |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±10% | 254 mA | - | Shielded | 2.5Ohm Max | 40 @ 2.5MHz | 23MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
2100LL-560-H-RCFIXED IND 56UH 5A 26 MOHM TH |
729 | - |
|
数据表 |
2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 56 µH | ±15% | 5 A | - | Shielded | 26mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
2100LL-121-H-RCFIXED IND 120UH 4.1A 39 MOHM TH |
663 | - |
|
数据表 |
2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 120 µH | ±15% | 4.1 A | - | Shielded | 39mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
