直流直流转换器（DC DC Converters）
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDF15072S2414-160VDC I/P 24VDC O/P |
26 | - |
|
数据表 |
RDF150 (150W) | Half Brick | Box | Active | Isolated Module | 1 | 14V | 160V | 24V | - | - | - | 6.25A | 150 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 100°C (With Derating) | 89% | - | - | Through Hole | Half Brick | Enable, Active High | CE, EN, UKCA, UL | 50155; 62368-1 | |
|
40IMX35D12D12-8GDC DC CONVERTER 12V 12V 12V 35W |
48 | - |
|
数据表 |
Melcher IMX35 (35W) | 19-DIP Module, 17 Leads | Bulk | Active | Isolated Module, Conformal Coated | 4 | 18V | 75V | 12V | 12V | 12V | - | 700mA, 700mA, 700mA | 35 W | 1.2 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 88% | - | - | Through Hole | - | - | - | - | |
|
|
LTM4683IY#PBFLOW VOUT QUAD 31.25A OR SINGLE 1 |
36 | - |
|
数据表 |
µModule® | 330-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.3 ~ 0.7V | - | - | - | 125A | - | - | ITE (Commercial) | Adjustable Output, I2C Interface, Load Sharing, Remote Sense | -40°C ~ 125°C | - | - | - | Surface Mount | 330-BGA (22x15) | - | - | - | |
|
|
20IMX7-15-15-8MDC DC CONVERTER 15V 15V 7W |
239 | - |
|
数据表 |
Melcher IMX7 (7W) | 14-SMD Module, 8 Leads | Bulk | Active | Isolated Module, Conformal Coated | 2 | 8.4V | 36V | 15V | 15V | - | - | 200mA, 200mA | 7 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 83% | - | - | Surface Mount | - | - | - | - | |
|
VHB350-D48-S28DC DC CONVERTER 28V 350W |
72 | - |
|
数据表 |
VHB350 (350W) | 9-DIP Module, 1/2 Brick | Box | Active | Isolated Module | 1 | 36V | 75V | 28V | - | - | - | 12.5A | 350 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 92.5% | - | - | Through Hole | - | Enable, Active High | EN | 55024; 55032 Class A; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-3; 61000-6-4 | |
|
|
ERM6H100N150W 1/4 BRICK, NEG-ENABLE, 36-1 |
120 | - |
|
数据表 |
ERM150 (150W) | 8-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 160V | 24V | - | - | - | 6.25A | 150 W | 2 kV | ITE (Commercial), Railway | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | Enable, Active Low | CE, UKCA | 50155; 62368-1 | |
|
20IMX15-05-8RGDC DC CONVERTER 5.1V 15W |
95 | - |
|
数据表 |
Melcher IMX15 (15W) | 17-DIP Module | Bulk | Active | Isolated Module, Conformal Coated | 1 | 8.4V | 36V | 5.1V | - | - | - | 3.5A | 15 W | 2.1 kV | ITE (Commercial), Railway | OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 86% | - | - | Through Hole | - | - | - | - | |
|
40IMX35D05D05-8GDC DC CONVERTER 5V 5V 5V 35W |
30 | - |
|
数据表 |
Melcher IMX35 (35W) | 19-DIP Module, 17 Leads | Tube | Active | Isolated Module, Conformal Coated | 4 | 18V | 75V | 5V | 5V | 5V | - | 1.4A, 1.4A, 1.4A | 35 W | 1.5 kV | ITE (Commercial), Railway | OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | - | - | - | - | |
|
40IMX15-15-15-8GDC DC CONVERTER 15V 15V 15W |
100 | - |
|
数据表 |
Melcher IMX15 (15W) | 17-DIP Module, 9 Leads | Bulk | Active | Isolated Module, Conformal Coated | 2 | 16.8V | 75V | 15V | 15V | - | - | 560mA, 560mA | 15 W | 2.1 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 86% | - | - | Through Hole | - | - | - | - | |
|
|
40IMX15-24-24-8GDC DC CONVERTER 24V 24V 15W |
60 | - |
|
数据表 |
Melcher IMX15 (15W) | 17-DIP Module, 11 Leads | Bulk | Active | Isolated Module, Conformal Coated | 2 | 16.8V | 75V | 24V | 24V | - | - | 350mA, 350mA | 15 W | 2.1 kV | ITE (Commercial), Railway | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 86% | - | - | Through Hole | - | - | - | - | |
|
|
20IMX15-05-05-8GDC DC CONVERTER 5V 5V 15W |
36 | - |
|
数据表 |
Melcher IMX15 (15W) | 17-DIP Module | Tube | Active | Isolated Module, Conformal Coated | 2 | 8.4V | 36V | 5V | 5V | - | - | 1.3A, 1.3A | 15 W | 2.1 kV | ITE (Commercial), Railway | OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 86% | - | - | Through Hole | - | - | - | - | |
|
MTC0528S05DC DC CONVERTER 5V 5W |
35 | - |
|
数据表 |
MTC (5W) | 12-DIP Module, 9 Leads | Box | Active | Isolated Module | 1 | 15.5V | 40V | 5V | - | - | - | 800mA | 5 W | 1.5 kV | ITE (Commercial) | OCP, OTP, OVP | -40°C ~ 100°C | 77% | - | - | Through Hole | - | - | - | - | |
|
36IBX15-50-0GDC DC CONVERTER 80V |
32 | - |
|
数据表 |
Melcher IBX15 | 17-DIP Module, 10 Leads | Bulk | Active | Non-Isolated PoL Module, Conformal Coated | 1 | 25.2V | 80V | 80V | - | - | - | 2.2A | - | - | ITE (Commercial) | OTP, UVLO | -40°C ~ 70°C | 95% | - | - | Through Hole | - | - | - | - | |
|
AIH10H300N-LDC DC CONVERTER 24V 250W |
98 | - |
|
数据表 |
AIH (250W) | Module | Bulk | Active | Isolated Module | 1 | 250V | 420V | 24V | - | - | - | 10.4A | 250 W | - | ITE (Commercial) | OVP | -20°C ~ 100°C | 90% | - | - | Through Hole | - | - | - | - | |
|
24IMX70-15-0TGDC DC CONVERTER 15V 90W |
60 | - |
|
数据表 |
Melcher IMX70 (70W) | 19-DIP Module, 17 Leads | Bulk | Active | Isolated Module, Conformal Coated | 1 | 15V | 33.6V | 15V | - | - | - | 6A | 90 W | 1.5 kV | ITE (Commercial) | OCP, OTP, SCP | -40°C ~ 95°C | 90% | - | - | Through Hole | - | - | - | - | |
|
|
TEP 200-7215UIR200W HALF-BRICK DC/DC CONVERTER |
38 | - |
|
数据表 |
TEP 200UIR (200W) | Half Brick | Box | Active | Isolated Module | 1 | 14V | 160V | 24V | - | - | - | 8.4A | 202 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C | 89% | - | - | Through Hole | Half Brick | - | CB, cURus | 62368-1 | |
|

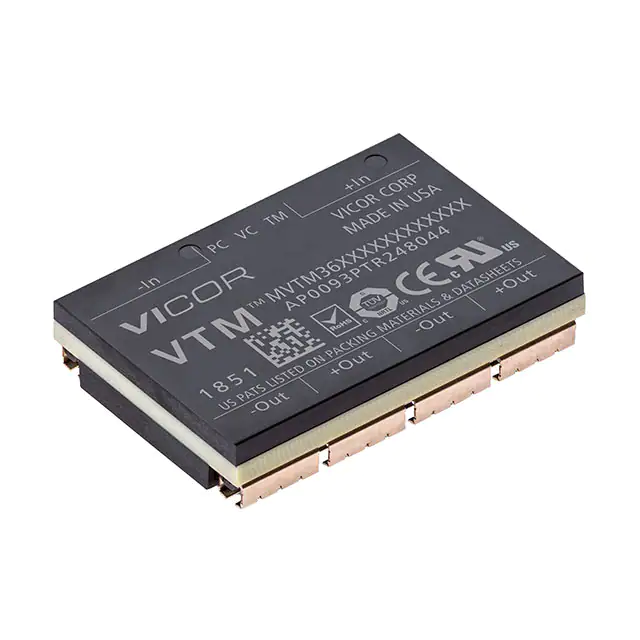

MVTM36BF045M027A00DC DC CONVERTER 4.5V 150W |
31 | - |
|
数据表 |
MVTM36 (150W) | Module | Tray | Active | Voltage Transformation Module | 1 | 26V | 50V | 4.5V | - | - | - | 27A | 150 W | 2.25 kV | ITE (Commercial) | OCP, OTP, OVP, SCP | -55°C ~ 125°C | 94.7% | - | - | Surface Mount | - | - | - | - | |
|
|
110IMY15-05-8RG-GDC DC CONVERTER 5.1V 15W |
71 | - |
|
数据表 |
IMY15 (15W) | 17-DIP Module, 6 Leads | Bulk | Active | Isolated Module | 1 | 50V | 150V | 5.1V | - | - | - | 3.5A | 15 W | 4.2 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | - | - | cCSAus, CE | 60950-1; 62368-1 | |
|
|
110IMY15-05-8RGZ-GDC DC CONVERTER 5.1V 15W |
60 | - |
|
数据表 |
Melcher IMY15 (15W) | 17-DIP Module, 6 Leads | Bulk | Active | Isolated Module, Conformal Coated | 1 | 50V | 150V | 5.1V | - | - | - | 2.5A | 15 W | 4.2 kV | ITE (Commercial), Railway | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 83% | - | - | Through Hole | - | - | - | - | |
|
|
110IMY15-24-24-8GDC DC CONVERTER 24V 24V 15W |
60 | - |
|
数据表 |
Melcher IMY15 (15W) | 17-DIP Module, 9 Leads | Bulk | Active | Isolated Module, Conformal Coated | 2 | 50V | 150V | 24V | 24V | - | - | 350mA, 350mA | 15 W | 4.2 kV | ITE (Commercial), Railway | OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 85% | - | - | Through Hole | - | - | - | - |
