直流直流转换器（DC DC Converters）
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SQ48T08060-PBA0DC DC CONVERTER 6V 48W |
0 | - |
|
数据表 |
SemiQ™ SQ48 | 8-DIP Module, 1/8 Brick | Bulk | Obsolete | Isolated Module | 1 | 36V | 75V | 6V | - | - | - | 8A | 48 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 89% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
PTQA420050N2ASDC DC CONVERTER 5V 100W |
0 | - |
|
数据表 |
PTQA420050 (100W) | 8-SMD Module, 1/4 Brick | Bulk | Not For New Designs | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 20A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 92.5% | - | - | Surface Mount | - | - | - | - | |
|
|
PTQA420050N2AZDC DC CONVERTER 5V 100W |
0 | - |
|
数据表 |
PTQA420050 (100W) | 8-SMD Module, 1/4 Brick | Bulk | Not For New Designs | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 20A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 92.5% | - | - | Surface Mount | - | - | - | - | |
|

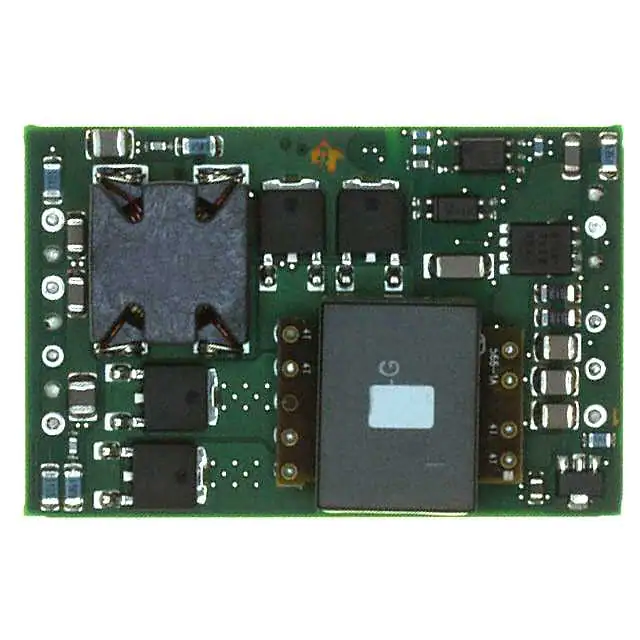

PTB48510BASDC DC CONVERTER +/-12V 72W |
0 | - |
|
数据表 |
PTB4851x | 8-SMD Module | Bulk | Not For New Designs | Isolated Module | 2 | 36V | 75V | 12V | -12V | - | - | 3A, 3A | 72 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 89% | - | - | Surface Mount | - | Enable, Active Low | - | - | |
|
|
PRD15-Q24-S15-P-DDC DC CONVERTER 15V 15W |
0 | - |
|
数据表 |
PRD15 (15W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 1.1A | 15 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 85% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
|
PT7775CDC DC CONVERTER 0.8-3.1V 32A |
96 | - |
|
数据表 |
PT7770 | 27-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.8 ~ 3.1V | - | - | - | 32A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 90% | - | - | Surface Mount | - | - | - | - | |
|
|
PT7777ADC DC CONVERTER 1.3-3.5V 32A |
0 | - |
|
数据表 |
PT7770 | 27-SIP Module, Horizontal | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 1.3 ~ 3.5V | - | - | - | 32A | - | - | ITE (Commercial) | - | 0°C ~ 85°C | 90% | - | - | Through Hole, Horizontal | - | - | - | - | |
|
|
PT7775ADC DC CONVERTER 0.8-3.1V 32A |
0 | - |
|
数据表 |
PT7770 | 27-SIP Module, Horizontal | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.8 ~ 3.1V | - | - | - | 32A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 90% | - | - | Through Hole, Horizontal | - | - | - | - | |
|
|
PRD25-D48-S3-P-DDC DC CONVERTER 3.3V 25W |
0 | - |
|
数据表 |
PRD25 (25W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 7.5A | 25 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 89.5% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
|
PRD25-D48-S5-P-DDC DC CONVERTER 5V 25W |
0 | - |
|
数据表 |
PRD25 (25W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 5A | 25 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 91% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
|
LES015YGDC DC CONVERTER 5V 15W |
0 | - |
|
数据表 |
LES (15W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 100°C | 84% | - | - | Through Hole | - | - | - | - | |
|
QBE4120N042R96DC DC CONVERTER 12V 504W |
42 | - |
|
数据表 |
QBE (504W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 42A | 504 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 95.5% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CE, cURus | - | |
|
JSK5048S24DC DC CONVERTER 24V 50W |
34 | - |
|
数据表 |
JSK50 (50W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 2.08A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 105°C | 91% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 | |
|
|
RFT-10Y15DC-DC,14-160V INPUT, 15V/0.67A O |
114 | - |
|
数据表 |
RFT-10Y (10W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 14V | 160V | 15V | - | - | - | 667mA | 10 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C | 84% | - | - | Through Hole | - | - | cCSAus, CE, UKCA | 62368-1 | |
|
|
RFT-10Y12DC-DC,14-160V INPUT, 12V/0.83A O |
114 | - |
|
数据表 |
RFT-10Y (10W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 14V | 160V | 12V | - | - | - | 833mA | 9.9 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C | 84% | - | - | Through Hole | - | - | cCSAus, CE, UKCA | 62368-1 | |
|
|
RFT-10Y03DC-DC,14-160V INPUT, 3.3V/3.03A |
114 | - |
|
数据表 |
RFT-10Y (10W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 14V | 160V | 3.3V | - | - | - | 3.03A | 9.9 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C | 80% | - | - | Through Hole | - | - | cCSAus, CE, UKCA | 62368-1 | |
|
|
RFT-10Y05DC-DC,14-160V INPUT, 5V/2.0A OUT |
114 | - |
|
数据表 |
RFT-10Y (10W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 14V | 160V | 5V | - | - | - | 2A | 10 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C | 80% | - | - | Through Hole | - | - | cCSAus, CE, UKCA | 62368-1 | |
|
|
RFT-10Y54DC-DC,14-160V INPUT, 54V/0.19A O |
114 | - |
|
数据表 |
RFT-10Y (10W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 14V | 160V | 54V | - | - | - | 185mA | 9.9 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C | 84% | - | - | Through Hole | - | - | cCSAus, CE, UKCA | 62368-1 | |
|
|
RFT-10Y24DC-DC,14-160V INPUT, 24V/0.42A O |
112 | - |
|
数据表 |
RFT-10Y (10W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 14V | 160V | 24V | - | - | - | 417mA | 10 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C | 84% | - | - | Through Hole | - | - | cCSAus, CE, UKCA | 62368-1 | |
|
|
SQE48T30025-NGB0DC DC CONVERTER 2.5V 75W |
0 | - |
|
数据表 |
SQE48 | 8-DIP Module, 1/8 Brick | Bulk | Obsolete | Isolated Module | 1 | 36V | 75V | 2.5V | - | - | - | 30A | 75 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 89% | - | - | Through Hole | - | Enable, Active Low | - | - |
