固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISC1812ER100KFIXED IND 10UH 279MA 900MOHM SMD |
2,734 | - |
|
数据表 |
ISC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±10% | 279 mA | - | Shielded | 900mOhm Max | 50 @ 2.52MHz | 25MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
HCM0503-R20-RFIXED IND 200NH 22.2A 2.31 MOHM |
2,673 | - |
|
数据表 |
HCM0503 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 200 nH | ±20% | 22.2 A | 21A | Shielded | 2.31mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
SDR1307-180MLFIXED IND 18UH 4.2A 36 MOHM SMD |
2,667 | - |
|
数据表 |
SDR1307 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 4.2 A | 7A | Unshielded | 36mOhm Max | 28 @ 2.52MHz | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.287" (7.30mm) |
|
|
SDR1307-6R8MLFIXED IND 6.8UH 6A 17 MOHM SMD |
2,541 | - |
|
数据表 |
SDR1307 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 6 A | 10.5A | Unshielded | 17mOhm Max | 24 @ 7.96MHz | 26MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.287" (7.30mm) |
|
CDRH74NP-221MC-BFIXED IND 220UH 360MA 1.17OHM SM |
2,107 | - |
|
数据表 |
CDRH74 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±20% | 360 mA | - | Shielded | 1.17Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SDR1307-271KLFIXED IND 270UH 1.2A 410MOHM SMD |
1,936 | - |
|
数据表 |
SDR1307 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 1.2 A | 1.8A | Unshielded | 410mOhm Max | 15 @ 796kHz | 3.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.287" (7.30mm) |
|
|
SDR1307-821KLFIXED IND 820UH 750MA 1.3OHM SMD |
1,900 | - |
|
数据表 |
SDR1307 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 750 mA | 1.1A | Unshielded | 1.3Ohm Max | 10 @ 796kHz | 1.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.287" (7.30mm) |
|
MWSA0518S-100MTFIXED IND 10UH 2.5A 155MOHM SMD |
1,799 | - |
|
数据表 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 10 µH | ±20% | 2.5 A | 2.5A | Shielded | 155mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|
PM43-4R7M-RCFIXED IND 4.7UH 1.7A 94 MOHM SMD |
1,712 | - |
|
数据表 |
PM43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.7 A | 2.6A | Unshielded | 94mOhm Max | 28 @ 7.96MHz | 50MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
MWSA0503S-R10MTFIXED IND 100NH 25A 3 MOHM SMD |
1,696 | - |
|
数据表 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 100 nH | ±20% | 25 A | 30A | Shielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
PM54-150M-RCFIXED IND 15UH 1.3A 140 MOHM SMD |
1,589 | - |
|
数据表 |
PM54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.3 A | 1.6A | Unshielded | 140mOhm | 30 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|
|
SDR1307-681KLFIXED IND 680UH 800MA 1 OHM SMD |
1,512 | - |
|
数据表 |
SDR1307 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 800 mA | 1.2A | Unshielded | 1Ohm Max | 10 @ 796kHz | 1.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.287" (7.30mm) |
|
|
PM54-820K-RCFIXED IND 82UH 580MA 600MOHM SMD |
1,404 | - |
|
数据表 |
PM54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 580 mA | 750mA | Unshielded | 600mOhm | 20 @ 2.52MHz | 9MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|
|
PM43-150M-RCFIXED IND 15UH 920MA 240MOHM SMD |
1,359 | - |
|
数据表 |
PM43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 920 mA | 1.4A | Unshielded | 240mOhm Max | 28 @ 2.52MHz | 28MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
MWSA0503S-R68MTFIXED IND 680NH 9A 12 MOHM SMD |
1,317 | - |
|
数据表 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 680 nH | ±20% | 9 A | 11.5A | Shielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|

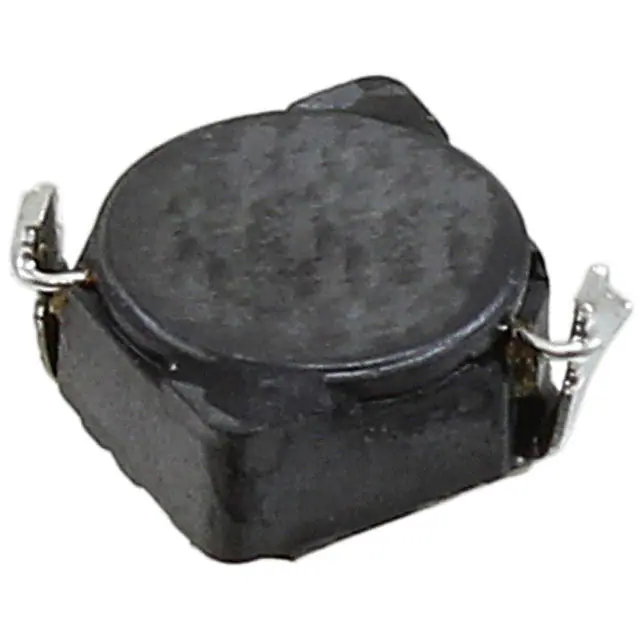

CDRH4D22NP-100NCFIXED IND 10UH 1.82A 102.4 MOHM |
1,314 | - |
|
数据表 |
CDRH4D22 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 1.82 A | 800mA | Shielded | 102.4mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.094" (2.40mm) |
|
|
CDRH74NP-181MC-BFIXED IND 180UH 420MA 980MOHM SM |
1,163 | - |
|
数据表 |
CDRH74 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 180 µH | ±20% | 420 mA | - | Shielded | 980mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
ECS-MPI2520R1-4R7-RFIXED IND 4.7UH 1.6A 180MOHM SMD |
54,505 | - |
|
数据表 |
ECS-MPI2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 1.6 A | 1.9A | Shielded | 180mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
HCM0503-R35-RFIXED IND 350NH 16.6A 4.29 MOHM |
3,263 | - |
|
数据表 |
HCM0503 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 350 nH | ±20% | 16.6 A | 14.9A | Shielded | 4.29mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
MDH7045C-4R7NB=P3FIXED IND 4.7UH 3A 18 MOHM SMD |
2,851 | - |
|
数据表 |
MDH7045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 3 A | 4.2A | Shielded | 18mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
