固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQM31PN2R2MC0LFIXED IND 2.2UH 900MA 313MOHM SM |
0 | - |
|
数据表 |
LQM31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 2.2 µH | ±20% | 900 mA | - | Shielded | 313mOhm Max | - | 50MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.037" (0.95mm) |
|
|
LQM31PNR47MC0LFIXED IND 470NH 1.3A 107MOHM SMD |
0 | - |
|
数据表 |
LQM31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 470 nH | ±20% | 1.3 A | - | Shielded | 107mOhm Max | - | 90MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.037" (0.95mm) |
.jpg)
|
252012CDMCDS-100MCFIXED IND 10UH 900MA 390MOHM SMD |
0 | - |
|
数据表 |
252012CDMC/DS | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 900 mA | 1A | Shielded | 390mOhm | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
252012CDMCDS-1R0MCFIXED IND 1UH 3.1A 35 MOHM SMD |
0 | - |
|
数据表 |
252012CDMC/DS | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±20% | 3.1 A | 3.4A | Shielded | 35mOhm | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
252012CDMCDS-1R5MCFIXED IND 1.5UH 2.5A 55 MOHM SMD |
0 | - |
|
数据表 |
252012CDMC/DS | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | ±20% | 2.5 A | 2.9A | Shielded | 55mOhm | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
252012CDMCDS-3R3MCFIXED IND 3.3UH 1.5A 105MOHM SMD |
0 | - |
|
数据表 |
252012CDMC/DS | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±20% | 1.5 A | 2A | Shielded | 105mOhm | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
252012CDMCDS-4R7MCFIXED IND 4.7UH 1.4A 150MOHM SMD |
0 | - |
|
数据表 |
252012CDMC/DS | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±20% | 1.4 A | 1.6A | Shielded | 150mOhm | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
252012CDMCDS-5R6MCFIXED IND 5.6UH 1.3A 200MOHM SMD |
0 | - |
|
数据表 |
252012CDMC/DS | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 5.6 µH | ±20% | 1.3 A | 1.3A | Shielded | 200mOhm | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
252012CDMCDS-6R8MCFIXED IND 6.8UH 1.1A 300MOHM SMD |
0 | - |
|
数据表 |
252012CDMC/DS | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±20% | 1.1 A | 1.1A | Shielded | 300mOhm | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
ELG-TEA1R0NAFIXED IND 1UH 1A 150 MOHM SMD |
0 | - |
|
数据表 |
ELGTEA | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1 µH | ±30% | 1 A | - | Shielded | 150mOhm Max | - | 80MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|

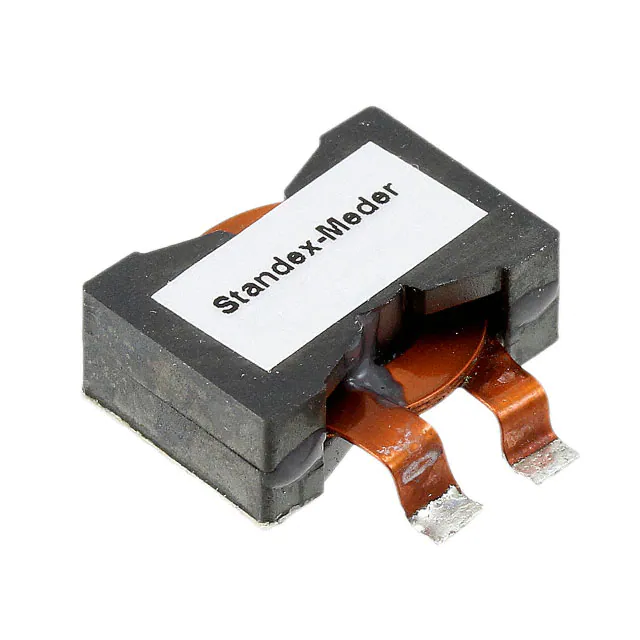

PQ2007-2R2-25-GFIXED IND 2.2UH 25A 3.5 MOHM SMD |
0 | - |
|
数据表 |
PQ | Nonstandard | Bulk | Obsolete | Planar | Ferrite | 2.2 µH | - | 25 A | 32A | Unshielded | 3.5mOhm | - | - | - | -30°C ~ 125°C | - | - | Surface Mount | - | 0.837" L x 0.551" W (21.25mm x 14.00mm) | 0.286" (7.26mm) |
|

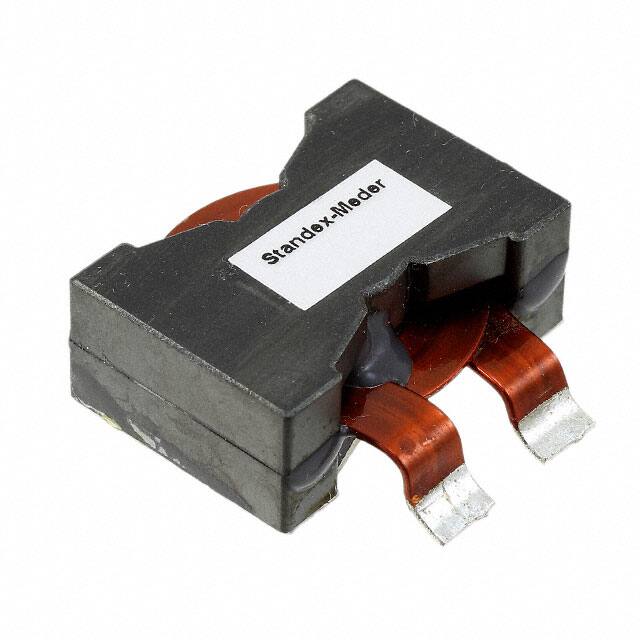

PQ3213-0R9-70-GFIXED IND 900NH 70A 1 MOHM SMD |
0 | - |
|
数据表 |
PQ | Nonstandard | Bulk | Obsolete | Planar | Ferrite | 900 nH | - | 70 A | 110A | Unshielded | 1mOhm | - | - | - | -30°C ~ 125°C | - | - | Surface Mount | - | 1.043" L x 0.748" W (26.50mm x 19.00mm) | 0.520" (13.20mm) |
|
PQ3218-3R3-90-TFIXED IND 3.3UH 70A 1.1 MOHM TH |
0 | - |
|
数据表 |
PQ | Nonstandard | Bulk | Active | Planar | Ferrite | 3.3 µH | - | 70 A | 80A | Unshielded | 1.1mOhm | - | - | - | -30°C ~ 125°C | - | - | Through Hole | - | 1.260" L x 0.886" W (32.00mm x 22.50mm) | 0.728" (18.50mm) |
|

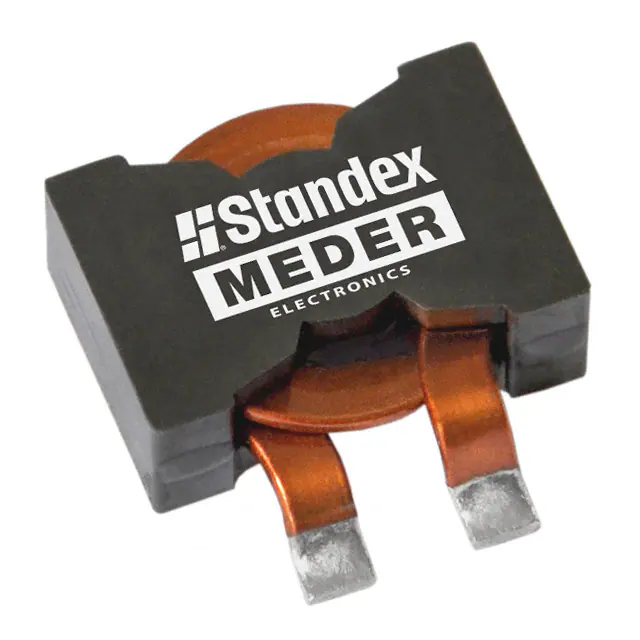

PQ2006-1R0-30-GFIXED IND 1UH 30A 1 MOHM SMD |
0 | - |
|
数据表 |
PQ | Nonstandard | Bulk | Obsolete | Planar | Ferrite | 1 µH | - | 30 A | 39A | Unshielded | 1mOhm | - | - | - | -30°C ~ 125°C | - | - | Surface Mount | - | 0.837" L x 0.551" W (21.25mm x 14.00mm) | 0.286" (7.26mm) |
|
PQ2613-1R0-80-GFIXED IND 1UH 80A 1.2 MOHM SMD |
0 | - |
|
数据表 |
PQ | Nonstandard | Bulk | Obsolete | Planar | Ferrite | 1 µH | - | 80 A | 120A | Unshielded | 1.2mOhm | - | - | - | -30°C ~ 125°C | - | - | Surface Mount | - | 1.043" L x 0.748" W (26.50mm x 19.00mm) | 0.520" (13.20mm) |
|
74479876147FIXED IND 470NH 2.1A 40 MOHM SMD |
0 | - |
|
- |
WE-PMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 470 nH | ±20% | 2.1 A | 2A | Unshielded | 40mOhm | 13 @ 1MHz | 120MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
74479876210FIXED IND 1UH 1.5A 70 MOHM SMD |
0 | - |
|
- |
WE-PMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1 µH | ±20% | 1.5 A | 1.5A | Unshielded | 70mOhm | 20 @ 1MHz | 80MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
2000-1R5-V-RCFIXED IND 1.5UH 18.7A 2 MOHM TH |
0 | - |
|
数据表 |
2000 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | - | 1.5 µH | ±20% | 18.7 A | - | Unshielded | 2mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | - |
|
|
2000-2R7-H-RCFIXED IND 2.7UH 14.7A 3 MOHM TH |
0 | - |
|
数据表 |
2000 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | - | 2.7 µH | ±20% | 14.7 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.680" Dia (17.27mm) | 0.410" (10.41mm) |
|
|
2000-R8-V-RCFIXED IND 800NH 22.1A 1.4MOHM TH |
0 | - |
|
数据表 |
2000 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | - | 800 nH | ±20% | 22.1 A | - | Unshielded | 1.4mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | - |
