直流直流转换器（DC DC Converters）
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

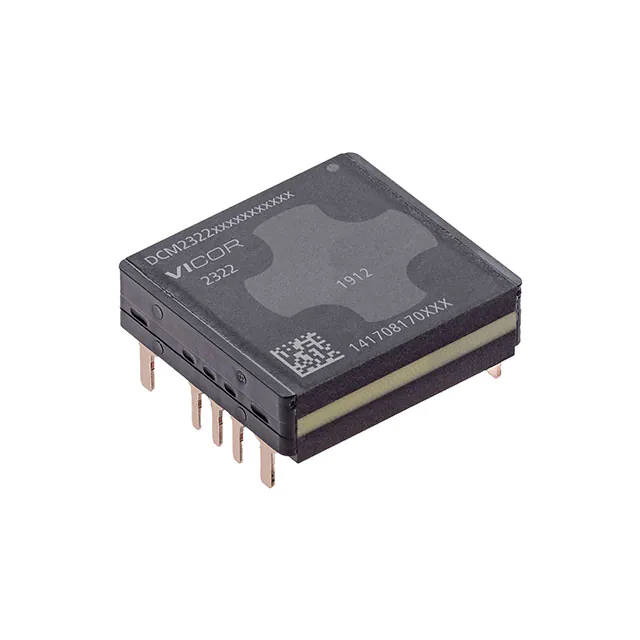

DCM2322T50T5360M60DC DC CONVERTER 48V 60W |
6 | - |
|
数据表 |
VI Chip® DCM® | 9-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 50V | 48V | - | - | - | 1.25A | 60 W | 3 kV | ITE (Commercial) | Adjustable Output | -55°C ~ 125°C | 93% | - | - | Through Hole | - | - | CE, cTUVus, cURus | - | |
|
V48C24C150BLDC DC CONVERTER 24V 150W |
17 | - |
|
数据表 |
MICRO (150W) | Quarter Brick | Tube | Active | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 6.25A | 150 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 88.5% | - | - | Through Hole | - | - | - | - | |
|
VHB200W-Q24-S28DC DC CONVERTER 28V 200W |
24 | - |
|
数据表 |
VHB200W (200W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 10V | 36V | 28V | - | - | - | 7.14A | 200 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 87% | - | - | Through Hole | Half Brick | Enable, Active High | EN, UL | 55024; 55032 Class A; 60950-1 | |
|
|
V28C36C100BLDC DC CONVERTER 36V 100W |
10 | - |
|
数据表 |
MICRO (100W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 9V | 36V | 36V | - | - | - | 2.78A | 100 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 80.9% | - | - | Through Hole | - | - | - | - | |
|
RP240H-4824SRW/PDC DC CONVERTER 24V 216W |
2 | - |
|
数据表 |
POWERLINE RP240-RW (240W) | Half Brick | Tray | Active | Isolated Module | 1 | 16.5V | 75V | 24V | - | - | - | 9A | 216 W | 2.25 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 115°C (With Derating) | 90% | - | - | Through Hole | Half Brick | - | - | - | |
|
|
V375C24C150BLDC DC CONVERTER 24V 150W |
13 | - |
|
数据表 |
MICRO (150W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 250V | 425V | 24V | - | - | - | 6.25A | 150 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 86.5% | - | - | Through Hole | - | - | - | - | |
|
|
DCM2322T50T1760M60DC DC CONVERTER 15V 60W |
16 | - |
|
数据表 |
VI Chip® DCM® | 9-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 50V | 15V | - | - | - | 4A | 60 W | 3 kV | ITE (Commercial) | Adjustable Output | -55°C ~ 125°C | 93% | - | - | Through Hole | - | - | CE, cTUVus, cURus | - | |
|
|
DCM2322T72S26A0M60DC DC CONVERTER 24V 100W |
6 | - |
|
数据表 |
VI Chip® DCM® | 9-DIP Module | Tray | Active | Isolated Module | 1 | 14V | 72V | 24V | - | - | - | 4.17A | 100 W | 3 kV | ITE (Commercial) | Adjustable Output | -55°C ~ 125°C | 93% | - | - | Through Hole | - | - | CE, cTUVus, cURus | - | |
|
|
DCM2322T72S13A0M60DC DC CONVERTER 12V 100W |
3 | - |
|
数据表 |
VI Chip® DCM® | 9-DIP Module | Tray | Active | Isolated Module | 1 | 14V | 72V | 12V | - | - | - | 8.33A | 100 W | 3 kV | ITE (Commercial) | Adjustable Output | -55°C ~ 125°C | 93% | - | - | Through Hole | - | - | CE, cTUVus, cURus | - | |
|
|
DCM2322T72S0650M60DC DC CONVERTER 5V 50W |
2 | - |
|
数据表 |
VI Chip® DCM® | 9-DIP Module | Tray | Active | Isolated Module | 1 | 14V | 72V | 5V | - | - | - | 10A | 50 W | 3 kV | ITE (Commercial) | Adjustable Output | -55°C ~ 125°C | 86.1% | - | - | Through Hole | - | - | CE | - | |
|
C15DC DC CONVERTER 1500V 1W |
24 | - |
|
数据表 |
XP EMCO - C (1W) | 5-DIP Module | Box | Active | High Voltage - Non-Isolated Module | 1 | 11.5V | 16V | 1500V | - | - | - | 670µA | 1 W | - | ITE (Commercial) | SCP | -10°C ~ 60°C | - | - | - | Through Hole | - | - | - | 62368-1 | |
|
|
C15NDC DC CONVERTER -1500V 1W |
18 | - |
|
数据表 |
XP EMCO - C (1W) | 5-DIP Module | Box | Active | High Voltage - Non-Isolated Module | 1 | 11.5V | 16V | -1500V | - | - | - | 670µA | 1 W | - | ITE (Commercial) | SCP | -10°C ~ 60°C | - | - | - | Through Hole | - | - | - | 62368-1 | |
|
HQA2W120W120V-N07-SDC DC CONVERTER 12V 120W |
14 | - |
|
数据表 |
HQA120 (120W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 9V | 40V | 12V | - | - | - | 10A | 120 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -55°C ~ 115°C | 90% | - | - | Through Hole | - | Enable, Active Low | CE | - | |
|
|
V110C12T100BGDC DC CONVERTER 12V 100W |
17 | - |
|
数据表 |
MICRO (100W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 66V | 154V | 12V | - | - | - | 8.33A | 100 W | 3 kV | ITE (Commercial) | OVP, UVLO | -40°C ~ 100°C | 87.2% | - | - | Through Hole | - | - | - | - | |
|
|
V300C28T150BLDC DC CONVERTER 28V 150W |
6 | - |
|
数据表 |
MICRO (150W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 180V | 375V | 28V | - | - | - | 5.36A | 150 W | 3 kV | ITE (Commercial) | OVP, UVLO | -40°C ~ 100°C | 86.5% | - | - | Through Hole | - | - | - | - | |
|
CA05N-5DC DC CONVERTER -500V 1W |
7 | - |
|
数据表 |
XP EMCO - CA (1W) | 8-DIP Module | Box | Active | High Voltage - Non-Isolated Module | 1 | 4.75V | 5.25V | -500V | - | - | - | 2mA | 1 W | - | ITE (Commercial) | SCP | -10°C ~ 50°C | - | - | - | Through Hole | - | - | - | 62368-1 | |
|
|
CA05PDC DC CONVERTER 500V 1W |
7 | - |
|
数据表 |
XP EMCO - CA (1W) | 8-DIP Module | Box | Active | High Voltage - Non-Isolated Module | 1 | 11.5V | 15.5V | 500V | - | - | - | 2mA | 1 W | - | ITE (Commercial) | SCP | -10°C ~ 50°C | - | - | - | Through Hole | - | - | - | 62368-1 | |
|
V24B28C200BLDC DC CONVERTER 28V 200W |
17 | - |
|
数据表 |
MINI (200W) | Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 28V | - | - | - | 7.14A | 200 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 87% | - | - | Surface Mount | - | - | - | - | |
|
|
CA12N-5DC DC CONVERTER -1250V 1W |
21 | - |
|
数据表 |
XP EMCO - CA (1W) | 8-DIP Module | Box | Active | High Voltage - Non-Isolated Module | 1 | 4.75V | 5.25V | -1250V | - | - | - | 800µA | 1 W | - | ITE (Commercial) | SCP | -10°C ~ 50°C | - | - | - | Through Hole | - | - | - | 62368-1 | |
|
|
V150C12C150BLDC DC CONVERTER 12V 150W |
2 | - |
|
数据表 |
MICRO (150W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 100V | 200V | 12V | - | - | - | 12.5A | 150 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 86.7% | - | - | Through Hole | - | - | - | - |
