直流直流转换器（DC DC Converters）
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RPA150E-4824SEW/PDC DC CONVERTER 24V 144W |
5 | - |
|
数据表 |
RPA150E (150W) | Eighth Brick | Box | Active | Isolated Module | 1 | 9V | 60V | 24V | - | - | - | 6A | 144 W | 3 kV | ITE (Commercial) | Baseplate | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | Eighth Brick | Enable, Active High | cURus | 62368-1 | |
|

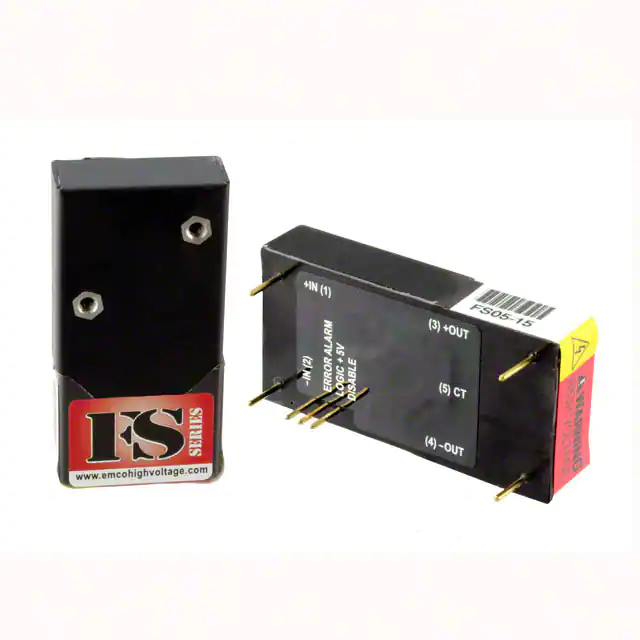

FS02-12DC DC CONVERTER 200V 10W |
14 | - |
|
数据表 |
XP EMCO - FS (10W) | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 12V | 200V | - | - | - | 50mA | 10 W | 2.5 kV | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | 85% | - | - | Through Hole | - | - | - | - | |
|
HQA2W085W120V-007-SDC DC CONVERTER 12V 85W |
13 | - |
|
数据表 |
HQA85 (85W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 9V | 40V | 12V | - | - | - | 7.1A | 85 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 115°C | 90% | - | - | Through Hole | - | Enable, Active Low | CE | - | |
|

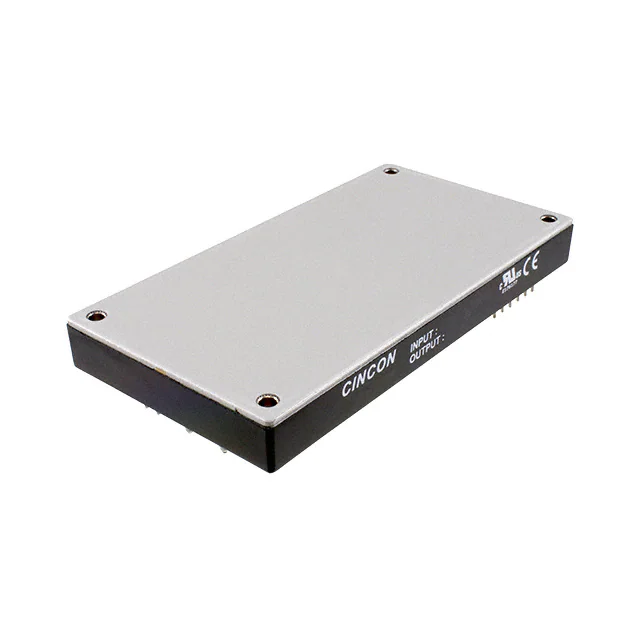

CFB600-24S28DC DC CONVERTER 28V 602W |
12 | - |
|
数据表 |
CFB600 (600W) | Full Brick | Box | Active | Isolated Module | 1 | 18V | 36V | 28V | - | - | - | 21.5A | 602 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 90% | - | - | Through Hole | Full Brick | Enable, Active Low | CE, cURus | 60950-1 | |
|

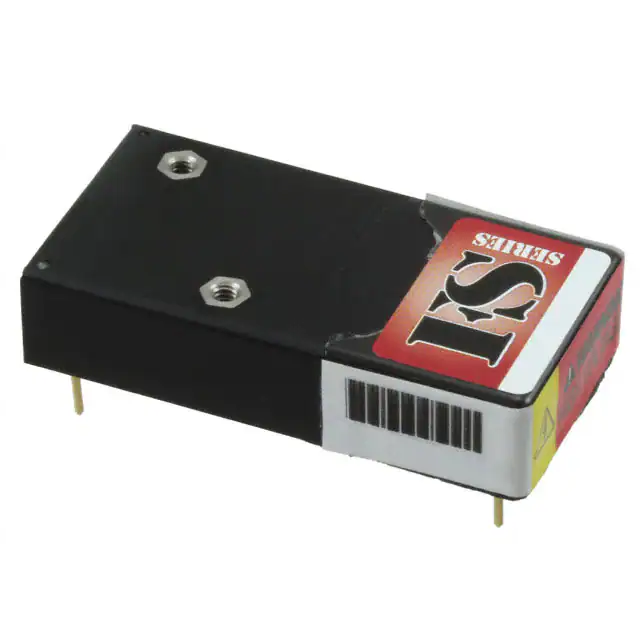

FS05CT-12DC DC CONVERTER +/-250V 10W |
9 | - |
|
数据表 |
XP EMCO - FS (10W) | 8-DIP Module | Box | Active | High Voltage - Isolated Module | 2 | 0.7V | 12V | 250V | -250V | - | - | 20mA, 20mA | 10 W | 2.5 kV | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | 85% | - | - | Through Hole | - | - | - | - | |
|
MHV12-1.5K1300PDC DC CONVERTER 1500V 2W |
5 | - |
|
数据表 |
MHV | 7-SIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 10.8V | 16.5V | 1500V | - | - | - | 1.3mA | 2 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -10°C ~ 60°C (With Derating) | - | - | - | Through Hole | - | Enable, Active High | cURus | - | |
|
DCM3623TA5N13B4T70DC DC CONVERTER 12V 240W |
19 | - |
|
数据表 |
VI Chip® DCM® (240W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 43V | 154V | 12V | - | - | - | 20A | 240 W | 3 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 92.5% | - | - | Through Hole | - | - | - | - | |
|
BCM380P475T800A30DC DC CONVERTER 47.5V 800W |
25 | - |
|
数据表 |
VI Chip® BCM® (800W) | 9-DIP Module | Tray | Active | Bus Converter Module | 1 | 260V | 410V | 47.5V | - | - | - | 16A | 800 W | 4.242 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 97.5% | - | - | Through Hole | - | - | - | - | |
|
Q20-5DC DC CONVERTER 2000V 500MW |
9 | - |
|
数据表 |
XP EMCO - Q (0.5W) | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 5V | 2000V | - | - | - | 250µA | 500 mW | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 70°C | - | - | - | Through Hole | - | - | - | 62368-1 | |
|
|
DCM3623TA5N53B4T00DC DC CONVERTER 48V 240W |
15 | - |
|
数据表 |
VI Chip® DCM® (240W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 43V | 154V | 48V | - | - | - | 5A | 240 W | 3 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 90.7% | - | - | Through Hole | - | - | - | - | |
|
E30DC DC CONVERTER 3000V 3W |
25 | - |
|
数据表 |
XP EMCO - E (3W) | 5-DIP Module | Bulk | Active | High Voltage - Isolated Module | 1 | 0.7V | 15V | 3000V | - | - | - | 1mA | 3 W | 3.5 kV | ITE (Commercial) | Proportional Output | -10°C ~ 60°C | - | - | - | Through Hole | - | - | - | - | |
|
TEP 160-2412WIRDC DC CONVERTER 12V 144W |
11 | - |
|
数据表 |
TEP 160WIR (196W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 12A | 144 W | 2.25 kV | ITE (Commercial), Railway | Remote On/Off, OTP, OVP, SCP, UVLO | -40°C ~ 75°C | 90% | - | - | Through Hole | - | - | - | - | |
|
CFB800-24S28DC/DC CONVERTER |
17 | - |
|
数据表 |
CFB800 (800W) | Full Brick | Box | Active | Isolated Module | 1 | 18V | 36V | 28V | - | - | - | 28.5A | 800 W | 1.5 kV | ITE (Commercial) | Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 100°C (With Derating) | 90% | - | - | Through Hole | Full Brick | Enable, Active Low | CE | 62368-1 | |
|
|
DCM3623T50T31A6T00DC DC CONVERTER 28V 160W |
21 | - |
|
数据表 |
VI Chip® DCM® (160W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 50V | 28V | - | - | - | 5.8A | 160 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C (With Derating) | 91.6% | - | - | Through Hole | - | - | - | - | |
|
|
DCM3623T50T31A6T70DC DC CONVERTER 28V 162W |
4 | - |
|
数据表 |
VI Chip® DCM® (160W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 50V | 28V | - | - | - | 5.8A | 162 W | 2.25 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 91.8% | - | - | Through Hole | - | - | - | - | |
|
|
BCM6123TD1E5126T00DC DC CONVERTER 47.5V |
8 | - |
|
数据表 |
VI Chip® BCM® | 9-DIP Module | Tray | Active | Isolated Module | 1 | 260V | 410V | 47.5V | - | - | - | 25.7A | - | 4.242 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 97.7% | - | - | Through Hole | - | - | - | - | |
|
|
DCM3623T50T13A6T00DC DC CONVERTER 12V 160W |
5 | - |
|
数据表 |
VI Chip® DCM® (160W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 50V | 12V | - | - | - | 13.4A | 160 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C (With Derating) | 91.4% | - | - | Through Hole | - | - | - | - | |
|
MPRM28AT360M120A00MIL PRM DC-DC CONVERTER, 50VIN 3 |
25 | - |
|
数据表 |
- | 56-DIP Module | Tray | Active | Pre-Regulator Module | 1 | 14V | 50V | 26 ~ 50V | - | - | - | 5.56A | 278 W | - | ITE (Commercial) | Adjustable Output, Heat Sink, Remote Sense, Standby Output | -55°C ~ 125°C (With Derating) | 95.5% | - | - | Through Hole | - | - | CE | - | |
|
CFB400W-24S48DC DC CONVERTER 48V 399W |
12 | - |
|
数据表 |
CFB400W (400W) | Full Brick | Box | Active | Isolated Module | 1 | 9V | 36V | 48V | - | - | - | 8.3A | 399 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C (With Derating) | 86.5% | - | - | Through Hole | Full Brick | Enable, Active Low | CE, cURus | 60950-1 | |
|
|
Q30-5DC DC CONVERTER 3000V 500MW |
9 | - |
|
数据表 |
XP EMCO - Q (0.5W) | 6-DIP Module, 5 Leads | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 5V | 3000V | - | - | - | 167µA | 500 mW | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 60°C | - | - | - | Through Hole | - | - | - | 62368-1 |
