直流直流转换器（DC DC Converters）
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

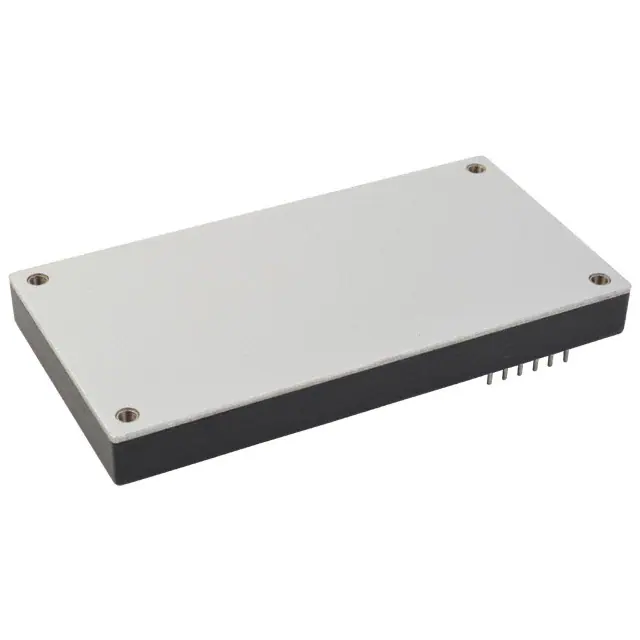

VFB600-D24-S28DC DC CONVERTER 28V 600W |
16 | - |
|
数据表 |
VFB600 (600W) | Full Brick | Box | Active | Isolated Module | 1 | 18V | 36V | 28V | - | - | - | 21.5A | 600 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 90% | - | - | Through Hole | - | Enable, Active High | UL | 60950-1 | |
|
V24B48C200BLDC DC CONVERTER 48V 200W |
16 | - |
|
数据表 |
MINI (200W) | Module | Tray | Active | Isolated Module | 1 | 18V | 36V | 48V | - | - | - | 4.17A | 200 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 87.5% | - | - | Surface Mount | - | - | - | - | |
|
TEP 200-2412WIRDC DC CONVERTER 12V 180W |
17 | - |
|
数据表 |
TEP 200WIR (240W) | Half Brick | Box | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 15A | 180 W | 2.25 kV | ITE (Commercial), Railway | Remote On/Off, OTP, OVP, SCP, UVLO | -40°C ~ 75°C | 89% | - | - | Through Hole | Half Brick | - | - | - | |
|
DCM3623T50M53C2T00DC DC CONVERTER 48V 320W |
23 | - |
|
数据表 |
VI Chip® DCM® (320W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 16V | 50V | 48V | - | - | - | 6.67A | 320 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C (With Derating) | 92.6% | - | - | Through Hole | - | - | - | - | |
|
DCM4623TD2H31E0T00DC DC CONVERTER 28V 500.1W |
4 | - |
|
数据表 |
VI Chip® DCM® (500W) | 9-DIP Module | Bulk | Active | Isolated Module | 1 | 200V | 420V | 28V | - | - | - | 17.86A | 500.1 W | 4.242 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 93.6% | - | - | Through Hole | - | - | - | - | |
|
|
DCM3623T50M13C2T00DC DC CONVERTER 12V 320W |
23 | - |
|
数据表 |
VI Chip® DCM® (320W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 16V | 50V | 12V | - | - | - | 26.67A | 320 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C (With Derating) | 92.9% | - | - | Through Hole | - | - | - | - | |
|
|
DCM4623TD2H53E0T00DC DC CONVERTER 48V 504W |
25 | - |
|
数据表 |
VI Chip® DCM® (500W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 200V | 420V | 48V | - | - | - | 10.5A | 504 W | 4.242 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 93.3% | - | - | Through Hole | - | - | - | - | |
|
|
PH600A280-24DC DC CONVERTER 24V 600W |
8 | - |
|
数据表 |
PH-A (600W) | Half Brick | Box | Active | Isolated Module | 1 | 200V | 425V | 24V | - | - | - | 25A | 600 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 100°C | 93% | - | - | Through Hole | Half Brick | - | CE, cURus, DEMKO | - | |
|
|
V24B6V5C200BLDC DC CONVERTER 6.5V 200W |
10 | - |
|
数据表 |
MINI (200W) | 9-DIP Module | Bulk | Active | Isolated Module | 1 | 18V | 36V | 6.5V | - | - | - | 30.8A | 200 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 84.6% | - | - | Through Hole | - | - | - | - | |
|
Q50-5DC DC CONVERTER 5000V 500MW |
14 | - |
|
数据表 |
XP EMCO - Q (0.5W) | 6-DIP Module, 5 Leads | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 5V | 5000V | - | - | - | 100µA | 500 mW | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 60°C | - | - | - | Through Hole | - | - | - | 62368-1 | |
|
|
Q50N-5DC DC CONVERTER -5000V 500MW |
14 | - |
|
数据表 |
XP EMCO - Q (0.5W) | 6-DIP Module, 5 Leads | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 5V | -5000V | - | - | - | 100µA | 500 mW | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 60°C | - | - | - | Through Hole | - | - | - | 62368-1 | |
|
BCM6123TD0G5030T006123 ACM/BCM K=1/8 A TH |
13 | - |
|
数据表 |
BCM® | 9-DIP Module | Tray | Active | Bus Converter Module | 1 | 200V | 400V | 33.8V | - | - | - | 30A | - | 4.242 kV | ITE (Commercial) | Adjustable Output, PMBus™, Remote Sense | -40°C ~ 125°C | 97.9% | - | - | Through Hole | - | - | CE, cURus, cTUVus | 60950-1 | |
|
|
V300B24C250BLDC DC CONVERTER 24V 250W |
4 | - |
|
数据表 |
MINI (250W) | Module | Tray | Active | Isolated Module | 1 | 180V | 375V | 24V | - | - | - | 10.42A | 250 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 87.5% | - | - | Surface Mount | - | - | - | - | |
|
|
BCM6123TD1E13A3T01DC DC CONVERTER 12V 1600W |
23 | - |
|
数据表 |
VI Chip® BCM® | 24-DIP Module | Tray | Active | Bus Converter Module | 1 | 260V | 410V | 12V | - | - | - | 125A | 1600 W | 4.242 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 97.4% | - | - | Through Hole | - | - | - | - | |
|

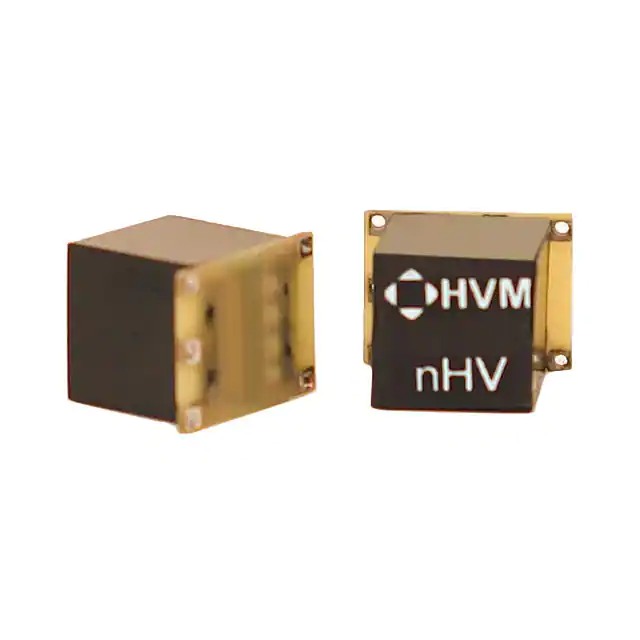

NHV0505NDC DC CONVERTER -500V 100MW |
15 | - |
|
数据表 |
NHV | 5-SMD Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 4.5V | 5.5V | -500V | - | - | - | 200µA | 100 mW | - | ITE (Commercial) | - | -55°C ~ 70°C | - | - | - | Surface Mount | - | - | - | - | |
|
|
DCM4623TD2N26C8T70DCM 24V 375W |
3 | - |
|
数据表 |
DCM™ | 9-DIP Module | Tray | Active | Isolated Module | 1 | 120V | 420V | 24V | - | - | - | 15.7A | 377 W | 4.242 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | 92.9% | - | - | Through Hole | - | - | CE, cTUVus, cURus | 60950-1 | |
|
|
V28B12C125BLDC DC CONVERTER 12V 125W |
25 | - |
|
数据表 |
MINI (125W) | Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 10.4A | 125 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 80.8% | - | - | Surface Mount | - | - | - | - | |
|
|
PVQ100W-O72-S12-DDC-DC ISOLATED, 100W, 12~160, 54 |
14 | - |
|
数据表 |
PVQ100W-D (100W) | 8-DIP Module | Tray | Active | Isolated Module | 1 | 12V | 160V | 12V | - | - | - | 8.3A | 100 W | 4.2 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | - | Enable, Active High | CE, cUL, EN, IEC, UKCA, UL | 62368-1 | |
|
|
V375B5C200BLDC DC CONVERTER 5V 200W |
11 | - |
|
数据表 |
MINI (200W) | Module | Tube | Active | Isolated Module | 1 | 250V | 425V | 5V | - | - | - | 40A | 200 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 83% | - | - | Surface Mount | - | - | - | - | |
|
PHV12-0.5K10000PDC DC CONVERTER 500V 5W |
23 | - |
|
数据表 |
PHV | 7-DIP Module, 6 Leads | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 10.8V | 16.5V | 500V | - | - | - | 10mA | 5 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -10°C ~ 50°C (With Derating) | 72% | - | - | Through Hole | - | Enable, Active High | - | - |
