固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2311-H-RCFIXED IND 68UH 7.7A 30 MOHM TH |
221 | - |
|
数据表 |
2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 68 µH | ±15% | 7.7 A | - | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2315-H-RCFIXED IND 180UH 4.8A 78 MOHM TH |
160 | - |
|
数据表 |
2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 180 µH | ±15% | 4.8 A | - | Unshielded | 78mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|

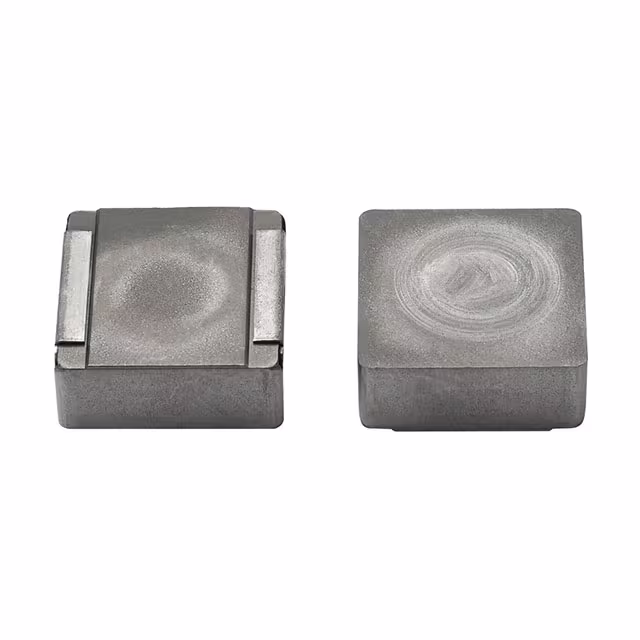

IHLP6767GZER220M1AIHLP-6767GZ-1A 22 20% ER E3 |
158 | - |
|
数据表 |
IHLP-6767GZ-1A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 22 µH | ±20% | 12 A | 9.5A | Shielded | 21mOhm Max | - | 4.3MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
HCM1A1707V2-150-RFIXED IND 15UH 11.8A 15.5MOHM SM |
129 | - |
|
数据表 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 15 µH | ±20% | 11.8 A | 11A | Shielded | 15.5mOhm Max | - | 5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
HCF1007-R68-RFIXED IND 680NH 26A 1.3 MOHM SMD |
999 | - |
|
数据表 |
HCF1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 26 A | 29A | Unshielded | 1.3mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.307" W (10.10mm x 7.80mm) | 0.262" (6.65mm) |
|
PM4344.333NLTFIXED IND 33UH 10.7A 44MOHM SMD |
141 | - |
|
数据表 |
PM4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 10.7 A | 15A | Shielded | 44mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
|
HCM1A1707V2-680-RFIXED IND 68UH 5A 60 MOHM SMD |
130 | - |
|
数据表 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 68 µH | ±20% | 5 A | 6.8A | Shielded | 60mOhm Max | - | 2MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
78439346082WE-XHMA SMT POWER INDUCTOR 6060; |
692 | - |
|
数据表 |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 8.2 µH | ±20% | 5.3 A | 9.3A | Shielded | 23mOhm | - | 19MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|
|
78439346056WE-XHMA SMT POWER INDUCTOR 6060; |
662 | - |
|
数据表 |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 5.6 µH | ±20% | 6.9 A | 12.1A | Shielded | 15mOhm | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|

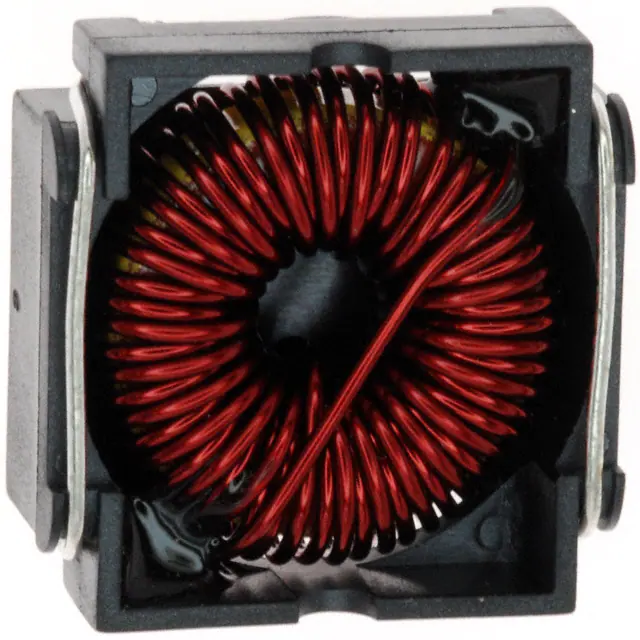

PE-54039SNLFIXED IND 53UH 3A 80 MOHM SMD |
994 | - |
|
数据表 |
- | Nonstandard | Bulk | Active | Toroidal | - | 53 µH | ±20% | 3 A | - | Shielded | 80mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
2200LL-820-H-RCFIXED IND 82UH 7.1A 24 MOHM TH |
580 | - |
|
数据表 |
2200LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 82 µH | ±15% | 7.1 A | - | Unshielded | 24mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.550" (13.97mm) |
|
PE-53831NLFIXED IND 53UH 1.87A 130 MOHM TH |
556 | - |
|
数据表 |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 53 µH | ±20% | 1.87 A | - | Shielded | 130mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.635" L x 0.635" W (16.13mm x 16.13mm) | 0.365" (9.27mm) |
|
SC30R22KTFIXED IND 220NH 1.12A 140MOHM TH |
4,034 | - |
|
数据表 |
SC30, Sigma Inductors | Axial | Cut Tape (CT) | Active | - | - | 220 nH | ±10% | 1.12 A | - | Shielded | 140mOhm Max | 33 @ 25MHz | 510MHz | - | -55°C ~ 100°C | 25 MHz | - | Through Hole | - | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) | - |
|
|
SC301R0KTFIXED IND 1UH 420MA 1 OHM TH |
1,638 | - |
|
数据表 |
SC30, Sigma Inductors | Axial | Cut Tape (CT) | Active | - | - | 1 µH | ±10% | 420 mA | - | Shielded | 1Ohm Max | 25 @ 25MHz | 230MHz | - | -55°C ~ 100°C | 25 MHz | - | Through Hole | - | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) | - |
|
|
SC302R7KTFIXED IND 2.7UH 565MA 550MOHM TH |
1,586 | - |
|
数据表 |
SC30, Sigma Inductors | Axial | Cut Tape (CT) | Active | - | - | 2.7 µH | ±10% | 565 mA | - | Shielded | 550mOhm Max | 37 @ 7.9MHz | 100MHz | - | -55°C ~ 100°C | 7.9 MHz | - | Through Hole | - | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) | - |
|
|
SC30R47KTFIXED IND 470NH 710MA 350MOHM TH |
930 | - |
|
数据表 |
SC30, Sigma Inductors | Axial | Cut Tape (CT) | Active | - | - | 470 nH | ±10% | 710 mA | - | Shielded | 350mOhm Max | 30 @ 25MHz | 330MHz | - | -55°C ~ 100°C | 25 MHz | - | Through Hole | - | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) | - |
|
IHLP6767GZER220M8AFIXED IND 22UH 11.7A 22.27 MOHM |
277 | - |
|
数据表 |
IHLP-6767GZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 11.7 A | 11A | Shielded | 22.27mOhm Max | - | 5.97MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
MPX1D1770L6R8FIXED IND 6.8UH 19.5A 6.8MOHM SM |
218 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 19.5 A | 26A | Shielded | 6.8mOhm Max | - | 8MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
|
4922R-06LFIXED IND 2.7UH 3.41A 34MOHM SMD |
5,550 | - |
|
数据表 |
4922R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±15% | 3.41 A | 3.41A | Unshielded | 34mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
4922R-15LFIXED IND 15UH 2.11A 89 MOHM SMD |
2,629 | - |
|
数据表 |
4922R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±15% | 2.11 A | 2.11A | Unshielded | 89mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
